Запчасти Case IH SDX30 (2.071.1) - WING LIFT HYDRAULICS (ASN CBJ0007001) (07) - HYDRAULICS

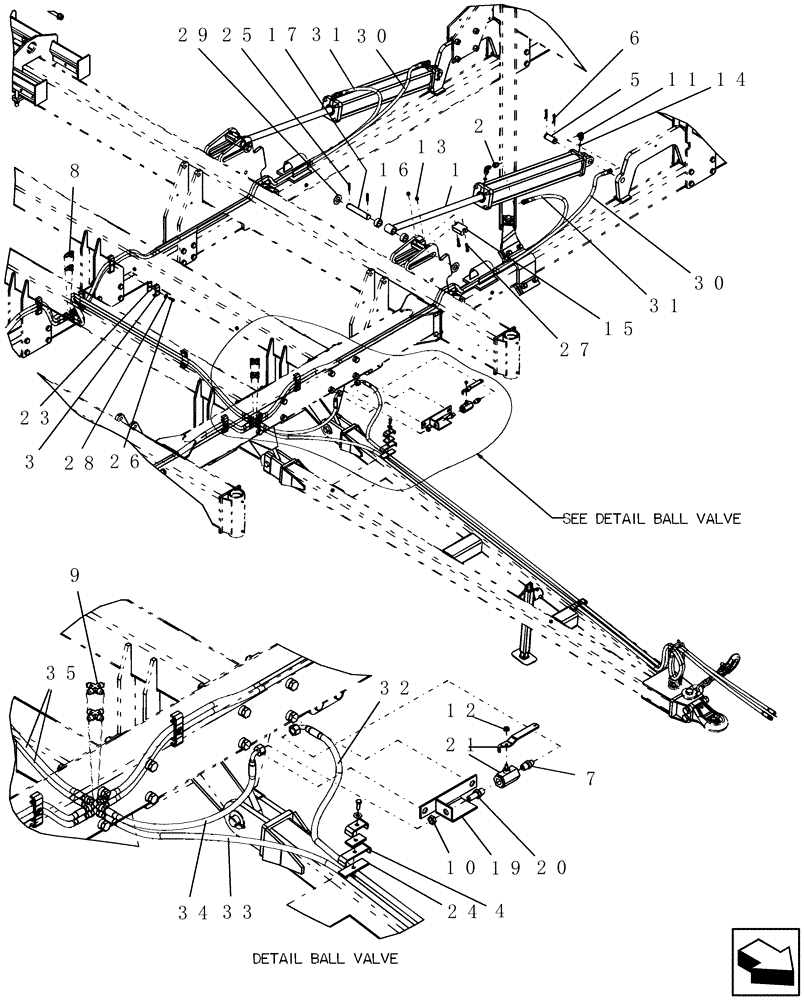

Схема запчастей Case IH SDX30 - (2.071.1) - WING LIFT HYDRAULICS (ASN CBJ0007001) (07) - HYDRAULICS
32
8
4
11
19
5
3
13
35
30
24
23
17
27
7
28
6
31
25
33
1
2
9
21
29
10
16
20
14
26
34
30
15
31
12

Артикул

Название

Примечание

Количество

1

350720A1

HYDRAULIC CYLINDER

kit 4" x 30" Iowa, Years: -31-OCT-02, Serial Range: -CBJ0008107

4шт.

Includes 1016796, 1019844, 218-5106, 350401A1, 1015478 and 6-70060

1шт.

1

87407430

SEAL KIT

hydraulic cylinder 4" x 30" Monarch, Start Year: 01-NOV-02, Start Serial: CBJ0008108

4шт.

Includes 86991622, 1019844, 218-5106, 350401A1, 1015478 and 6-70060, 3612

1шт.

2

1019844

FITTING

steel restrictor 1/2" MJ 1/2" FJ .09" orifice

4шт.

3

1024284

CLAMP

HOSE FORMED 2.88 X .94

8шт.

4

1024285

CLAMP

hose large

8шт.

5

1030839

PIN

cylinder 1-1/4" OD x 3" UL

4шт.

6

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3 mm x 49 mm

8шт.

7

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

9

86513043

4 WAY CONNECTION,3/4"-16, 37 Degree

2шт.

10

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

8шт.

12

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

13

86509499

JAM NUT,3/8"-16, G2

8шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

7шт.

15

312986A1

CUSHION

cylinder rubber

4шт.

16

312987A1

SPACER

33 mm id x 50.8 mm od x 22 mm

8шт.

17

312991A1

PIN

winglift

4шт.

19

349404A1

BRACKET

valve mount

1шт.

20

350170A1

FITTING

steel 1/2" mp 1/2" mj bulkhead

1шт.

21

350171A1

VALVE

hydraulic ball 1/2" fp 3000 psi

1шт.

23

350326A1

ISOLATOR

clamp, hose small

8шт.

24

350333A1

ISOLATOR

hose clamp large

8шт.

25

63172

PIN, ROLL

.312 x 2, Black, Heavy

8шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

27

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

8шт.

28

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

29

496-11131

WASHER,1 5/16" x 2 1/2" x .150", HDN

10шт.

30

350150A1

HYDRAULIC HOSE

3/8" x 144" fl

4шт.

31

350149A1

HYDRAULIC HOSE

3/8" x 126" fl

4шт.

32

312940A1

HYDRAULIC HOSE

3/8" x 200" fl

1шт.

33

312939A1

HYDRAULIC HOSE

3/8" x 215" fl

1шт.

34

350148A1

HYDRAULIC HOSE

3/8" x 26" fl

1шт.

35

350151A1

HYDRAULIC HOSE

3/8" x 90" fl

2шт.

100

1013122

CABLE TIE

CABLE STRAP 3/16" x 15 1/2" long, nylon

1шт.

Выбрано товаров: 37
