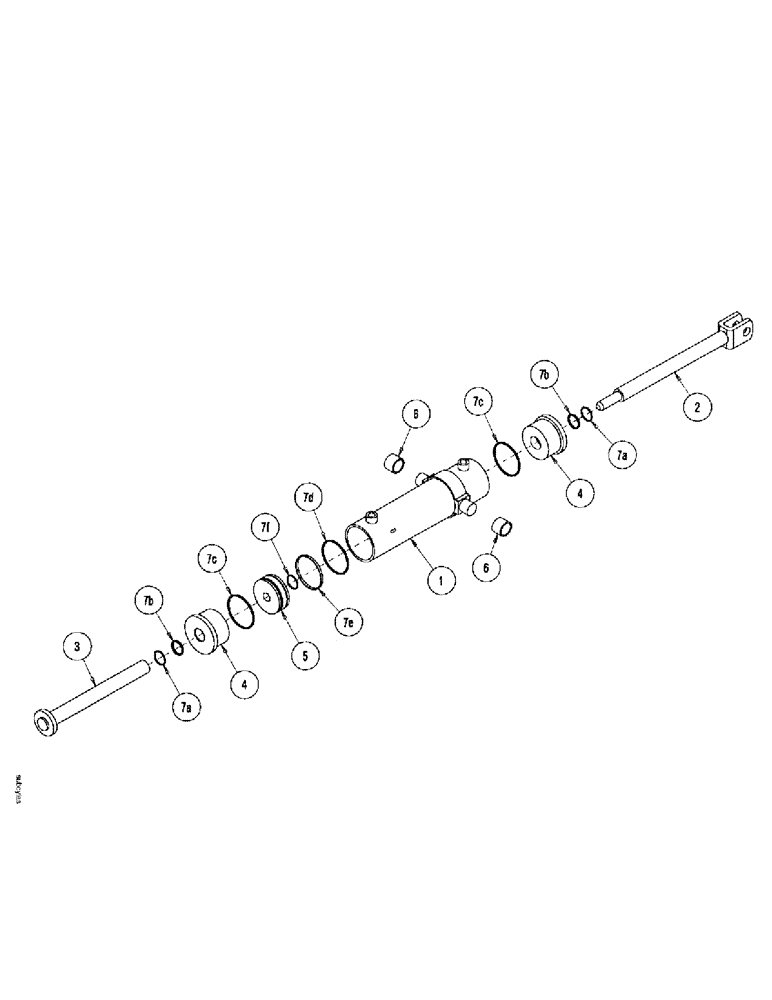

Запчасти Case IH SDX30 (2.030.1) - SUBBAR CYLINDER ASSEMBLY, 435893A1, 4.00 INCH BORE X 12 INCH STROKE (07) - HYDRAULICS

0

306296A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi c/w 1 pin ctd, Years: -30-NOV-04

6шт.

Includes pin 350108A1 and two clips 350109A1

1шт.

0

435893A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi, Years: -30-NOV-04

6шт.

No Pins Or Clips

1шт.

1

350107A1

HYD TUBE

Cylinder, 4" x 12" CTD

1шт.

2

350105A1

ROD

piston clevis

1шт.

3

350106A1

ROD

piston collar

1шт.

4

350103A1

PLATE

cylinder head

2шт.

5

350104A1

PISTON

cylinder

1шт.

6

350423A1

BUSHING

1 1/2" id x 1 3/4" od x 1 1/4" lg

2шт.

7

350102A1

SEAL KIT

4 x 12 cylinder CTD

1шт.

7a

NSS

NOT SOLD SEPARAT

SEAL, Wiper

2шт.

7b

NSS

NOT SOLD SEPARAT

SEAL, Rod

2шт.

7c

NSS

NOT SOLD SEPARAT

O-RING

2шт.

7d

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7e

NSS

NOT SOLD SEPARAT

RING, Wear

1шт.

7f

NSS

NOT SOLD SEPARAT

O-RING

1шт.
