Запчасти Case IH SDX30 (2.021.1) - SUBBAR HYDRAULICS (ASN CBJ0007001) (PART 2 OF 2) (07) - HYDRAULICS

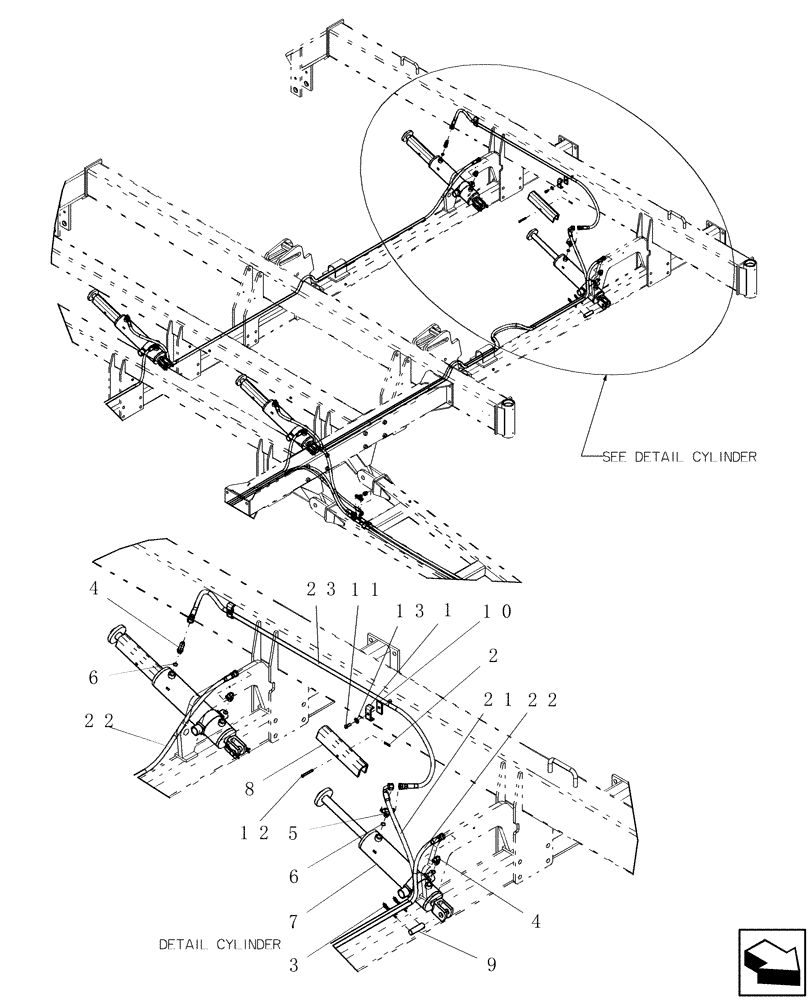

Схема запчастей Case IH SDX30 - (2.021.1) - SUBBAR HYDRAULICS (ASN CBJ0007001) (PART 2 OF 2) (07) - HYDRAULICS
9
3
22
6
13
12
7
6
2
4
1
10
5
21
23
22
11
4
8

Артикул

Название

Примечание

Количество

1

1024284

CLAMP

HOSE FORMED 2.88 X .94

6шт.

2

86624096

COTTER PIN,Int, 3/16 x .080"

6шт.

3

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

12шт.

4

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

11шт.

5

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

6

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

12шт.

7

306296A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi c/w 1 pin ctd, Years: -30-NOV-04

6шт.

Includes pin 350108A1 and two clips 350109A1

1шт.

7

435893A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi, Years: -30-NOV-04

6шт.

No Pins Or Clips

1шт.

7

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi, Start Year: 01-DEC-04

6шт.

8

306298A1

STOP

cylinder

6шт.

9

350108A1

PIN

cylinder - 1 x 2.41 ul

6шт.

10

350326A1

ISOLATOR

clamp, hose small

6шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

12

439-1544

HEADED PIN,5/16" x 2 3/4"

6шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

21

312935A1

HYDRAULIC HOSE

3/8" x 189" fl

2шт.

22

1032442

HYDRAULIC HOSE

3/8" x 168" fl

4шт.

23

312936A1

HYDRAULIC HOSE

3/8" x 100" fl

2шт.

100

1013122

CABLE TIE

CABLE STRAP 3/16" x 15 1/2" long, nylon

1шт.

Выбрано товаров: 21
