Запчасти Case IH SDX30 (2.011.1) - SUBBAR HYDRAULICS (ASN CBJ0007001) (PART 1 OF 2) (07) - HYDRAULICS

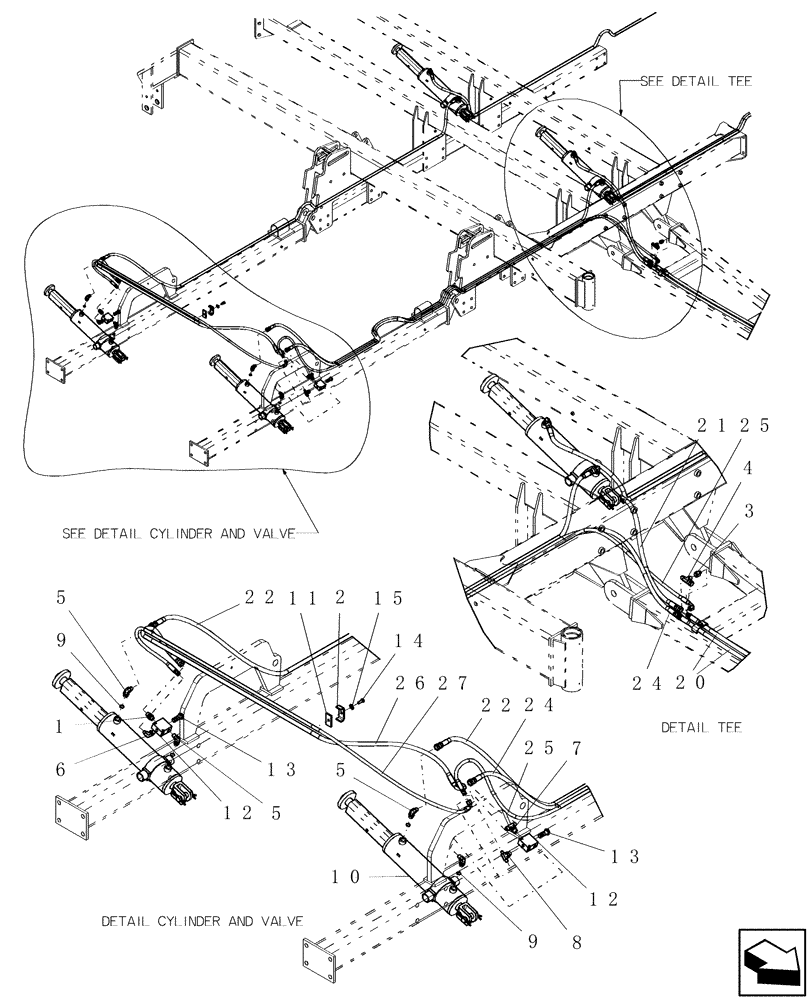

Схема запчастей Case IH SDX30 - (2.011.1) - SUBBAR HYDRAULICS (ASN CBJ0007001) (PART 1 OF 2) (07) - HYDRAULICS
11
24
8
20
7
22
5
5
5
13
21
12
27
12
9
26
9
24
10
15
1
6
3
13
25
4
14
2
25
22

Артикул

Название

Примечание

Количество

1

1261010C1

FITTING

stl union 3/4" mb 3/4" mb straight

1шт.

2

1024284

CLAMP

HOSE FORMED 2.88 X .94

6шт.

3

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

4

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

5

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

11шт.

6

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

7

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

8

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

12шт.

10

306296A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi c/w 1 pin ctd, Years: -30-NOV-04

6шт.

Includes pin 350108A1 and two clips 350109A1

1шт.

10

435893A1

HYDRAULIC CYLINDER

4" x 12" ctd 3000 psi, Years: -30-NOV-04

6шт.

No Pins Or Clips

1шт.

10

87406914

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

4" x 12" Monarch 3000 psi, Start Year: 01-DEC-04

6шт.

11

350326A1

ISOLATOR

clamp, hose small

6шт.

12

350552A1

VALVE, CHECK

block pilot operated

2шт.

13

350554A1

PILOT VALVE

cart hydraulic

2шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

20

312934A1

HYDRAULIC HOSE

3/8" x 190" fl

2шт.

21

312935A1

HYDRAULIC HOSE

3/8" x 189" fl

2шт.

22

1032442

HYDRAULIC HOSE

3/8" x 168" fl

4шт.

24

350558A1

HYDRAULIC HOSE

3/8" x 188" fl

1шт.

25

350556A1

HYDRAULIC HOSE

1/4" x 188" fl

1шт.

26

350559A1

HYDRAULIC HOSE

3/8" x 100" fl

1шт.

27

350555A1

HYDRAULIC HOSE

1/4" x 100" fl

1шт.

100

1013122

CABLE TIE

CABLE STRAP 3/16" x 15 1/2" long, nylon

1шт.

Выбрано товаров: 27
