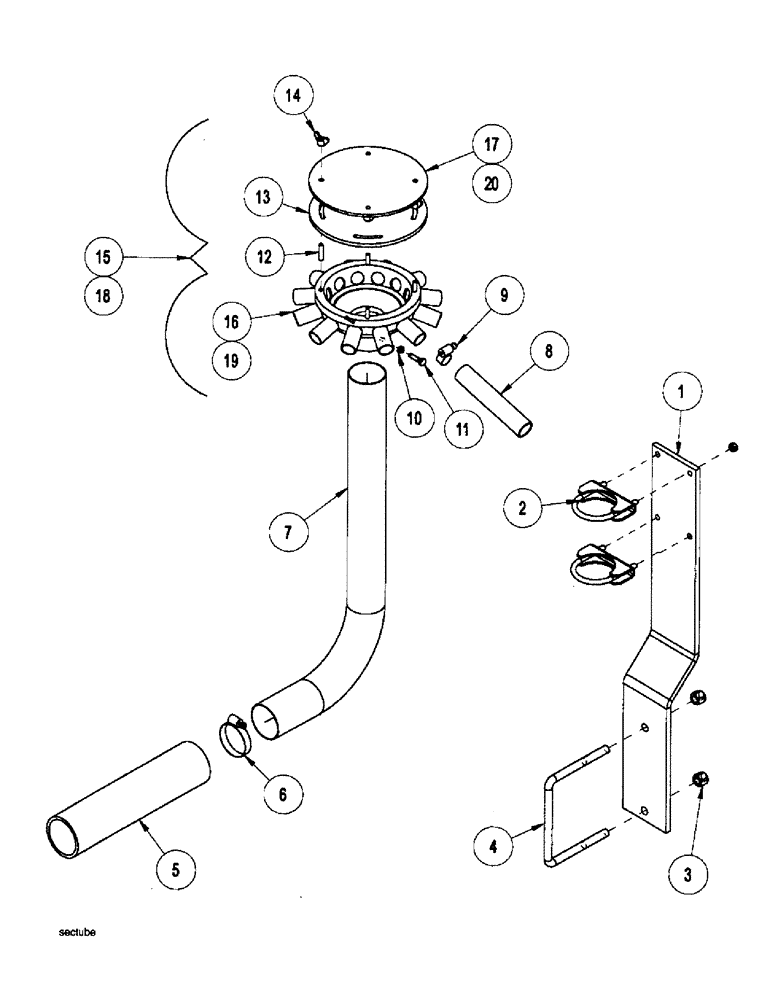

Запчасти Case IH SDX30 (6.070.1) - CONCORD AIR CART SECONDARY MANIFOLD Related Equipment

1

312992A1

BRACKET

secondary manifold

1шт.

2

1824

CLAMP

muffler, 2 1/2"

2шт.

3

87530607

NUT

1/2"-13, GB

2шт.

4

1030623

U-BOLT

us 1/2"-13 6 1/16" w x 5" d 2" thread

1шт.

5

1032279

HOSE,2.50" ID

PVC Black

1шт.

6

214-1444

HOSE CLAMP,58.6mm - 82.5mm

4шт.

7

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

secondary dimpled short

1шт.

8

86993485

HOSE,1.00" ID

Flex Black

1шт.

9

86536660

HOSE CLAMP,25mm - 44mm

1шт.

10

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

Part of Manifold Assembly P/N 1013197 and P/N 1013195

1шт.

11

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

Part of Manifold Assembly P/N 1013197 and P/N 1013195

1шт.

12

350205A1

SET SCREW

set 1/4"-20 x 1 1/4" Hex socket SS

4шт.

Part of Manifold Assembly P/N 1013197 and P/N 1013195

1шт.

13

312149A1

CUSHION

gasket, neoprene 7 1/2" od

1шт.

Part of Manifold Assembly P/N 1013197 and P/N 1013195

1шт.

14

86627130

WING NUT,1/4"-20

4шт.

Part of Manifold Assembly P/N 1013197 and P/N 1013195

1шт.

15

1013197

MANIFOLD

cover secondary 12 port 1"

1шт.

16

1013197

MANIFOLD

cover secondary 12 port 1"

1шт.

17

1013193

COVER

manifold second

1шт.

18

1013195

MANIFOLD

cover secondary 9 port 1"

1шт.

19

1013195

MANIFOLD

cover secondary 9 port 1"

1шт.

20

1013191

COVER

manifold 7 1/2" od x .179tk

1шт.
