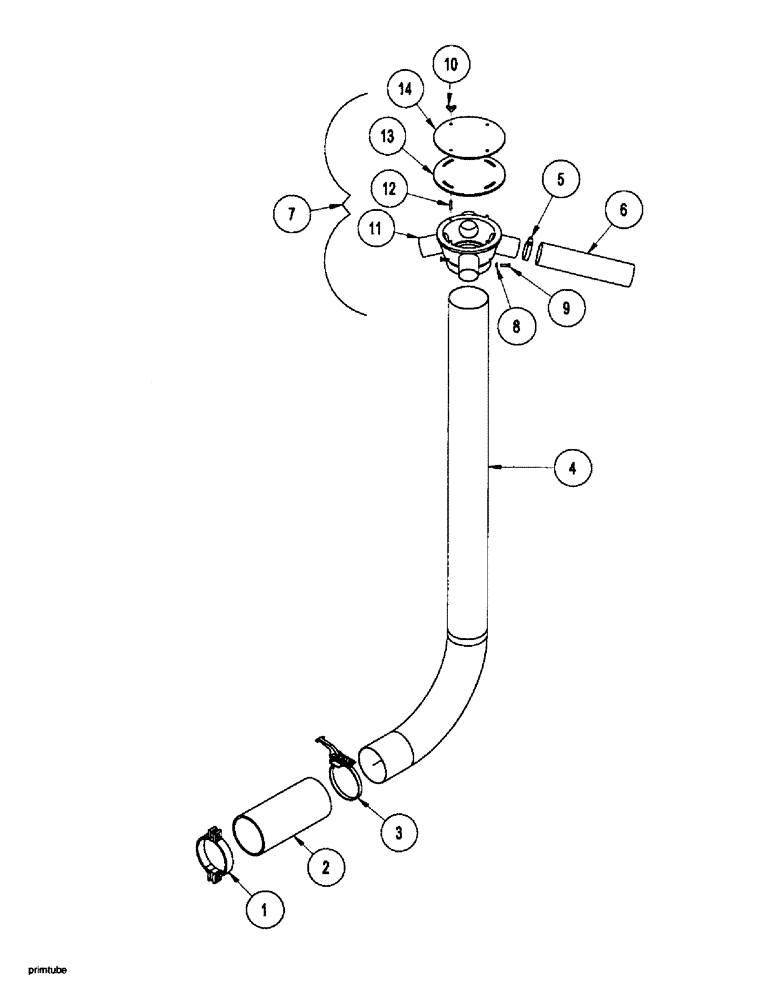

Запчасти Case IH SDX30 (6.060.1) - CONCORD AIR CART PRIMARY MANIFOLD Related Equipment

1

1026541

CLAMP,127mm - 146.05mm

hose #600 5" to 5-3/4" bolted

1шт.

2

1032274

HOSE,5.00" ID x 1200.00"

PVC Black Bulk 100' Roll

1шт.

3

1013259

CLAMP

1шт.

4

1033291

TUBE,127 mm Diameter, 1638.3 mm Length

primary manifold

1шт.

4

305969A1

TUBE,1638.3 mm Length

primary SS

1шт.

5

214-1444

HOSE CLAMP,58.6mm - 82.5mm

4шт.

6

1032279

HOSE,2.50" ID

PVC Black

1шт.

6

86993497

HOSE,2.50" ID

bulk roll

1шт.

7

1012427

MANIFOLD

cover primary 4 port 2 1/2"

1шт.

8

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

9

86637935

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

10

86627130

WING NUT,1/4"-20

4шт.

11

1012427

MANIFOLD

cover primary 4 port 2 1/2"

1шт.

12

350205A1

SET SCREW

set 1/4"-20 x 1 1/4" Hex socket SS

4шт.

13

312960A1

CUSHION

gasket neoprene 9" od

1шт.

14

1013039

COVER

manifold primary 9" od

1шт.
