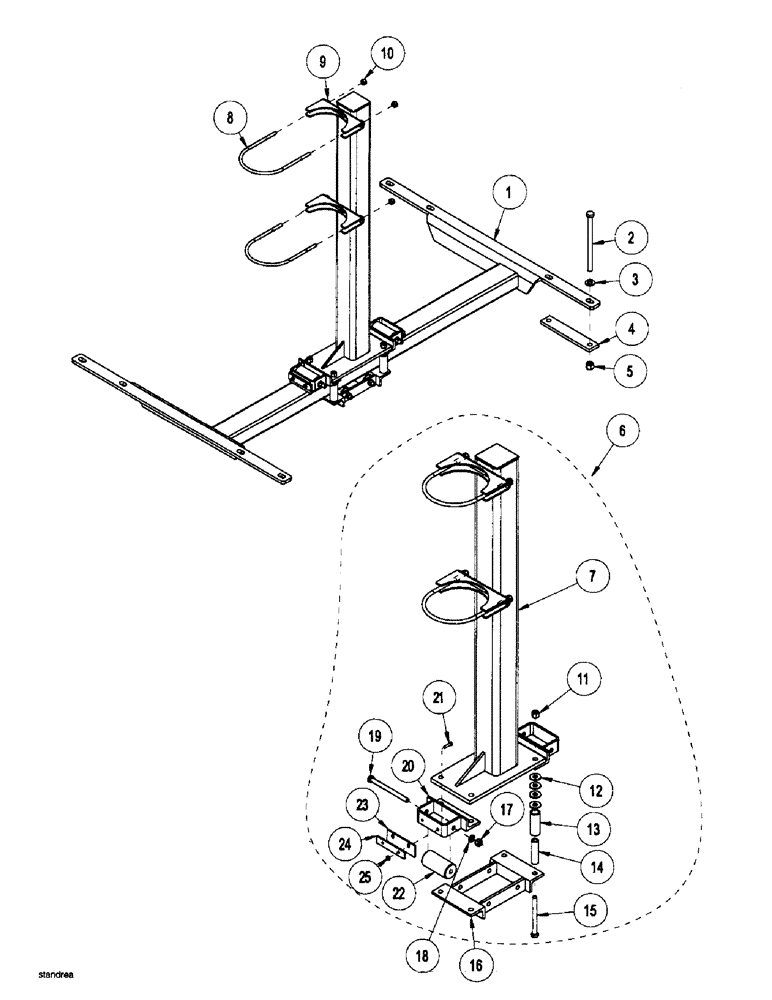

Запчасти Case IH SDX30 (6.050.1) - CONCORD AIR CART REAR TOW PRIMARY MANIFOLD STANDS Related Equipment

1

312990A1

MOUNTING PARTS

PRIMARY RAIL

1шт.

2

86505997

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

8шт.

3

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.

4

1023957

LARGE PLATE

PLATE, LARGE backup

4шт.

5

87530607

NUT

1/2"-13, GB

8шт.

6

290107A1

STAND

manifold primary roller

1шт.

7

290088A1

STAND

MANIFOLD PRIMARY

1шт.

8

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

13

1030354

TUBE,0.645" ID, 0.875" OD

tube

4шт.

14

1030355

SPACER

tube

4шт.

15

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

4шт.

16

1030361

MOUNTING PARTS

lower

1шт.

17

9628503

NUT,3/8"-16, G5

4шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

19

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

20

1030360

MOUNTING PARTS

upper

2шт.

21

86625179

SCREW,Hex, #10 - 24 x 3/4"

4шт.

22

1030356

ROLLER

Nylatron

4шт.

23

1030386

WIPER

RUBBER

2шт.

24

1030385

BAR

back

2шт.

25

87304

NUT,#10-24

4шт.
