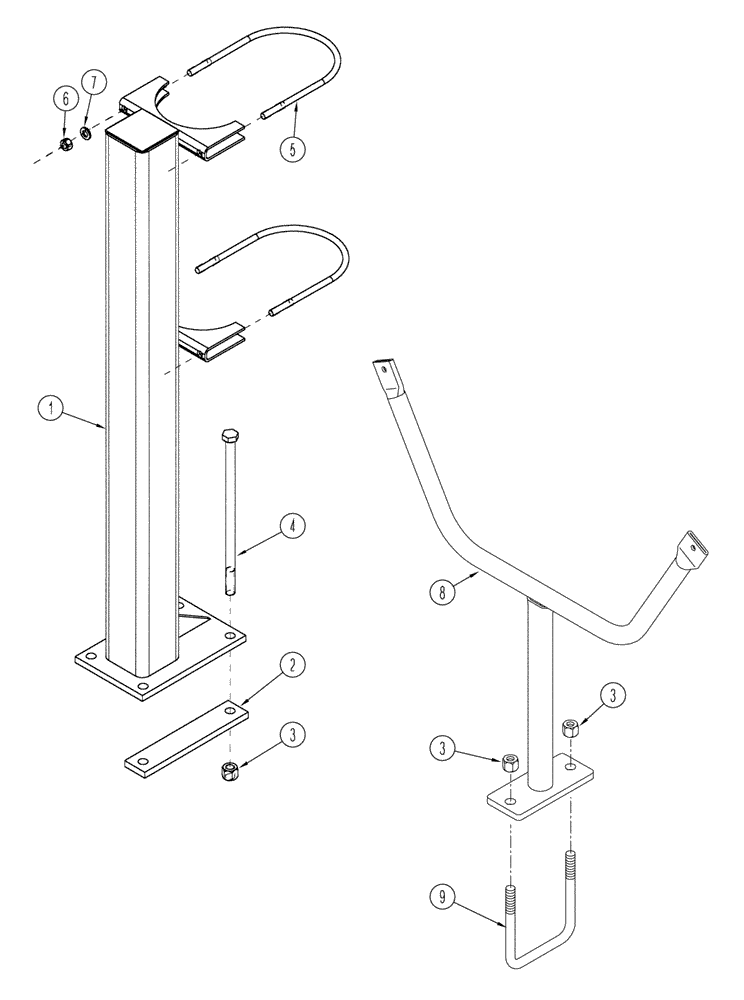

Запчасти Case IH SDX30 (6.040.1) - CONCORD AIR CART FRONT TOW PRIMARY MANIFOLD STANDS Related Equipment

1

312993A1

STAND

manifold primary

1шт.

2

1023957

LARGE PLATE

PLATE, LARGE backup

2шт.

3

87530607

NUT

1/2"-13, GB

6шт.

4

413-8160

BOLT,Hex, 1/2" - 13 x 10", Gr 5

4шт.

5

1033298

U-BOLT

UR .375 5.188W 7.313D UNC YZD 1.5'' THREAD

2шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

8

350342A1

CRADLE

hose assembly

1шт.

9

1023564

U-BOLT

us 1/2"-13 4 1/32" w 5" d -G5 1" thread

1шт.
