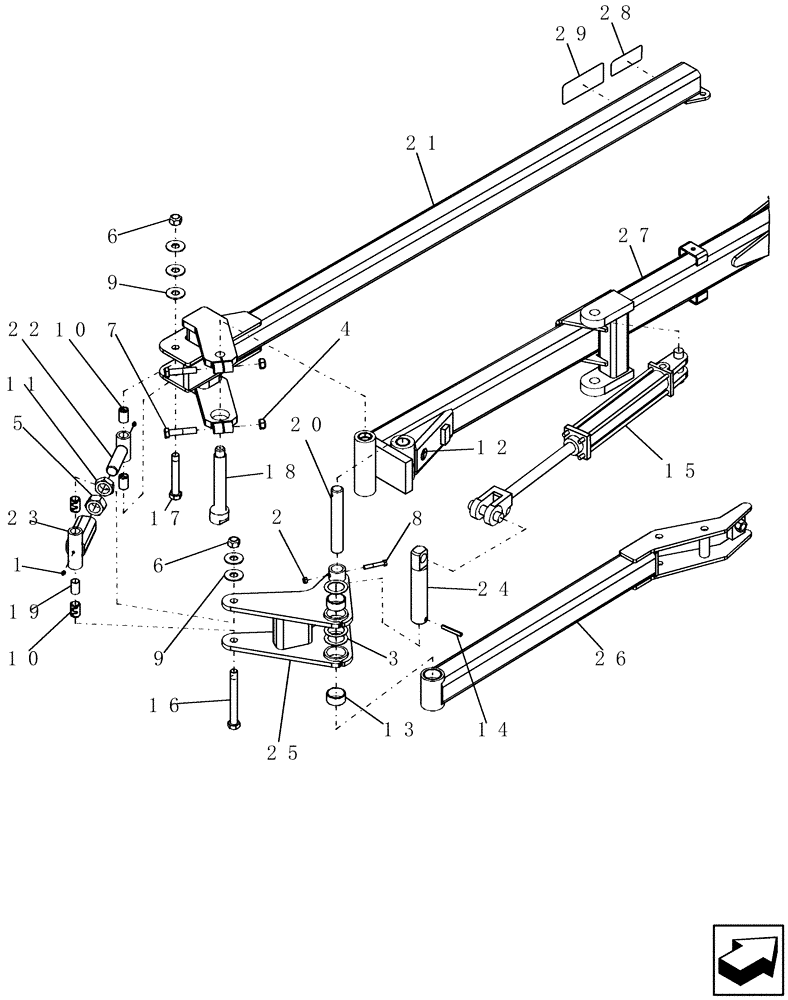

Запчасти Case IH SDX30 (5.030.1) - ENDMARKER OUTER BI-FOLD Options

1

87414

LUBE NIPPLE,1/4" - 28

3шт.

2

88902

NUT,3/8"-16

1шт.

3

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1 3/4" id 2 1/2" x 14 ga

3шт.

4

85700693

NUT,5/8" - 11, Gr C

2шт.

5

9849649

NUT,1 1/4"-7, G5

1шт.

6

280375

NUT,3/4"-10, GC

2шт.

7

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

8

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

9

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

5шт.

10

3929

BUSHING

tension 1" x 3/4" x 1 1/2" long

4шт.

11

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

1шт.

12

6566

DECAL

grease 50 hours

2шт.

13

6637

BUSHING

composite 2" x 1 3/4" x 1"

4шт.

14

87635861

ROLL PIN

3/8" x 2 1/2"

1шт.

15

22990

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 304.8mm Stroke

2" x 12" Monarch, 3000 psi, with pins

1шт.

Refer to 2" x 12" Cylinder Parts For Details

1шт.

16

NLS

NO LONGER SERVICED

3/4"-10 x 6 3/4"-G5 7/8" thread

1шт.

17

23583

BOLT

3/4"-10 x 5" -G5 5/8" thread

1шт.

18

87661322

PIN

offset

1шт.

19

SQ-803

SPACER

endmarker arm bushing

1шт.

20

TM-111

PIVOT PIN

1 1/4" x 8 1/8"

1шт.

21

TM-121

BOOM

primary swing, 15' endmarker

1шт.

22

TM-147

LINK BLOCK

lever male

1шт.

23

TM-151

LINK BLOCK

lever female adjuster

1шт.

24

87660736

PIN

44.45 mm x 161 mm

1шт.

25

87628408

LINK

lug endmarker

1шт.

26

TM-213

CONNECTING LINK

breakaway, outer - 15'

1шт.

27

TM-120V3

BOOM

main 15' endmarker

1шт.

28

18534389

DECAL

warning sign strike, Start Year: 01-AUG-08

1шт.

29

23251

DECAL

endmarker hazard, Start Year: 01-AUG-08

1шт.
