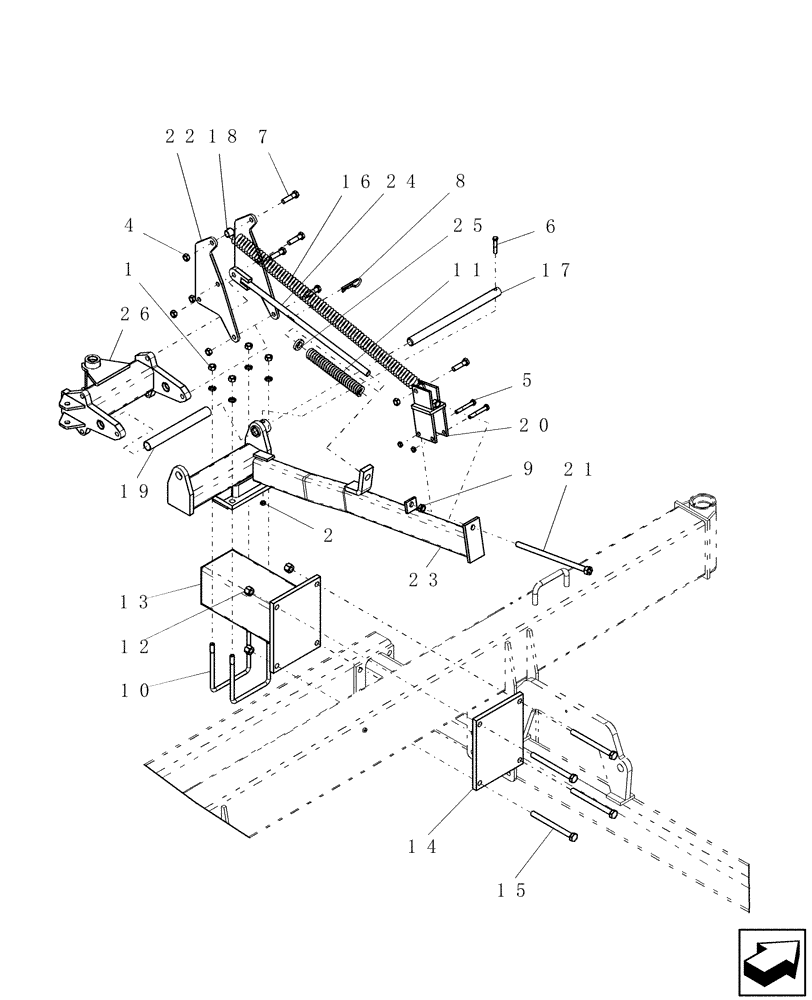

Запчасти Case IH SDX30 (5.010.1) - ENDMARKER MOUNTS Options

1

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

2

280980

NUT,7/16"-14, GC

3шт.

3

12034871

WASHER

5/8"

4шт.

4

85700693

NUT,5/8" - 11, Gr C

5шт.

5

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

6

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

1шт.

7

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5шт.

8

3682

HAIR PIN COTTER

.243" x 4"

1шт.

9

86632557

JAM NUT,Jam, 3/4"-10, G5

1шт.

10

9661

U-BOLT

us 5/8"-11 7 1/8"w 8 1/2"d -G5

2шт.

11

87505302

SPRING

C 5/16" wire x 1 5/8" od x 12 1/2" long

1шт.

12

232-14412

NUT,3/4"-10, GB

4шт.

13

425842A1

MOUNTING PARTS

endmarker

1шт.

14

425844A1

PLATE

bolting

1шт.

15

88945

BOLT,Hex, 3/4" - 10 x 8", Gr 5

, Years: -01-AUG-08

4шт.

15

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

, Start Year: 01-AUG-08

4шт.

16

87505301

TENSION SPRING

.406 x 2 3/8" x 28 1/2"

1шт.

17

87661321

PIN

31.75 mm x 458 mm

1шт.

18

87660735

SPACER

tube spring bias

2шт.

19

TM-132

SPACER

tube, horizontal pivot

1шт.

20

TM-157

BRACKET

tension spring

1шт.

21

TM-158

BOLT

3/4"-8 x 15", full thread

1шт.

22

TM-159

PLATE

spring mount

2шт.

23

TM-160

KNUCKLE

ASSY. saddle, bifold

1шт.

24

TM-165

LINK

compression

1шт.

25

TM-166

SPACER

cushion stop plate

1шт.

26

TM-167

BRACKET

main mount knuckle, bifold

1шт.
