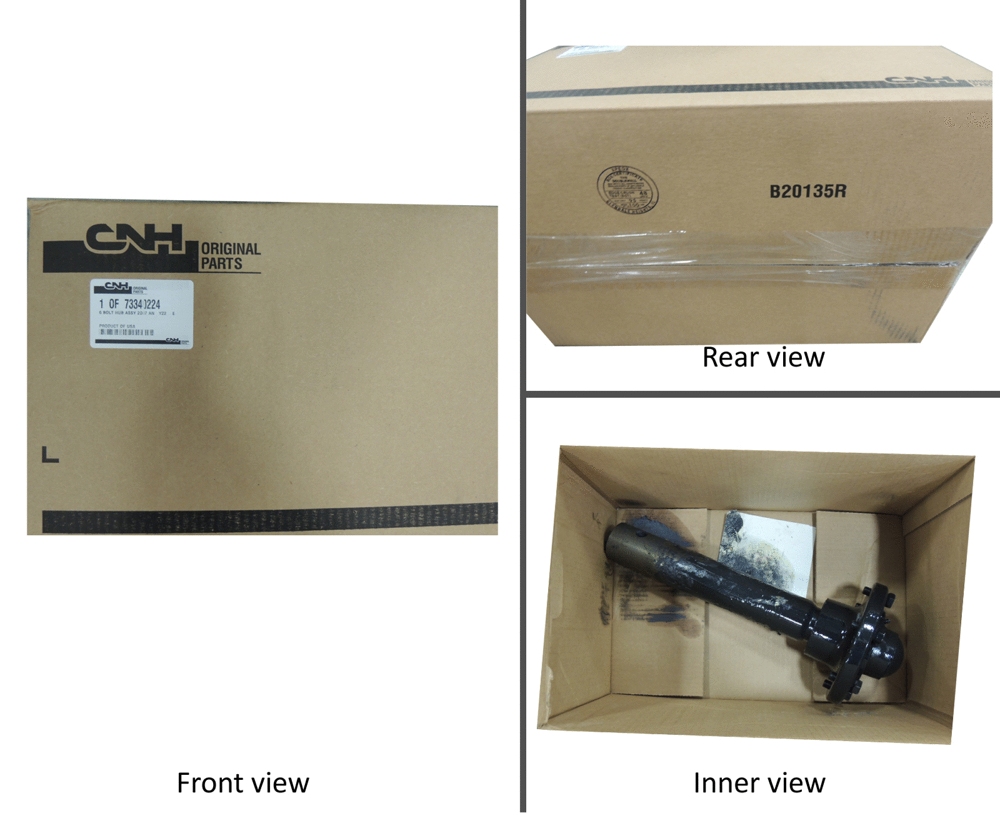

Запчасти Case IH NFX (18.10.02) - KIT, 6 BOLT HUB ASSY (18) - MISCELLANEOUS

1

73340224

KIT

6 BOLT HUB ASSY, INCLUDES 2 - 12

1шт.

2

36726

BEARING CONE,31.75mm ID x 16.76mm W

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

1шт.

4

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

4

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6шт.

5

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

5

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

1шт.

6

86523955

COTTER PIN,1/8" x 2"

1шт.

6

86523955

COTTER PIN,1/8" x 2"

1шт.

7

87426111

HUB

1шт.

7

87426111

HUB

1шт.

8

87517011

STUB AXLE/STEERING S

1шт.

8

87517011

STUB AXLE/STEERING S

1шт.

9

224066C1

HUB CAP

1шт.

9

224066C1

HUB CAP

1шт.

10

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

1шт.

10

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

1шт.

11

594702R91

SEAL

1шт.

11

594702R91

SEAL

1шт.

12

70120D

SLOTTED NUT,7/8"-14

1шт.

12

70120D

SLOTTED NUT,7/8"-14

1шт.
