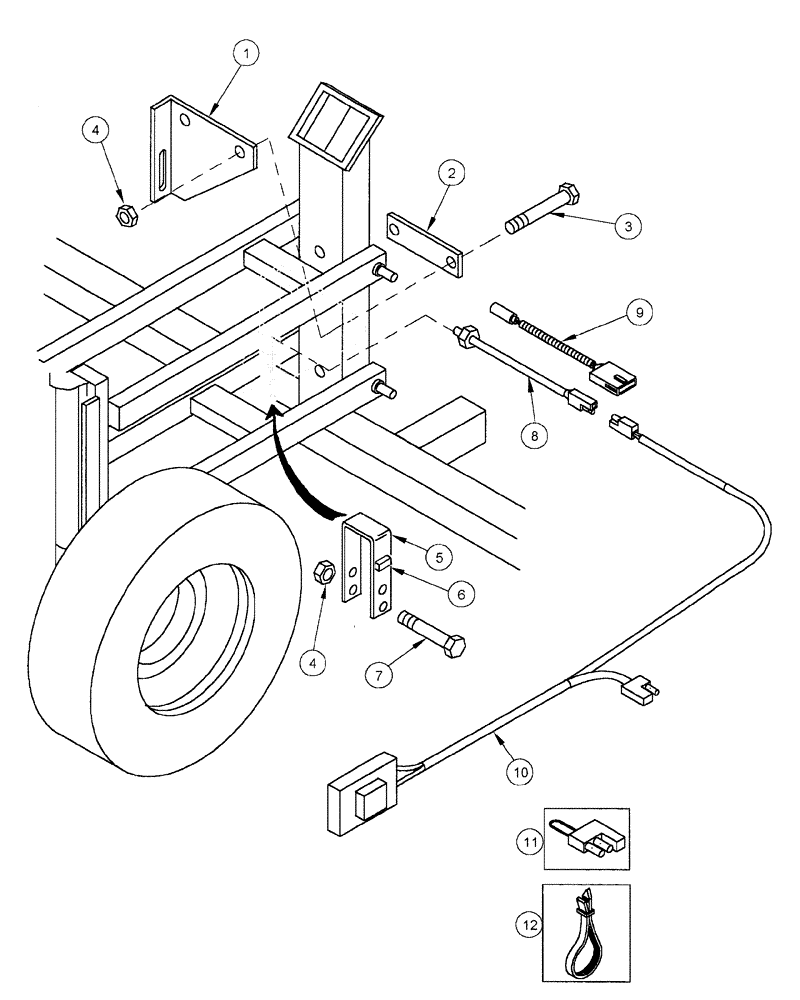

Запчасти Case IH NFX (4-06) - REMOTE CLUTCH SWITCH (04) - ELECTRICAL SYSTEMS

1

350950A1

BRACKET

sensor

1шт.

2

351395A1

PLATE

clamping

1шт.

3

424-464

BOLT,Hex, 1/4" - 20 x 4", Gr 2

hex., 1/4 NC x 4 inch

2шт.

4

231-1444

NUT,1/4"-20, GB

3шт.

5

1030498

MOUNTING PARTS

BRACKET ASSY. magnet, Includes Ref: 6

1шт.

6

1024937

MAGNET

1шт.

7

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

hex., 1/4 NC x 3 inch

1шт.

8

1024930

SENDER UNIT

SENDER remote clutch switch

1шт.

9

308311A1

SWITCH

implement status (up/down) (AFS applications only)

1шт.

10

1030497

SENSOR

module

1шт.

11

1032049

PLUG

harness, shunt

1шт.

12

1017248

STRAP

546 mm (21-1/2 inch) long

1шт.
