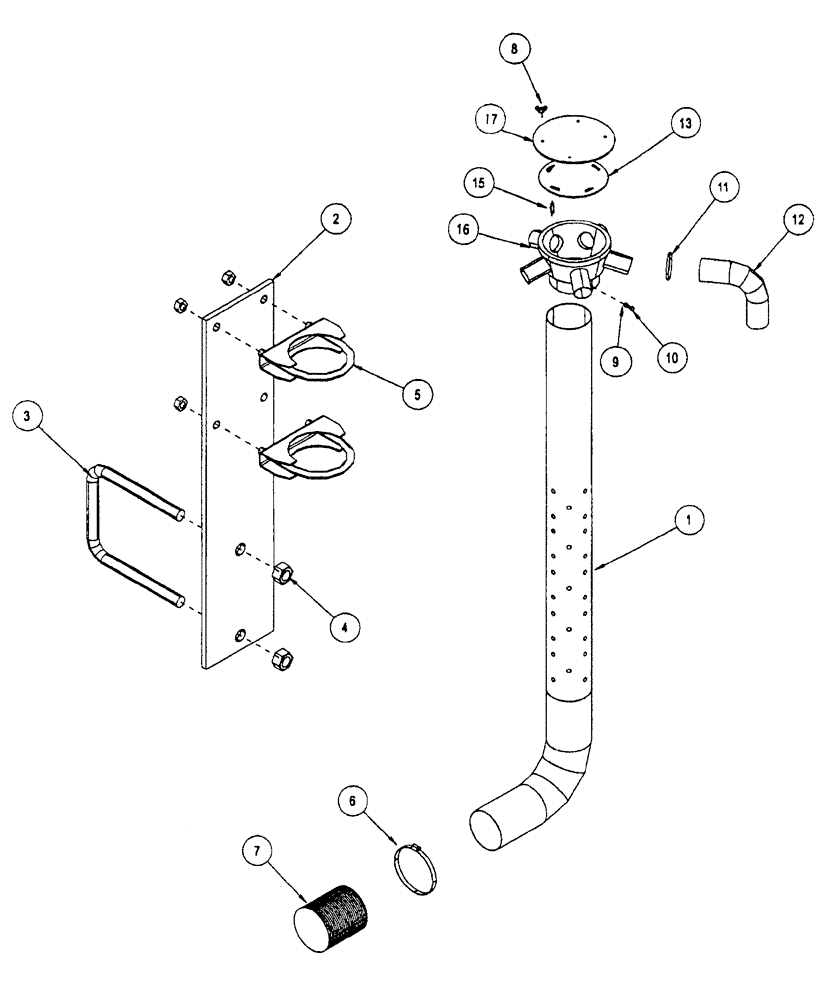

Запчасти Case IH NFX (9-86) - SECONDARY MANIFOLD TUBES AND STAND, 7 PORT, 8 PORT AND 9 PORT (09) - CHASSIS

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

secondary, dimpled short

1шт.

2

1026249

LARGE PLATE

PLATE, LARGE mounting, secondary manifold

1шт.

3

1023564

U-BOLT

1/2 x 4-1/2 x 5 inch

1шт.

4

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

2шт.

5

119442H1

CLAMP

muffler, 2-1/2 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

(Not identified)

2шт.

6

1013236

CLAMP

hose

1шт.

7

1032279

HOSE,2.50" ID

PVC Black

1шт.

7

1032336

HOSE,2.50" ID x 600.00"

PVC Black

1шт.

8

350089A1

WING NUT

wing, 1/4 inch NC

4шт.

Part of Secondary Manifold Cushion Upgrade KIT, P/N 350086A1

1шт.

9

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

10

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

11

1026358

CLAMP

adjusting, 13/16 - 1-1/2 inch diameter

7шт.

12

1032333

HOSE,1.00" ID x 1200.00"

PVC Black

1шт.

13

312149A1

CUSHION

manifold, secondary

1шт.

Part of Secondary Manifold Cushion Upgrade KIT, P/N 350086A1

1шт.

15

350205A1

SET SCREW

set, cup point, 1/4 NC x 1-1/4 inch, stainless steel

4шт.

Part of Secondary Manifold Cushion Upgrade KIT, P/N 350086A1

1шт.

350086A1

KIT

secondary manifold cushion upgrade, includes: REF. 8, 13 & 15, loctite adhesive and instructions

1шт.

1015039

TUBE ASSY.

MANIFOLD secondary, with cover, 7 port, 2310 and 2812 drills, Includes Ref: 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD secondary, 7 port, order 1015039 assembly

1шт.

17

1013192

COVER

secondary manifold, 7 port, (shown)

1шт.

1014483

MANIFOLD VALVE

secondary, with cover, 8 port, 2710 drill, Includes Ref: 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD secondary, 8 port, order 1014483 assembly

1шт.

17

1013193

COVER

secondary manifold, 8 port

1шт.

1013195

MANIFOLD

secondary, with cover, 9 port, 3010 drill, Includes Ref: 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD secondary, 9 port, order 1013195 assembly

1шт.

17

1013191

COVER

secondary manifold, 9 port

1шт.
