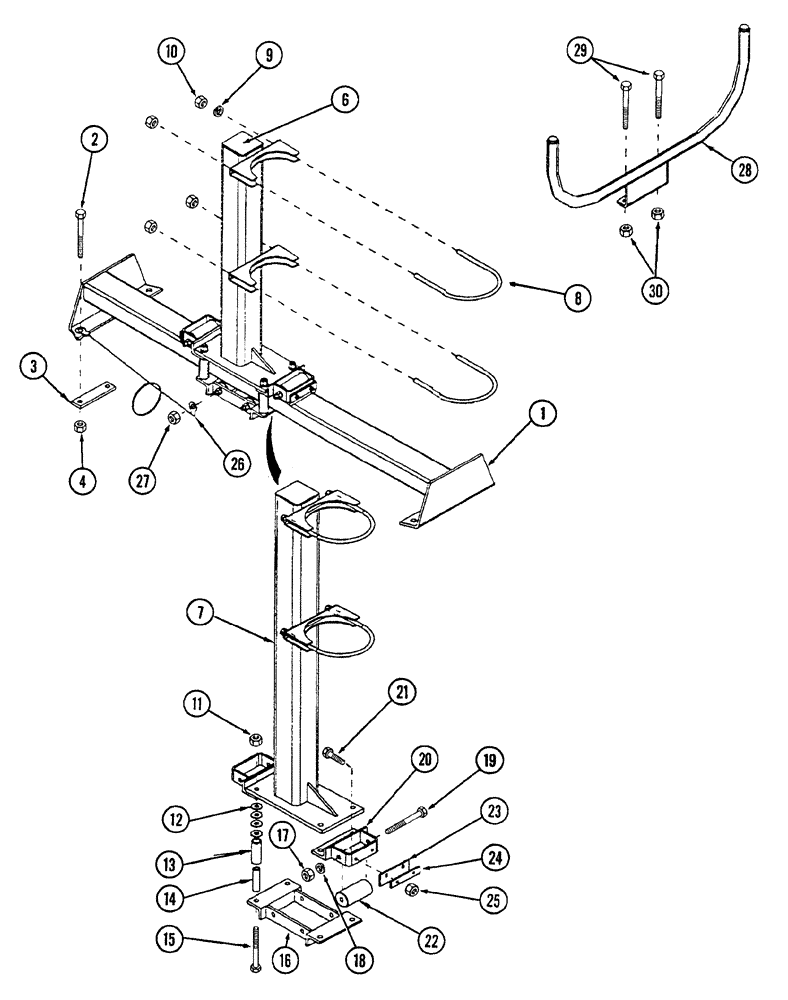

Запчасти Case IH NFX (9-82) - PRIMARY MANIFOLD STANDS REAR TOW - DUAL (09) - CHASSIS

1

1027631

MOUNTING PARTS

manifold rail, primary

2шт.

2

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

hex, 1/2 NC x 5-1/2 inch, grade 5

8шт.

3

1021679

LARGE PLATE

PLATE, LARGE backup

4шт.

4

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

8шт.

6

290107A1

STAND

ASSY. manifold, primary roller, Includes Ref: 7-25

2шт.

7

290088A1

STAND

manifold, primary

1шт.

8

1033298

U-BOLT

muffler clamp, 5 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

495-21044

WASHER,3/8"

(flat, 7/16" x 1" x 5/64")

1шт.

13

1030354

TUBE,0.645" ID, 0.875" OD

tube

4шт.

14

1030355

SPACER

tube

4шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch, grade 5

4шт.

16

1030361

MOUNTING PARTS

lower roller

1шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch, grade 5

4шт.

20

1030360

MOUNTING PARTS

upper roller

2шт.

21

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No.10 NC x 3/4 inch

4шт.

22

1030356

ROLLER

nylatron

4шт.

23

1030386

WIPER

rubber

2шт.

24

1030385

BAR

backing

2шт.

25

1026591

LOCK NUT

hex, No. 10 NC

4шт.

26

1030788

CABLE

ground

2шт.

27

425-106

NUT,3/8"-16, Cl 5

2шт.

28

1027765

CRADLE

1шт.

29

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

hex, 1/2 NC x 5 inch, grade 5

2шт.

30

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

2шт.
