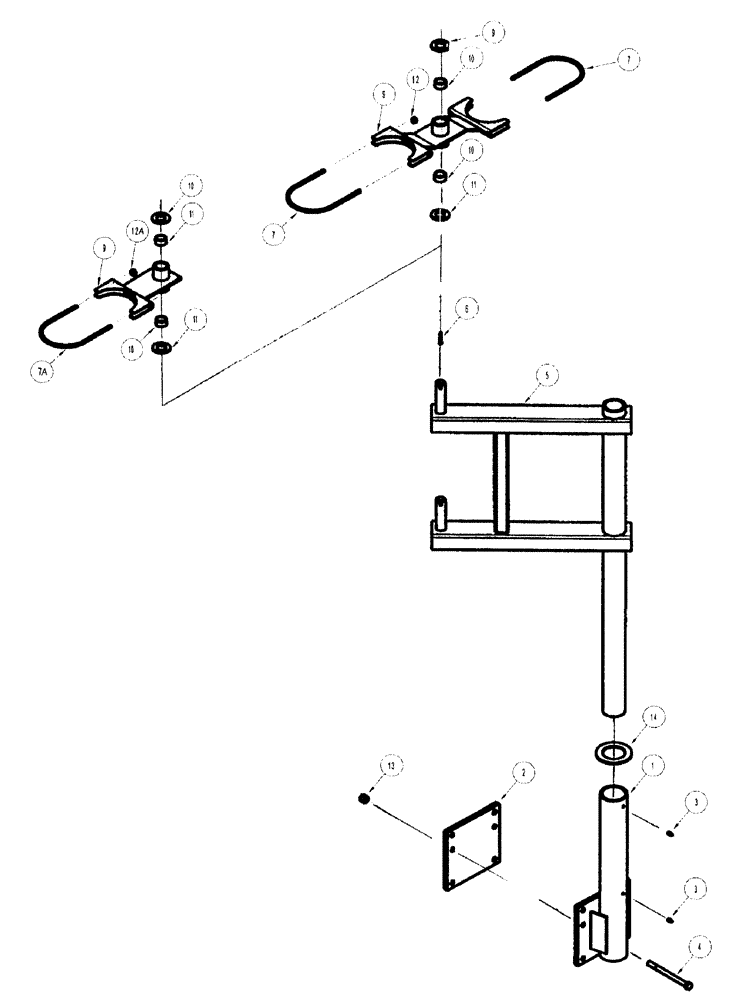

Запчасти Case IH NFX (9-78) - PRIMARY MANIFOLD STAND PIVOTING (09) - CHASSIS

1

350864A1

SUPPORT ASSY.

STAND manifold, primary

1шт.

2

350856A1

PLATE

bolting

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

4

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2 NC x 6 inch

4шт.

5

350854A1

ARM ASSY.

primary manifold stand

1шт.

6

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

7

1033298

U-BOLT

muffler clamp, 5 inch (dual manifold stand)

4шт.

7a

1033298

U-BOLT

muffler clamp, 5 inch (single manifold stand)

2шт.

8

350859A1

MOUNTING PARTS

dual manifold pivot (dual manifold stand)

2шт.

9

350869A1

MOUNTING PARTS

single primary manifold (single manifold stand)

2шт.

10

306246A1

BUSHING

gauge arm

4шт.

11

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

4шт.

12

425-106

NUT,3/8"-16, Cl 5

(Dual manifold stand)

8шт.

12a

425-106

NUT,3/8"-16, Cl 5

(Single manifold stand)

4шт.

13

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

4шт.

14

1014154

THRUST WASHER

thrust

4шт.
