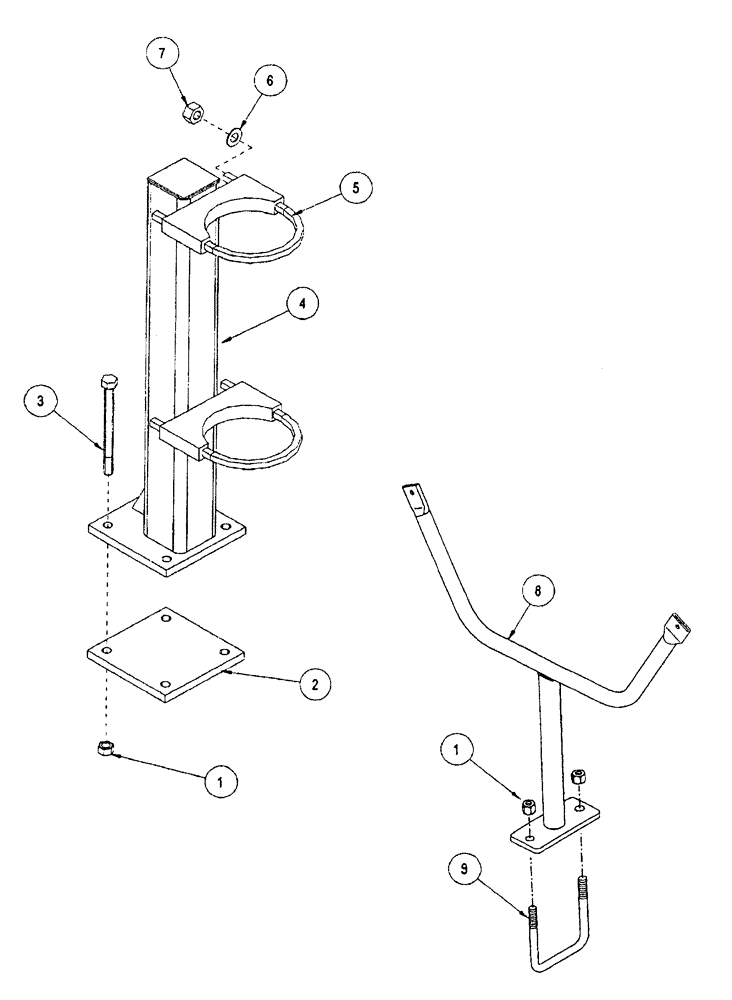

Запчасти Case IH NFX (9-76) - PRIMARY MANIFOLD STAND FRONT TOW (09) - CHASSIS

1

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

6шт.

2

1026854

LARGE PLATE

PLATE, LARGE bolting

1шт.

3

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2 NC x 6 inch, grade 5

4шт.

4

290087A1

MANIFOLD

stand, front tow

1шт.

5

1033298

U-BOLT

muffler clamp, 5 inch

2шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

350342A1

CRADLE

with primary manifold

1шт.

9

1023564

U-BOLT

1/2 x 4-1/2 x 5 inch

1шт.
