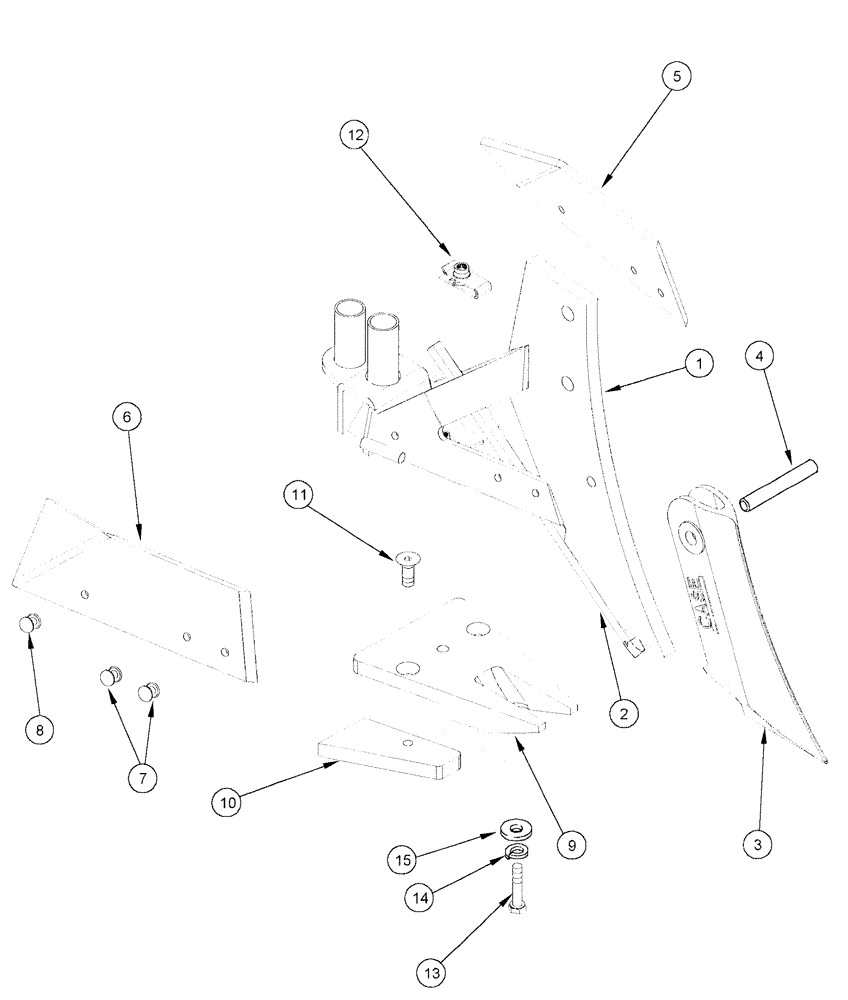

Запчасти Case IH NFX (9-74) - EDGE-ON PRECISION PLACEMENT OPENER - (PPX) TRIPLE SHOOT 12 IN. LIQUID FERTILIZER (09) - CHASSIS

312943A1

OPENER

precision placement, (PPX) 12 inch liquid, Includes Ref: 1-15

1шт.

1

312436A1

OPENER

FRAME ASSY. (PPX) 12 inch liquid, Includes Ref: 2

1шт.

2

1030559

TUBE

liquid, straight

1шт.

3

1030569

TIP

TIP chrome (if used)

1шт.

3

350951A1

TIP

opener, chrome carbide (if used)

1шт.

4

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

3/8" x 1 1/2", Slotted

1шт.

5

1030051

SHIELD

opener, left hand

1шт.

6

1030052

SHIELD

opener, right hand

1шт.

7

151-570

RIVET,Pop, 1/4" x 3/4"

button head, 1/4 x 3/4 inch

4шт.

8

151-572

RIVET,Pop, 1/4" x 1 1/4"

RIVET button head, 1/4 x 1-1/4 inch

2шт.

9

1030417

BASE PLATE

base

1шт.

10

305972A1

LARGE PLATE

PLATE, LARGE INSERT right hand and left hand (if used)

2шт.

10

350952A1

PLATE ASSY.

INSERT left hand (if used)

1шт.

10

350953A1

PLATE ASSY.

INSERT right hand (if used)

1шт.

11

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

hex socket, 3/8 NC x 1 inch

2шт.

12

1030568

NUT

speed clip, 5/16 NC

1шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

15

92-11031

LOCK WASHER,5/16"

1шт.
