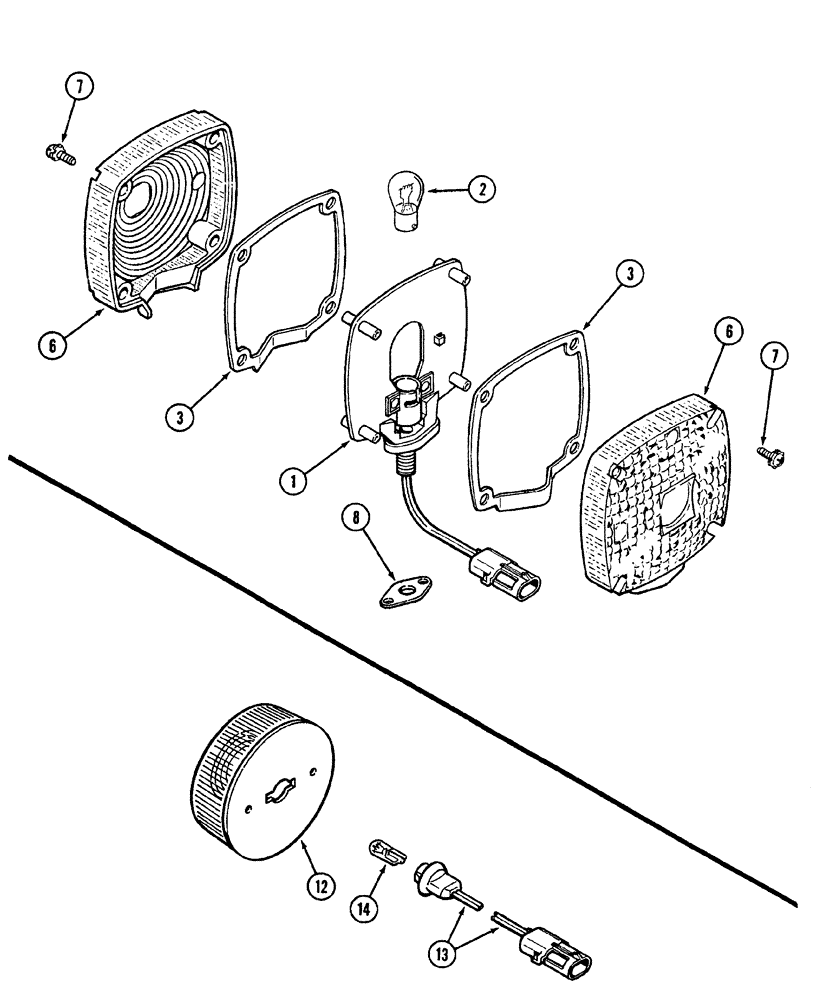

Запчасти Case IH NFX (4-04) - TURN SIGNAL LAMP, TAIL LAMP (04) - ELECTRICAL SYSTEMS

192052A1

REPAIR KIT

lamp, warning, turn signal, Includes Ref: 1-9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, turn signal

1шт.

2

A41264

BULB,#1156, 12V

Turn signal

1шт.

3

A43731

GASKET

sealing, lens, turn signal lamp

2шт.

A44202

KIT

lens, turn signal lamp, Includes Ref: 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

LENS lamp, amber, turn signal

2шт.

7

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

self-tapping, round head Phillips, No. 8 NC x 5/8 inch, turn signal lamp

8шт.

8

F63435

GASKET

mounting, lamp, turn signal

1шт.

9

377630C1

CONNECTOR, ELEC

CONNECTOR LAMP ASSY., turn signal

2шт.

91986C91

LIGHT

LAMP ASSY. tail, Includes Ref: 12-14

1шт.

12

NSS

NOT SOLD SEPARAT

BASE lamp, tail

1шт.

13

91934C1

SOCKET

ASSY. bulb, tail lamp, Includes Ref: 14

1шт.

14

D71346

TAIL LAMP,12V

No. 168

1шт.
