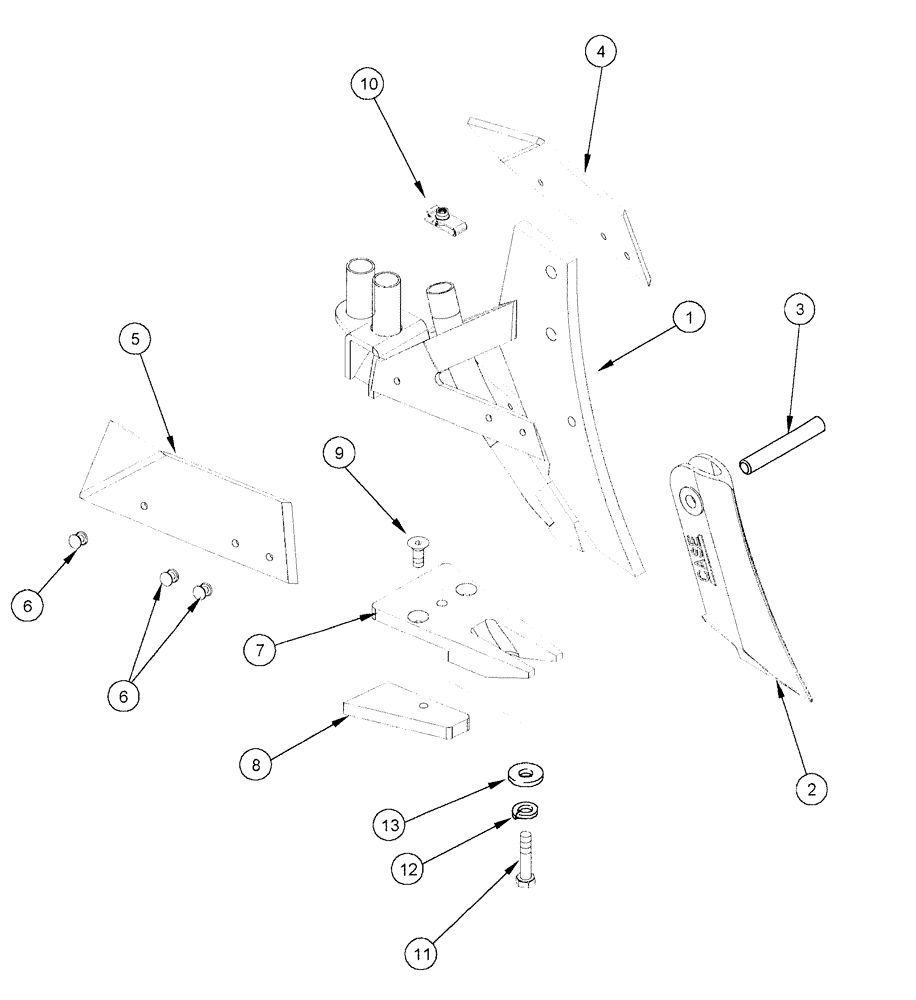

Запчасти Case IH NFX (9-68) - EDGE-ON PRECISION PLACEMENT OPENER - (PPX) TRIPLE SHOOT 10 IN. DRY FERTILIZER (09) - CHASSIS

312944A1

OPENER

precision placement, (PPX) 10 inch dry, Includes Ref: 1-13

1шт.

1

312710A1

OPENER

FRAME

1шт.

2

1030569

TIP

TIP chrome (if used)

1шт.

2

350951A1

TIP

opener, chrome carbide (if used)

1шт.

3

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

3/8" x 1 1/2", Slotted

1шт.

4

1030051

SHIELD

opener, left hand

1шт.

5

1030052

SHIELD

opener, right hand

1шт.

6

151-570

RIVET,Pop, 1/4" x 3/4"

button head, 1/4 x 3/4 inch

6шт.

7

1030055

BASE PLATE

base

1шт.

8

305972A1

LARGE PLATE

PLATE, LARGE INSERT right hand and left hand (if used)

2шт.

8

350952A1

PLATE ASSY.

INSERT left hand (if used)

1шт.

8

350953A1

PLATE ASSY.

INSERT right hand (if used)

1шт.

9

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT hex socket, 3/8 NC x 1 inch

2шт.

10

1030568

NUT

speed clip, 5/16 NC

1шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

12

92-11031

LOCK WASHER,5/16"

1шт.

13

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.
