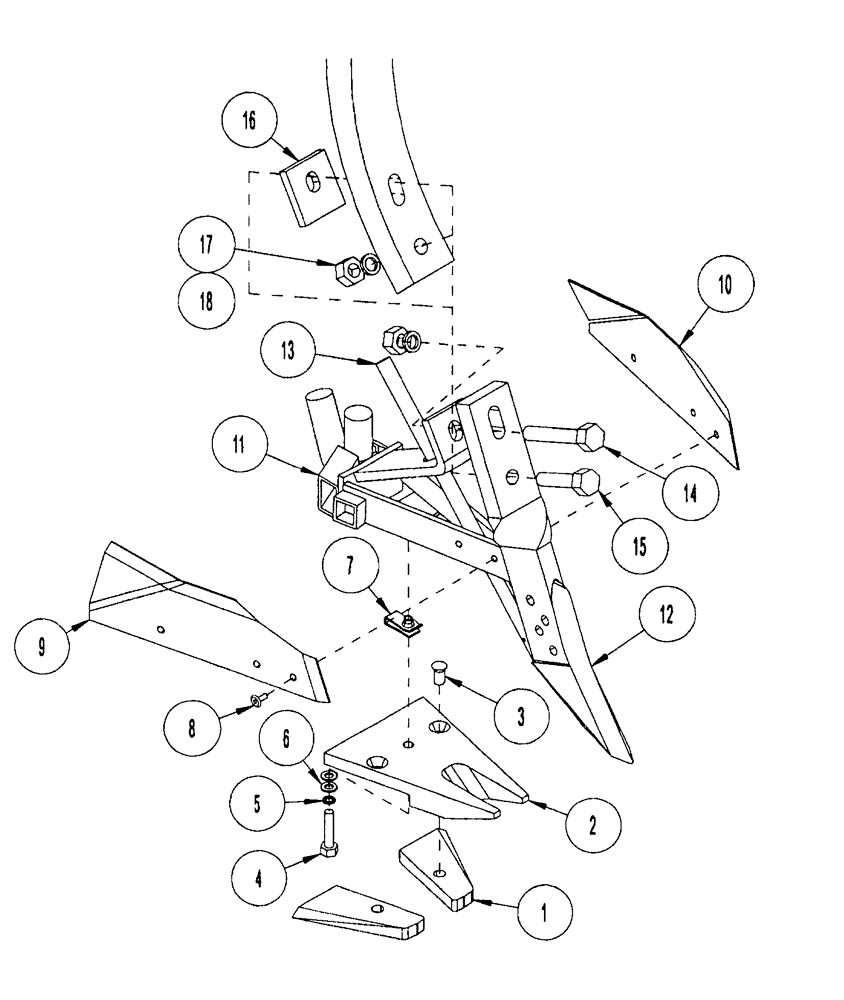

Запчасти Case IH NFX (9-66) - STANDARD ANDERSON OPENER - TRIPLE SHOOT 12 IN. LIQUID FERTILIZER (09) - CHASSIS

1030625

OPENER

Anderson, standard, 12 inch liquid, Includes Ref: 1-18

1шт.

1

305972A1

LARGE PLATE

PLATE, LARGE INSERT right hand and left hand (if used)

2шт.

1

350952A1

PLATE ASSY.

INSERT left hand (if used)

1шт.

1

350953A1

PLATE ASSY.

INSERT right hand (if used)

1шт.

2

1030417

BASE PLATE

base

1шт.

3

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

hex socket, 3/8 NC x 1 inch

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

92-11031

LOCK WASHER,5/16"

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

7

1030568

NUT

speed clip, 5/16 NC

1шт.

8

151-570

RIVET,Pop, 1/4" x 3/4"

button head, 1/4 x 3/4 inch

4шт.

8

151-572

RIVET,Pop, 1/4" x 1 1/4"

RIVET button head, 1/4 x 1-1/4 inch

2шт.

9

1030054

SHIELD

opener, right hand

1шт.

10

1030053

SHIELD

opener, left hand

1шт.

11

1033108

BODY

opener

1шт.

12

1033282

TIP

opener, chrome

1шт.

13

1030559

TUBE

liquid, straight

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

1шт.

15

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

16

1033283

SPACER

spacer

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
