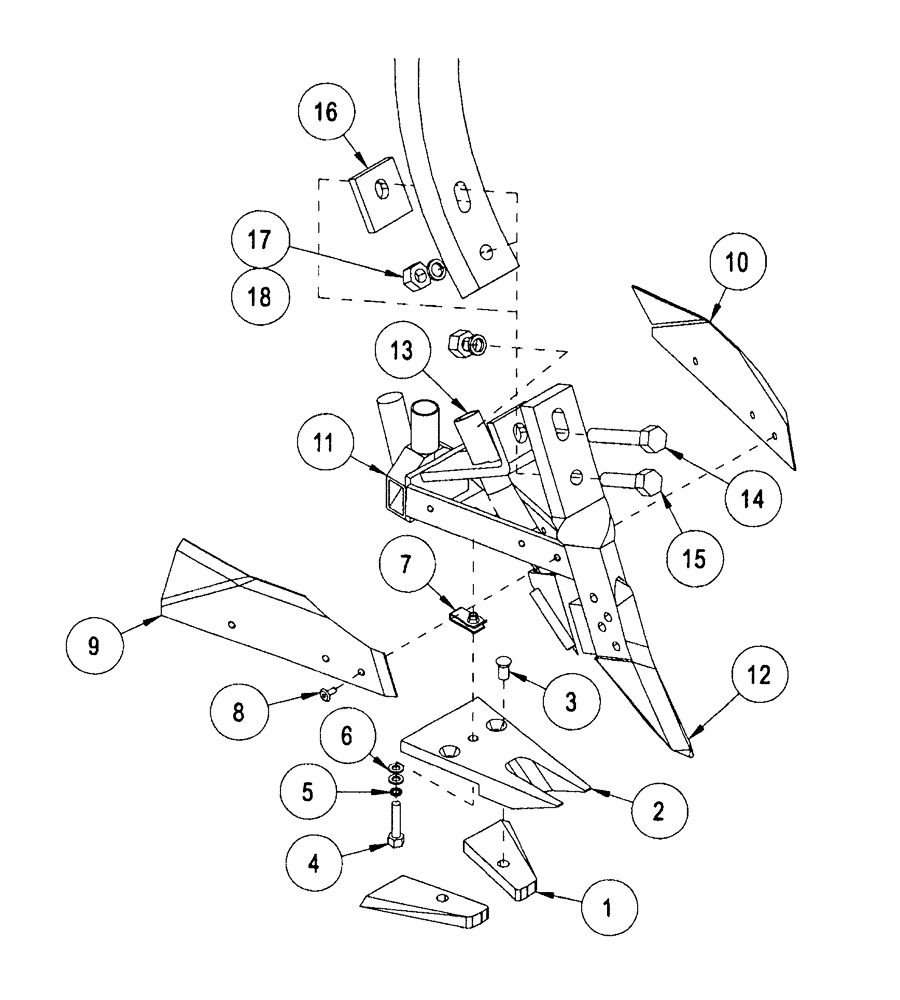

Запчасти Case IH NFX (9-60) - STANDARD ANDERSON OPENER TRIPLE SHOOT 10 IN. DRY FERTILIZER (09) - CHASSIS

1032077

PACKAGE

OPENER, Anderson, standard, 10 inch dry, Includes Ref: 1-18

1шт.

1

305972A1

LARGE PLATE

PLATE, LARGE INSERT right hand and left hand

2шт.

1

350952A1

PLATE ASSY.

INSERT left hand (if used)

1шт.

1

350953A1

PLATE ASSY.

INSERT right hand (if used)

1шт.

2

1030055

BASE PLATE

base

1шт.

3

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

hex socket, 3/8 NC x 1 inch

2шт.

4

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

5

492-11031

LOCK WASHER,5/16"

1шт.

6

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

7

1030568

NUT

speed clip, 5/16 NC

1шт.

8

151-570

RIVET,Pop, 1/4" x 3/4"

button head, 1/4 x 3/4 inch

6шт.

9

1030054

SHIELD

opener, right hand

1шт.

10

1030053

SHIELD

opener, left hand

1шт.

11

1032064

FRAME

FRAME opener, 10 inch dry, Includes Ref: 12, 13

1шт.

12

1033282

TIP

opener, chrome

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE round standard dry, order 1032064 frame

1шт.

14

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, 1/2 NC x 3-1/4 inch

1шт.

15

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

16

1033283

SPACER

spacer

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
