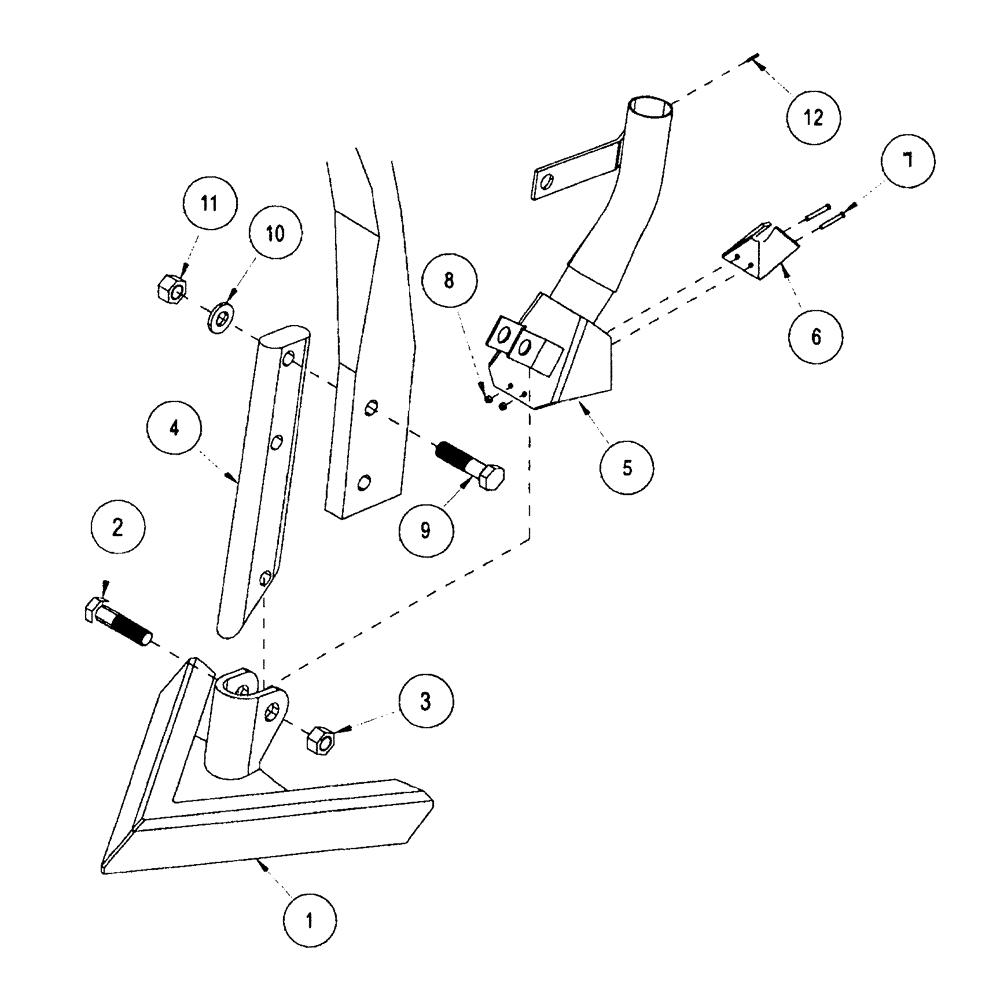

Запчасти Case IH NFX (9-52) - SWEEP ASSEMBLY, LD VERSION (09) - CHASSIS

1

1032199

SWEEP

6 inch, if used

1шт.

1

350232A1

SWEEP

chrome edges, 6 inch, if used

1шт.

1

1027915

SWEEP

11 inch, if used

1шт.

1

350233A1

SWEEP

chrome edges, 11 inch, if used

1шт.

1

1033379

SWEEP

13 inch, if used

1шт.

1

350234A1

SWEEP

chrome edges, 13 inch, if used

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

290661A1

LOCK NUT

top lock, 1/2 inch, grade 8

1шт.

4

1027914

SUPPORT

TRANSITION shank

1шт.

1033338

TUBE

ASSY. seed boot, no longer available, order 306731A1 seed boot assembly below, Includes Ref: 5-8

1шт.

306731A1

BOOT

seed ASSY., Includes Ref: 5-8

1шт.

5

290108A1

BOOT

seed (used with 1033338 assembly) no longer available, order 306729A1 boot below

1шт.

5

306729A1

BOOT

seed (used with 306731A1 assembly)

1шт.

6

1032377

MUD DEFLECTOR

boot, used with 1033338 assembly (attaches with #6 hardware), if used

1шт.

6

312119A1

DEFLECTOR

boot, used with 306731A1 assembly (attaches with #8 hardware), if used

1шт.

7

290177A1

SCREW

#6 x 1/2 NC (used with 1032377 deflector)

2шт.

7

312024A1

SCREW

#8 x 1/2 NC (used with 312119A1 deflector)

2шт.

8

1032094

LOCK NUT

#6 NC (used with 1032377 deflector)

2шт.

8

290077A1

LOCK NUT

locking, #8 NC (used with 312119A1 deflector)

2шт.

9

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

2шт.

12

1024456

SELF-TAP SCREW

self tapping, 3/16 x 1/2 inch

1шт.

13

1030063

CABLE TIE,.30" x 8 7/8"

CABLE STRAP tie (not shown)

1шт.
