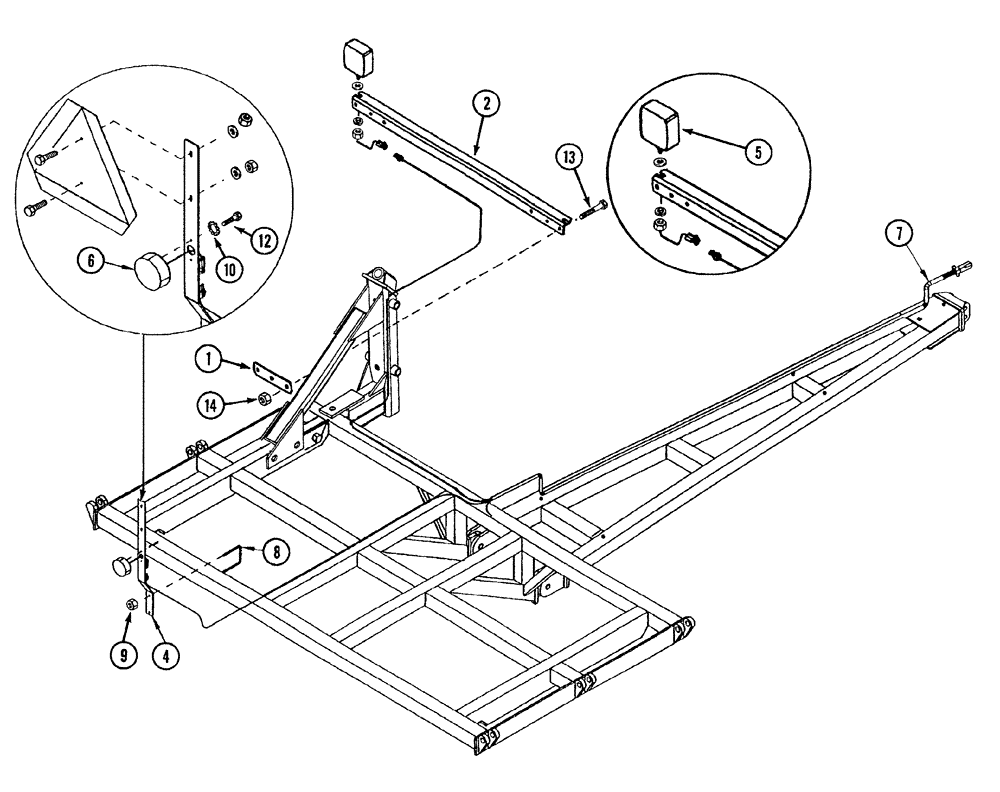

Запчасти Case IH NFX (4-02) - LIGHTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

351313A1

BAR bolting

2шт.

2

351312A1

BRACKET mounting, light

2шт.

4

1032478

PLATE

mounting, SMV/light

1шт.

5

REF

INSTRUCTION

LAMP ASSY. warning, see Fig. 4-04

2шт.

6

REF

INSTRUCTION

LAMP ASSY. tail, red, see Fig. 4-04

1шт.

7

1969327C1

HARNESS

wiring, lighting system (Concord part number 1032177)

1шт.

8

1030501

U-BOLT

3/8 NC x 4 inch

1шт.

9

232-1446

NUT,3/8"-16, GC

2шт.

10

1013389

THRUST WASHER

star, 3/16 x 3/8 x 1/64 inch

2шт.

11

1017248

STRAP

tie, 546 mm (21-1/2 inch) long

24шт.

12

1013336

SELF-TAP SCREW,M12 x 35mm, Cl 12.9

3/16 st x 3/4 inch

2шт.

13

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex., 1/2 NC x 4 inch

4шт.

14

231-1448

NUT,1/2"-13, GB

hex, NC

4шт.
