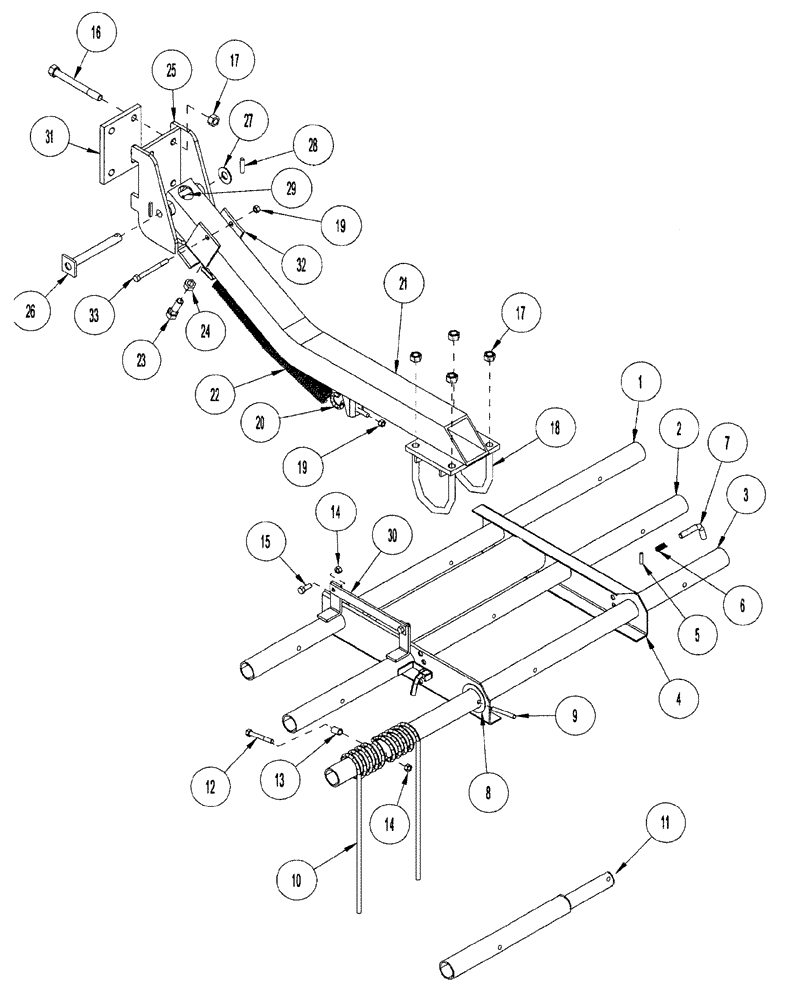

Запчасти Case IH NFX (9-50) - THREE BAR HARROW (09) - CHASSIS

1

1023992

PIPE

harrow weldment, 6-1/2 foot frame

1шт.

1

1023991

PIPE

harrow weldment, 5 foot frame

1шт.

2

1023995

PIPE

harrow weldment, 6-1/2 foot frame

1шт.

2

1023994

PIPE

harrow weldment, 5 foot frame

1шт.

3

1023993

PIPE

harrow weldment, 6-1/2 foot frame

1шт.

3

1023990

PIPE

harrow weldment, 5 foot frame

1шт.

4

1023987

FRAME

three bar harrow, 6-1/2 foot

1шт.

4

1023988

FRAME

three bar harrow, 5 foot

1шт.

5

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

1/4" x 1 1/4", Slotted

2шт.

6

1023970

SPRING

handle

2шт.

7

1023968

PIN

Handle

2шт.

8

1024746

WASHER

harrow

1шт.

9

1024048

PIN, ROLL

3/8 x 3

3шт.

PL1951

EXTENSION

KIT tube assembly, no longer available, order components below, Includes Ref: 10-14

1шт.

10

1023949

TINE

SPRING harrow tooth

1шт.

11

1024817

PIPE ASSY.

EXTENSION tube

1шт.

12

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

13

1023375

SPACER

tube

1шт.

14

232-1446

NUT,3/8"-16, GC

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

4шт.

17

231-14410

NUT,5/8"-11, GB

8шт.

18

1023756

U-BOLT

5/8 x 4-3/4 x 5-9/16

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

1023962

BOLT

BOLT, EYE 3/8 x 5 NC, grade 5

1шт.

21

1023989

ARM

harrow

1шт.

22

1023749

SPRING

harrow

1шт.

23

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

1шт.

25

1023985

MOUNTING PARTS

harrow

1шт.

26

1023986

PIVOT PIN

pivot

1шт.

27

495-11081

WASHER,3/4", SAE

1шт.

28

0100344

SPLIT PIN/SAFETY PIN

roll, 3/8 x 1-1/2 inch

1шт.

29

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

30

1023964

BAR

link

1шт.

31

1025975

LARGE PLATE

PLATE, LARGE bolting .

1шт.

32

1026746

BAR

protector

1шт.

33

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

hex, 3/8 NC x 4 inch

1шт.
