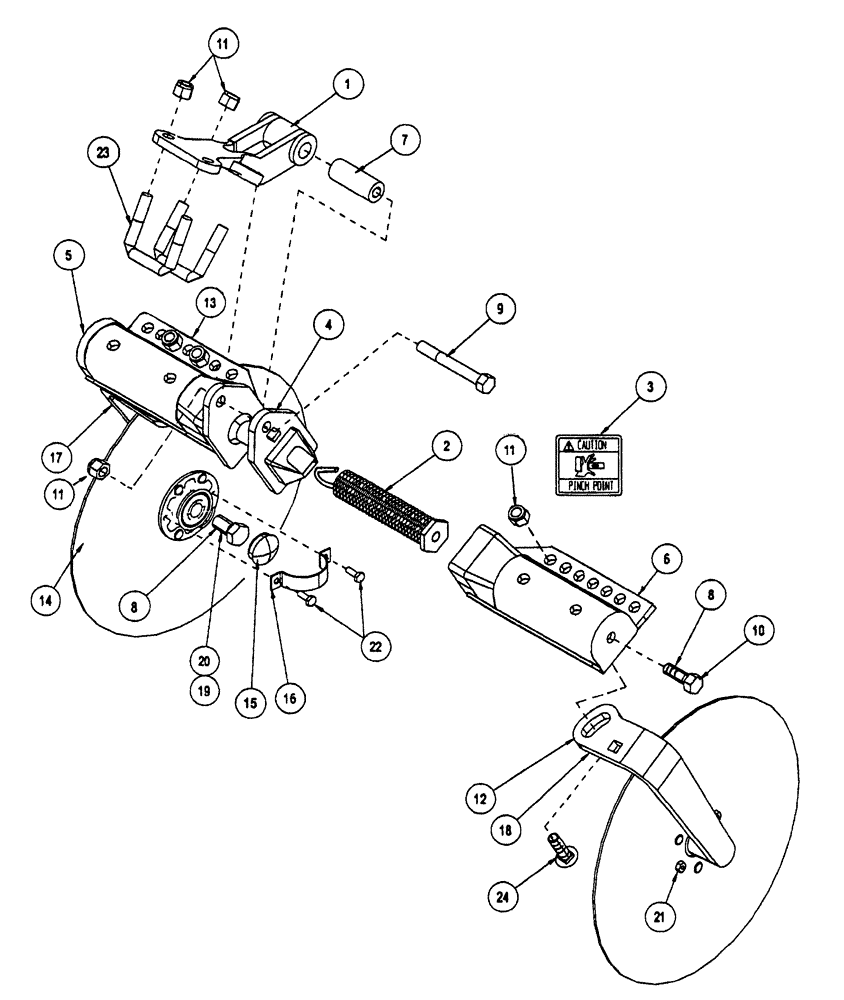

Запчасти Case IH NFX (9-48) - DISC LEVELERS (09) - CHASSIS

1

1032185

PIVOT

MOUNT

1шт.

2

312800A1

SPRING

leveler, with extension

2шт.

3

1030543

DECAL

caution

2шт.

4

1030845

ARM

CARRIER leveler

1шт.

5

1030456

ARM

disc mount, left hand

1шт.

6

1030455

ARM

disc mount, right hand

1шт.

7

1029571

BUSHING,13.59mm ID x 25.53mm OD x 65.48mm L

pivot mount

1шт.

8

REF

INSTRUCTION

LOCTITE # 242, apply to item 19 or 20

1шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch, grade 5

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

231-4248

NUT,1/2"-13, GB

9шт.

12

1030419

ARM

disc, left hand, includes: REF. 14,15,16,18,19, 21 & 22

1шт.

13

1030420

ARM

disc, right hand, includes: REF. 14, 15, 16, 17, 20, 21 & 22

1шт.

14

1030418

BEARING ASSY

ASSY.

1шт.

1029653

DISC

hardened, 14 inch diameter

1шт.

1030574

GASKET

1шт.

1030415

FLANGED BEARING

BEARING ASSY.

1шт.

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball

1шт.

1268017C91GV

BEARING

Value, Ball Bearing

1шт.

90409C1

FLANGED BEARING,34.95 mm ID x 45.187 mm OD x 24.63 mm

bearing

1шт.

447-49

RIVET,FH, 1/4" x 9/16"

flat head, 1/4 x 9/16 inch

4шт.

15

1030414

DUST CAP

dust

1шт.

16

1029687

RETAINER

RETAINER cap, 1/2 collar

1шт.

17

1029681

ARM

disc, right hand

1шт.

18

1029680

ARM

disc, left hand

1шт.

19

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

RH thread

1шт.

20

113-2664

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

LH thread

1шт.

21

230-4214

LOCK NUT,1/4"-20, GA

2шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

1029579

U-BOLT

U, 1/2 x 2-1/2 x 2-1/4 inch

2шт.

24

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.
