Запчасти Case IH NFX (9-46) - COULTER STUBS, OFFSET STUB, COULTER STUB-LONG (7-7/8 INCHES) (09) - CHASSIS

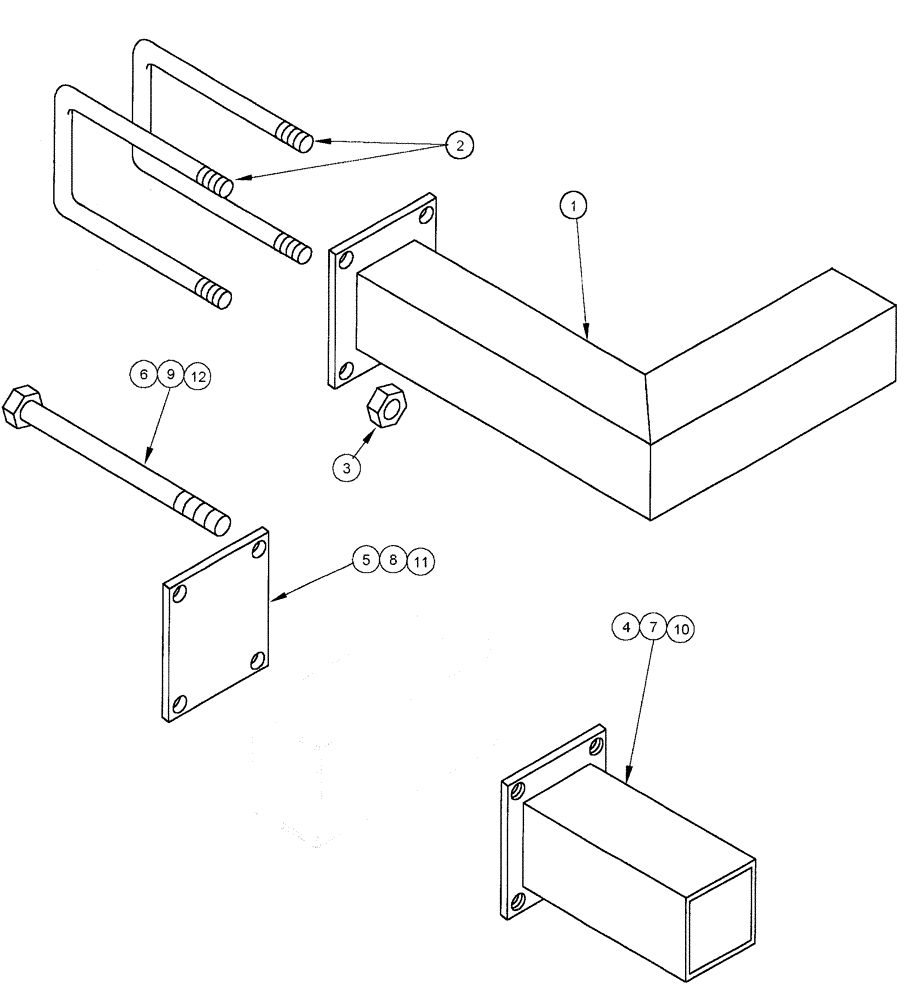

Схема запчастей Case IH NFX - (9-46) - COULTER STUBS, OFFSET STUB, COULTER STUB-LONG (7-7/8 INCHES) (09) - CHASSIS
7
1
9
12
5
6
4
3
2
8
10
11

Артикул

Название

Примечание

Количество

312054A

KIT offset coulter stub attachment (order from Machinery Price List), Includes Ref: 1-3

1шт.

1

306933A1

SUPPORT

offset stub

1шт.

2

1023748

U-BOLT

offset stub, 5/8 x 4-11/16 x 5-1/2 inch

2шт.

3

231-14410

NUT,5/8"-11, GB

Offset stub

4шт.

312055A

KIT long (7-7/8 inch ) coulter stub attachment, 2 inch square tube frame member (order from machinery price list), Includes Ref: 4-6

1шт.

4

311982A1

SUPPORT

coulter stub, long (7-7/8 inch), 2 inch square tube frame member

1шт.

5

311985A1

PLATE

bolting, coulter stub long (7-7/8 inch), 2 inch square tube frame member

1шт.

6

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex., 3/4 NC x 3 inch, coulter stub long (7-7/8 inch), 2 inch square tube frame member

4шт.

312056A

KIT short (6-5/16 inch) coulter stub attachment, 4 inch square tube frame member (order from machinery price list), Includes Ref: 7-9

1шт.

7

306929A1

SUPPORT

coulter stub, short (6-5/16 inch), 4 inch square tube frame member

1шт.

8

311985A1

PLATE

bolting, coulter stub short (6-5/16 inch), 4 inch square tube frame member

1шт.

9

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Coulter stub short (6-5/16 inch), 4 inch square tube frame member

4шт.

312058A

KIT long (7-7/8 inch) coulter stub attachment, 4 inch square tube frame member (order from machinery price list), Includes Ref: 10-12

1шт.

10

311982A1

SUPPORT

coulter stub, long (7-7/8 inch), 4 inch square tube frame member

1шт.

11

311985A1

PLATE

bolting, coulter stub long (7-7/8 inch), 4 inch square tube frame member

1шт.

12

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

Coulter stub long (7-7/8 inch), 4 inch square tube frame member

4шт.

Выбрано товаров: 16
