Запчасти Case IH NFX (9-42) - CLYMER UTILITY COULTER (09) - CHASSIS

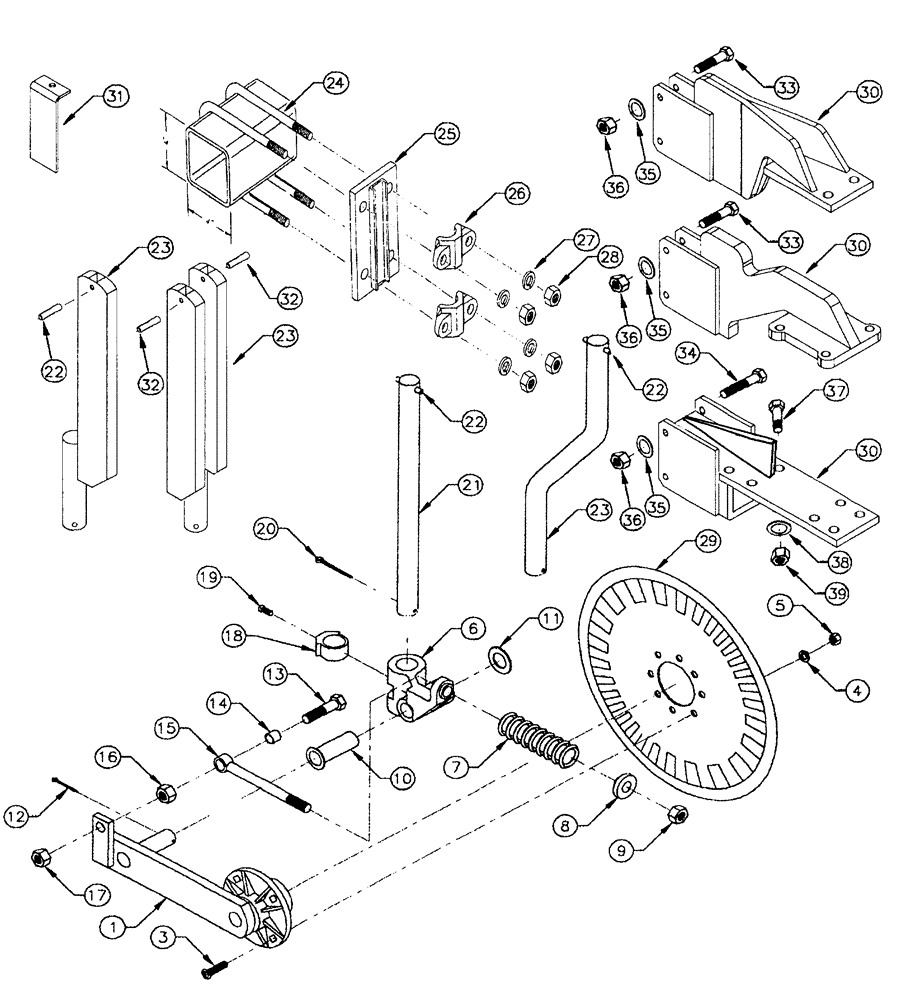

Схема запчастей Case IH NFX - (9-42) - CLYMER UTILITY COULTER (09) - CHASSIS
34
31
35
23
35
7
35
38
33
5
13
9
3
21
16
19
24
36
36
30
14
1
10
37
20
11
30
39
23
12
29
18
6
23
33
27
36
8
17
25
26
22
22
32
32
15
22
28
30
4

Артикул

Название

Примечание

Количество

312750A1

COULTER

ASSY., Clymer, Includes Ref: 1-23

1шт.

1

312757A1

ARM

swing ASSY. parts list figure 9-45

1шт.

3

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

312748A1

HINGE

pivot, Clymer

1шт.

7

312751A1

SPRING

coulter, Clymer

1шт.

8

312752A1

RETAINER

spring, Clymer

1шт.

9

231-42412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

1шт.

10

312749A1

BUSHING

flanged, Clymer

1шт.

11

312781A1

WASHER

flat

1шт.

12

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

13

414-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 5

hex, 3/4 NF x 3 inch, grade 5

1шт.

14

312754A1

BUSHING

nylon, Clymer

1шт.

15

312753A1

EYEBOLT

spring, Clymer

1шт.

16

429-1112

NUT,3/4"-16, G5

hex, 3/4 inch NF, grade 8

1шт.

17

231-47112

LOCK NUT,3/4"-16, GB

hex, self locking, 3/4 inch NF

1шт.

18

312766A1

COLLAR

locking, Clymer

1шт.

18

312767A1

COLLAR

locking, Clymer

1шт.

19

485-16216

SET SCREW,Sq Hd, 5/8"-11 x 1"

square head, 5/8 NC x 1 inch, cup point

1шт.

20

432-2048

COTTER PIN,5/16" x 3"

5/16" x 3"

1шт.

21

312763A1

SHANK

coulter, straight, Clymer (if used)

1шт.

21

312764A1

SHANK

coulter, straight, Clymer (if used)

1шт.

22

38-32432

PIN,3/8" x 2", Coiled

3/8" x 2", Coiled

1шт.

23

312762A1

SHANK

coulter, offset, Clymer (if used)

1шт.

23

312779A1

SHANK

coulter, formed, Clymer (if used)

1шт.

23

312780A1

SHANK

coulter, flat, Clymer (if used)

1шт.

312775A1

CLAMP

ASSY. coulter shank, 4 inch x 4 inch, Includes Ref: 24-28

1шт.

24

312776A1

U-BOLT

BOLT "U"

2шт.

25

312774A1

PLATE ASSY.

clamp, coulter shank

1шт.

26

312777A1

CLAMP

coulter shank

2шт.

27

492-11062

BEARING WASHER,5/8"

4шт.

28

425-1010

NUT,5/8"-11, G5

4шт.

29

312768A1

BLADE

Clymer coulter, 508 mm (20 inch) fluted (if used)

1шт.

29

312770A1

BLADE

Clymer coulter, 508 m (20 inch) plain B (if used)

1шт.

29

312771A1

BLADE

Clymer coulter, 508 mm (20 inch) rippled (if used)

1шт.

29

312773A1

BLADE

Clymer coulter, 508 mm (20 inch) notched (if used)

1шт.

29

312772A1

BLADE

Clymer coulter, 457 mm (18 inch) wave (if used)

1шт.

29

290501A1

BLADE

Clymer coulter, 508 mm (20 inch) wave (if used)

1шт.

30

1033060

PLOW DISC

MOUNT coulter shank, solid shank (if used)

1шт.

30

1033065

SUPPORT

MOUNT coulter shank, cushion shank (if used)

1шт.

30

290890A1

PLOW DISC

MOUNT coulter shank, trip shank (if used)

1шт.

31

1033061

BAR

angle (used with 312780A1 shank)

2шт.

32

38-32424

PIN,3/8" x 1 1/2", Coiled

3/8" x 1 1/2", Coiled

2шт.

33

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

34

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex, 1/2 NC x 7 inch

2шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

36

425-108

NUT,1/2" - 13, Gr 5

2шт.

37

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1 -3/4 inch

2шт.

38

492-11062

BEARING WASHER,5/8"

2шт.

39

425-1010

NUT,5/8"-11, G5

2шт.

Выбрано товаров: 51
