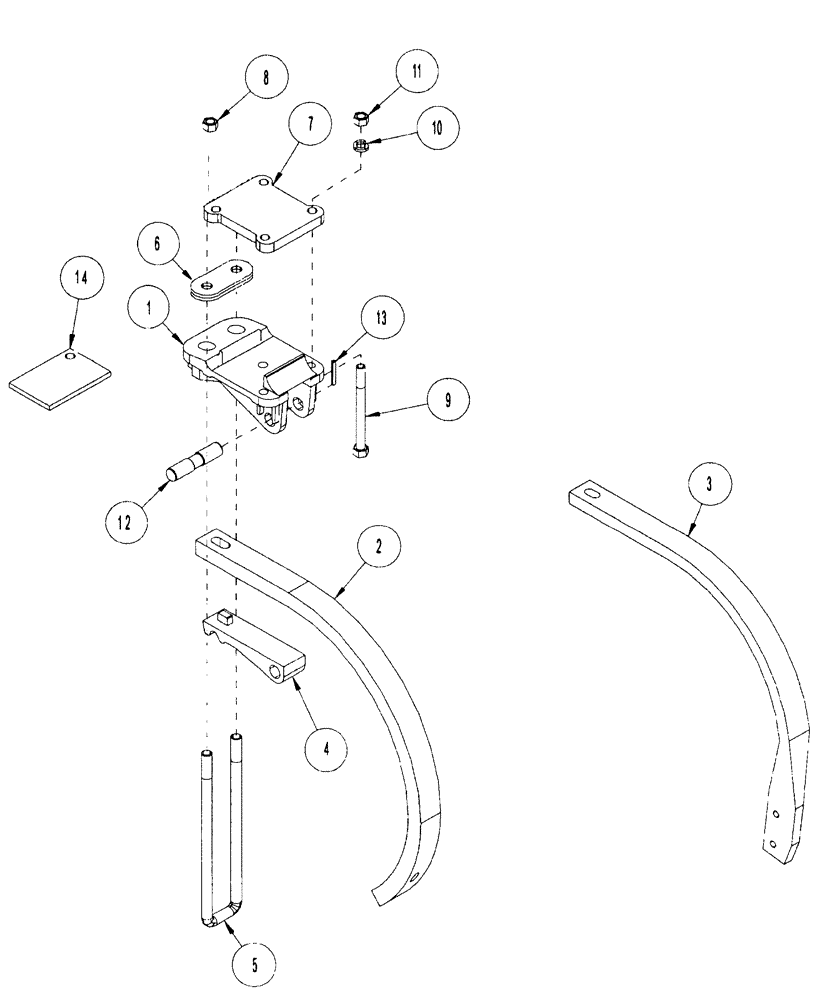

Запчасти Case IH NFX (9-38) - SOLID CUSHION MOUNT ASSEMBLY - STANDARD "C" AND EDGE-ON SHANKS (09) - CHASSIS

312568A1

SHANK

MOUNT solid cushion, ASSY. standard, Includes Ref: 1-14

1шт.

312567A1

SHANK

MOUNT solid cushion, ASSY. edge on shanks, Includes Ref: 1-14

1шт.

1

305974A1

HOUSING

cushion shank

1шт.

2

1027750

SHANK

50-1/2° angle, 1-1/4 x 2 inch, standard (if used)

1шт.

3

306350A1

SHANK

side mount, 1-1/4 x 2 inch (if used)

1шт.

4

305973A1

SUPPORT

FLIPPER shank holder

1шт.

5

312152A1

U-BOLT

BOLT "U" 3/4 NC x 2 -7/8 x 4 -3/8 inch

1шт.

6

312153A1

PLATE

cap

1шт.

7

1021166

PLATE

bolting

1шт.

8

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

9

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8 NC x 7 inch, grade 5

2шт.

10

492-11062

BEARING WASHER,5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

1014837

LARGE PIN,25.4mm OD x 117.48mm L

PIN, LARGE Shank

1шт.

13

38-12032

LOCK PIN,5/16" x 2", Slotted

5/16" x 2", Slotted

2шт.

14

1019717

BAR

blank

1шт.
