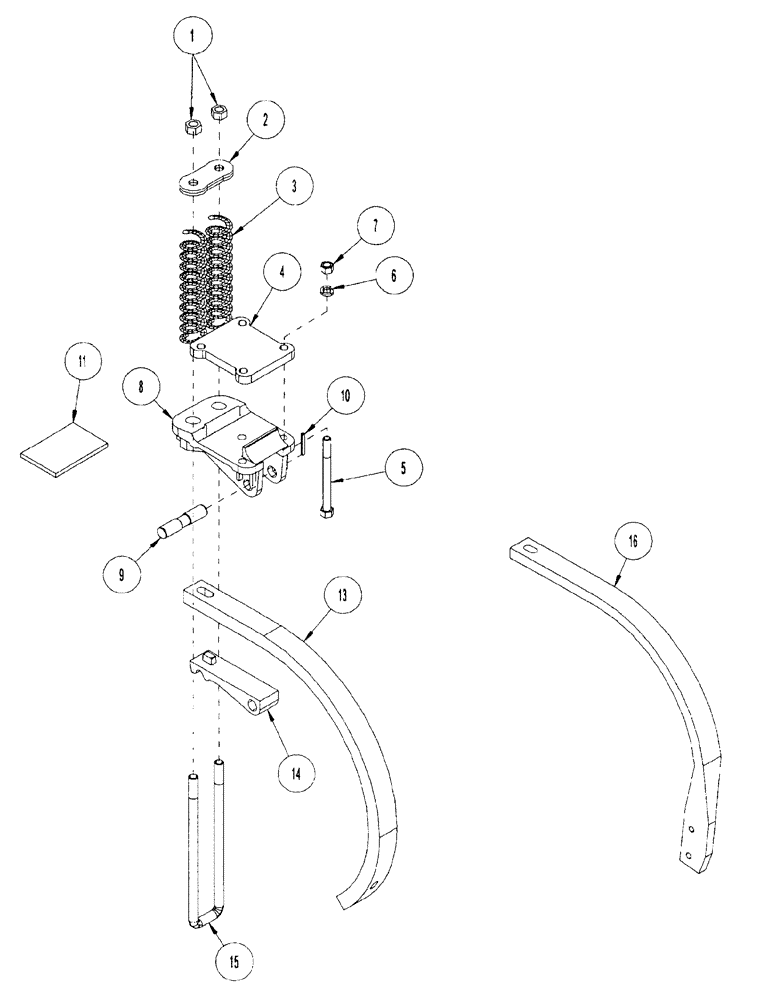

Запчасти Case IH NFX (9-34) - SPRING CUSHION SHANK ASSEMBLY (09) - CHASSIS

1

425-1012

NUT,3/4"-10, G5

2шт.

2

1014836

CASTING

CAP spring

1шт.

3

1014835

SPRING

1/2 x 2-1/4 x 10-7/8 inch

2шт.

4

1021166

PLATE

bolting

1шт.

5

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8 NC x 7 inch, grade 5

4шт.

6

492-11062

BEARING WASHER,5/8"

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

305974A1

HOUSING

cushion shank

1шт.

9

1014837

LARGE PIN,25.4mm OD x 117.48mm L

PIN, LARGE Shank

1шт.

10

38-12032

LOCK PIN,5/16" x 2", Slotted

5/16" x 2", Slotted

2шт.

10

1017046

PIN

roll, 5/16 x 1-5/8, if used

2шт.

11

1019717

BAR

blank

1шт.

13

1027750

SHANK

50-1/2° angle, 1-1/4 x 2 inch, if used

1шт.

14

305973A1

SUPPORT

FLIPPER shank holder

1шт.

15

1014826

U-BOLT

3/4 x 2-7/8 x 14-1/2 inch

1шт.

16

306350A1

SHANK

side mount, 1-1/4 x 2 inch, if used

1шт.
