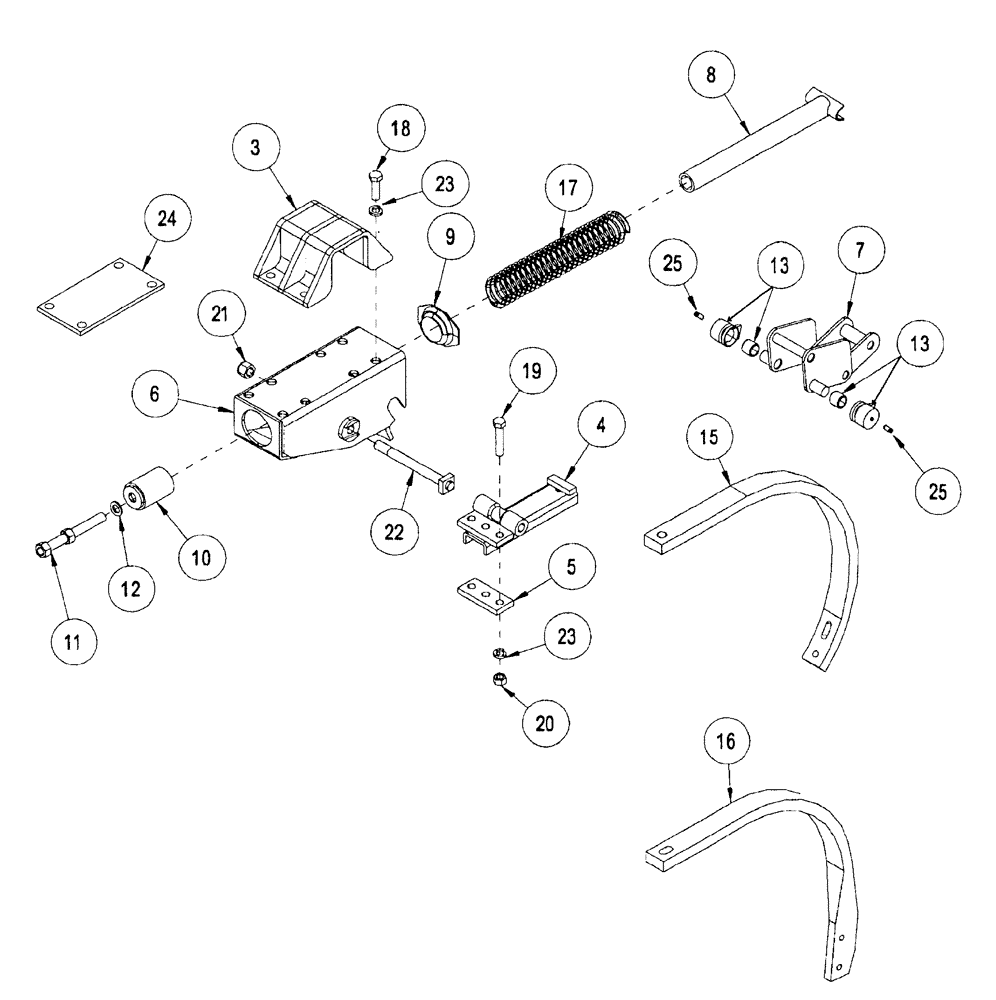

Запчасти Case IH NFX (9-32) - TRIP SHANK ASSEMBLY (09) - CHASSIS

1

1019565

SHANK

trip ASSY. includes all parts below except item 16, assembly no longer available, order components, Includes Ref: 3-25

1шт.

2

1032154

SHANK

trip ASSY. 84° shank, includes all parts below except item 15, assembly no longer available, order components, Includes Ref: 3-25

1шт.

3

1019990

SUPPORT

1шт.

4

1019991

HOLDER

HOLDER shank

1шт.

5

1019992

BAR

clamping

1шт.

6

1019993

HOUSING

HOUSING trip

1шт.

7

1019994

CAM

SHANK

1шт.

8

1019995

GUIDE

spring

1шт.

9

1019996

CAP

spring

1шт.

10

1019927

SPACER

CAP trip tool

1шт.

11

1017589

STEM

ROD adjustment

1шт.

12

495-11081

WASHER,3/4", SAE

1шт.

13

1032344

SUPPORT

BOSS ASSY. cam pivot, includes bushing, spring tension

2шт.

15

1021309

SHANK

53° angle, 1 x 2 inch, if used

1шт.

16

1030504

SHANK

84° side mount (long), 1 x 2 inch, if used

1шт.

16

306357A1

SHANK

84° side mount (short), 1 x 2 inch, if used

1шт.

17

1019999

SPRING

trip

1шт.

18

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

4шт.

18

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, grade 5 (used with 1 spacer)

4шт.

18

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch, grade 5 (used with 2 spacers)

4шт.

19

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

20

425-1010

NUT,5/8"-11, G5

3шт.

21

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

1шт.

22

1021434

PIN

pivot

1шт.

23

492-11062

BEARING WASHER,5/8"

7шт.

24

1019908

LARGE PLATE

PLATE, LARGE SPACER (used without coulters)

1шт.

24

290725A1

SPACER plate (used with coulters)

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
