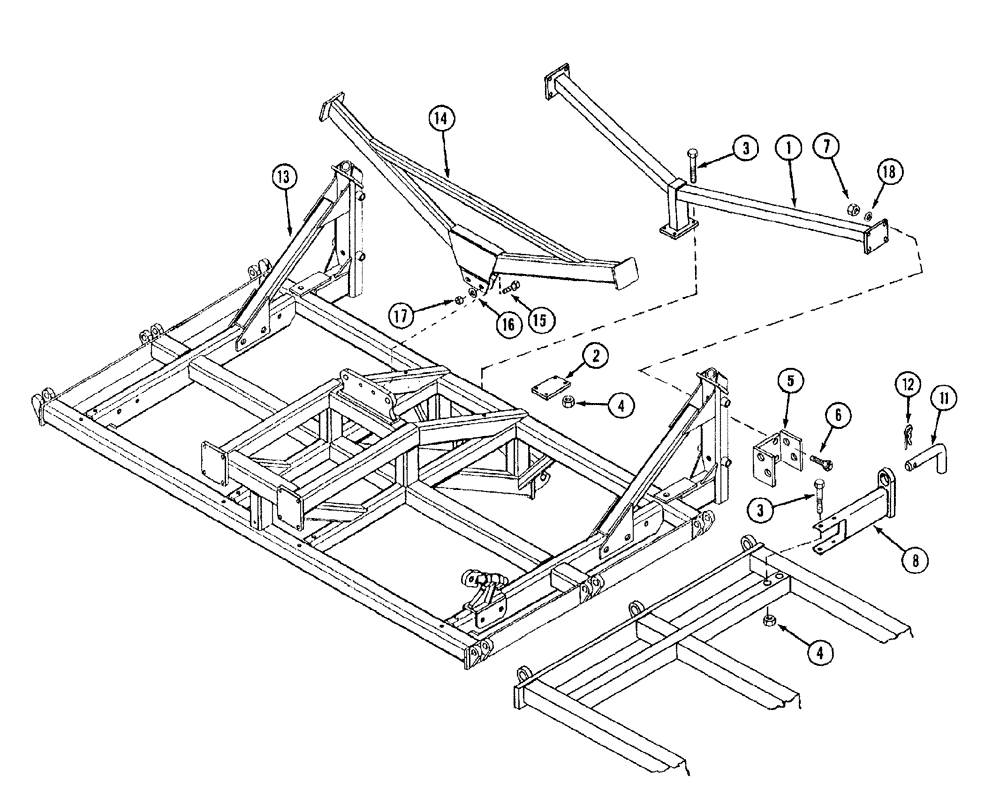

Запчасти Case IH NFX (9-30) - CASTER TOWER BRACE AND WING LOCK (09) - CHASSIS

1

350915A1

CLEVIS COUPLING

BRACE caster tower

1шт.

2

350935A1

PLATE, SPACER

PLATE,SPACER bolting

1шт.

3

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2 NC x 6 inch, grade 5

8шт.

4

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

8шт.

5

350918A1

CLEVIS COUPLING

caster tower brace

2шт.

6

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex, 1/2 NC x 7 inch, grade 5

8шт.

7

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

8шт.

8

350921A1

SUPPORT TUBE

LOCK wing

2шт.

11

1015330

PIN

wing locking

2шт.

12

0100435

HAIR PIN COTTER,M19

2шт.

13

350900A1

FRAME, HITCH

TOWER caster

4шт.

14

1032565

FRAME

stop tower

1шт.

15

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch, grade 5

2шт.

16

495-21081

WASHER,3/4"

flat, 13/16 x 2 x 9/64 inch

4шт.

17

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

8шт.
