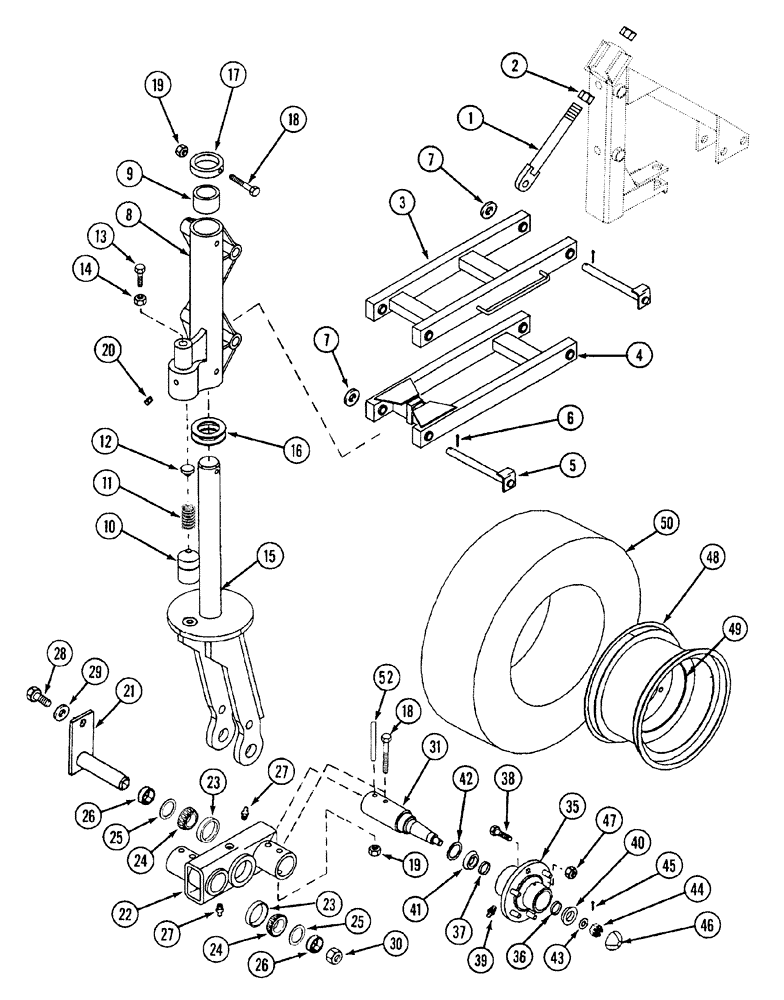

Запчасти Case IH NFX (9-24) - CASTER WHEEL ASSEMBLY - DUAL, MAIN FRAMES AND WING FRAMES (09) - CHASSIS

350931A1

WHEEL caster ASSY. dual, left hand, Includes Ref: 1-30

1шт.

350932A1

WHEEL caster ASSY. dual, right hand, Includes Ref: 1-30

1шт.

1

CON1017152

STEM

ROD adjustment

1шт.

2

425-1024

NUT,1 1/2"-6, G5

hex, 1-1/2 inch NC

2шт.

3

350885A1

ARM ASSY.

top parallel, caster

1шт.

4

350884A1

ARM ASSY.

bottom parallel, caster

1шт.

5

1016941

PIN

pivot

4шт.

6

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

7

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8")

4шт.

1033027

HOUSING

KING PIN ASSY., Includes Ref: 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING king pin, without bushings

1шт.

9

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

bronze

2шт.

10

1033022

BAR

friction plunger

1шт.

11

1033024

SPRING

1шт.

12

1033023

BAR

detent guide

1шт.

13

1033038

BOLT

hex, special, 1 x 3 inch, grade 5

1шт.

14

425-1416

JAM NUT,Jam, 1"-8, G5

jam, 1 inch NC

1шт.

15

350906A1

CASTER ASSY

dual wheel

1шт.

16

1014154

THRUST WASHER

thrust

2шт.

17

1014161

RETAINER

king pin

1шт.

18

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch, grade 5

3шт.

19

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

3шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

7шт.

21

103069A2

PIN

pivot

1шт.

22

350910A1

BEAM ASSY.

WALK front caster

1шт.

23

453012R1

BEARING CUP

tapered roller

2шт.

24

8050528

ROLLER BEARING

tapered roller

2шт.

25

103066A1

WASHER,38.9mm ID x 53.98mm OD x 4mm Thk

spacer

2шт.

26

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

1-1/2 I.D. x 1-3/4 O.D. x 3/4 inch

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

28

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

hex, 3/4 NC x 1 inch, grade 5

1шт.

29

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

30

131-1419

NUT,1 1/2"-6, Thin

hex, thin, 1-1/2 inch NC

1шт.

350931A1

CASTER WHEEL ASSY. dual, left hand, continued, Includes Ref: 31-47

1шт.

350932A1

CASTER WHEEL ASSY. dual, right hand, continued, Includes Ref: 31-47

1шт.

1032632

HUB ASSY.

SPINDLE includes hub assembly, complete, Includes Ref: 31-47

1шт.

31

1032656

BAR

SPINDLE wheel

1шт.

1023733

BEARING HOUSING

complete, Includes Ref: 35-47

2шт.

35

1016175

HUB

ASSY., Includes Ref: 36, 37, 38

1шт.

36

651817R1

BEARING CUP

tapered roller, 2-21/64 inch O.D.

1шт.

37

663558R1

BEARING CUP

tapered roller, 2-57/64 inch O.D.

1шт.

38

1016176

STEP BOLT

lug

6шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

40

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4 inch I.D.

1шт.

41

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch I.D.

1шт.

42

62610C1

OIL SEAL,57.15mm ID x 77.88mm OD x 6.35mm Thk

wheel bearing

1шт.

43

1012377

WASHER

flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

44

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

45

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

46

2700508-01

CAP

hub

1шт.

47

1016177

WHEEL NUT

lug, 9/16 inch NF

6шт.

REF

INSTRUCTION

TIRE ASSY. mounted, order from machinery price list, Includes Ref: 48-51

2шт.

48

1032204

RIM

WHEEL silver, 15 x 8, 6 hole

1шт.

49

1012383

VALVE STEM

inflation stem

1шт.

50

1032203

TYRE/TIRE

9.5L x 15, 8 ply, order from machinery price list

1шт.

51

1033093

SEALANT

tire, 1 liter bottle (not shown)

1шт.

51

1033092

SEALANT

tire, 55 gallon drum (not shown)

1шт.

52

438-33256

PIN,1/2" x 3 1/2", Coiled

1/2" x 3 1/2", Coiled

2шт.
