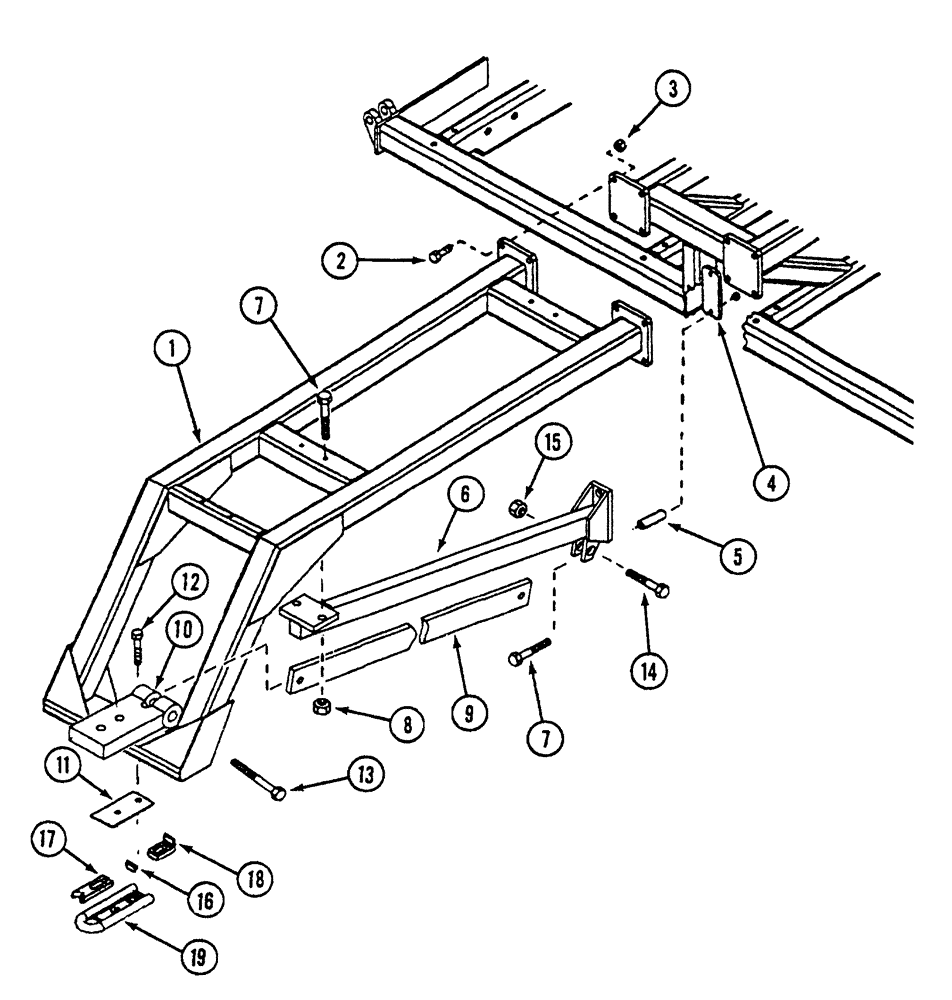

Запчасти Case IH NFX (9-22) - REAR HITCH (09) - CHASSIS

1

1032550

HITCH ASSY

FRAME rear

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

3

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

10шт.

4

1032559

BAR

PLATE bolting

1шт.

5

1032561

TUBE,15.9 mm ID, 31.81.25 mm OD

SPACER

1шт.

6

1032560

HITCH ASSY

BRACE

1шт.

7

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, 1/2 NC x 6 inch, grade 5

4шт.

8

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

4шт.

9

1026887

BAR

brace

1шт.

10

350924A1

DRAWBAR, SWINGING

1шт.

11

1032746

PLATE

top, hitch

1шт.

12

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch, grade 5

2шт.

13

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

hex, 1 NC x 6 inch, grade 5

1шт.

14

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

hex, 1 NC x 3-1/2 inch, grade 5

1шт.

15

232-14416

NUT,1"-8, GC

2шт.

16

1032751

CUSHION

hitch

1шт.

17

1032747

BLOCK

V-hitch

1шт.

18

1032748

HITCH BRACKET

angle

1шт.

19

1032749

HITCH

BASE

1шт.
