Запчасти Case IH NFX (9-20) - WALKBEAM WRENCH MOUNTING (09) - CHASSIS

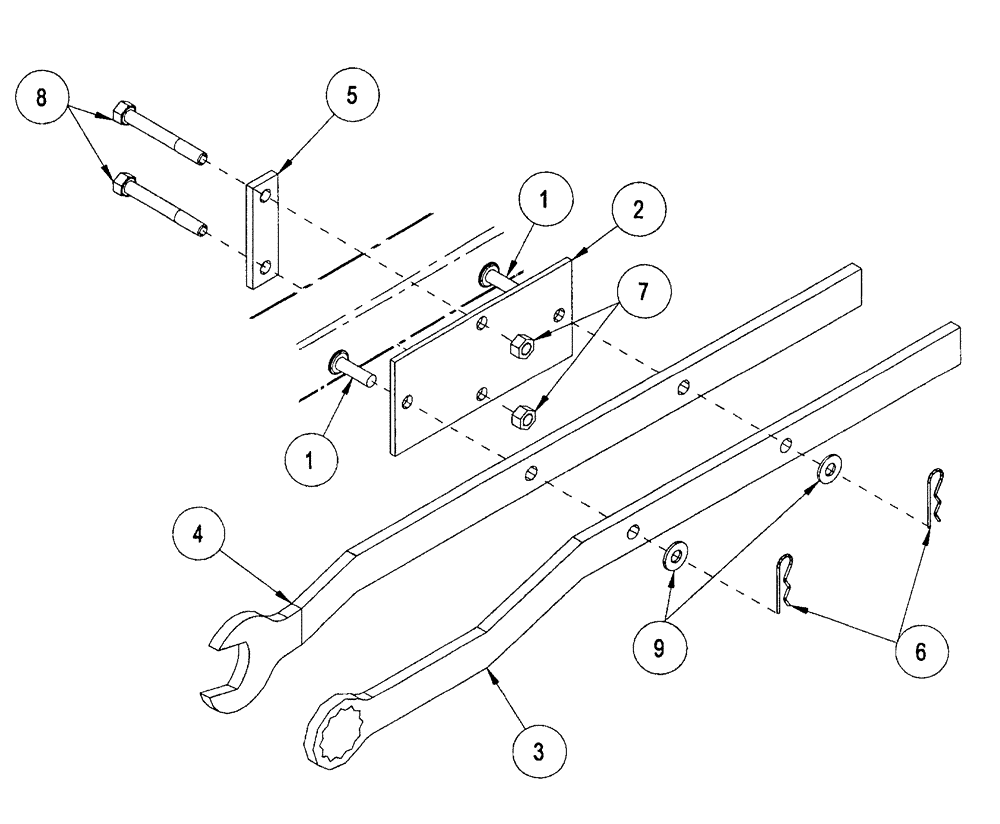

Схема запчастей Case IH NFX - (9-20) - WALKBEAM WRENCH MOUNTING (09) - CHASSIS
6
8
2
7
4
9
1
5
1
3

Артикул

Название

Примечание

Количество

1

1027168

CLEVIS PIN

3/8 x 1-1/4 inch

2шт.

2

1027167

PLATE

bolting

1шт.

3

1027014

SPECIAL WRENCH

outside

1шт.

4

1027004

SPECIAL WRENCH

inside

1шт.

5

1024345

LARGE PLATE

PLATE, LARGE bolting

1шт.

6

1024044

HAIR PIN COTTER,5.2mm x 41mm L

hair, 3/32 x 1-5/8 inch

2шт.

7

232-1446

NUT,3/8"-16, GC

2шт.

8

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

Выбрано товаров: 9
