Запчасти Case IH NFX (9-18) - PACKER WHEELS AND TIRES, WHEEL ASSEMBLIES, PACKER TIRES, MOUNTED AND UNMOUNTED (09) - CHASSIS

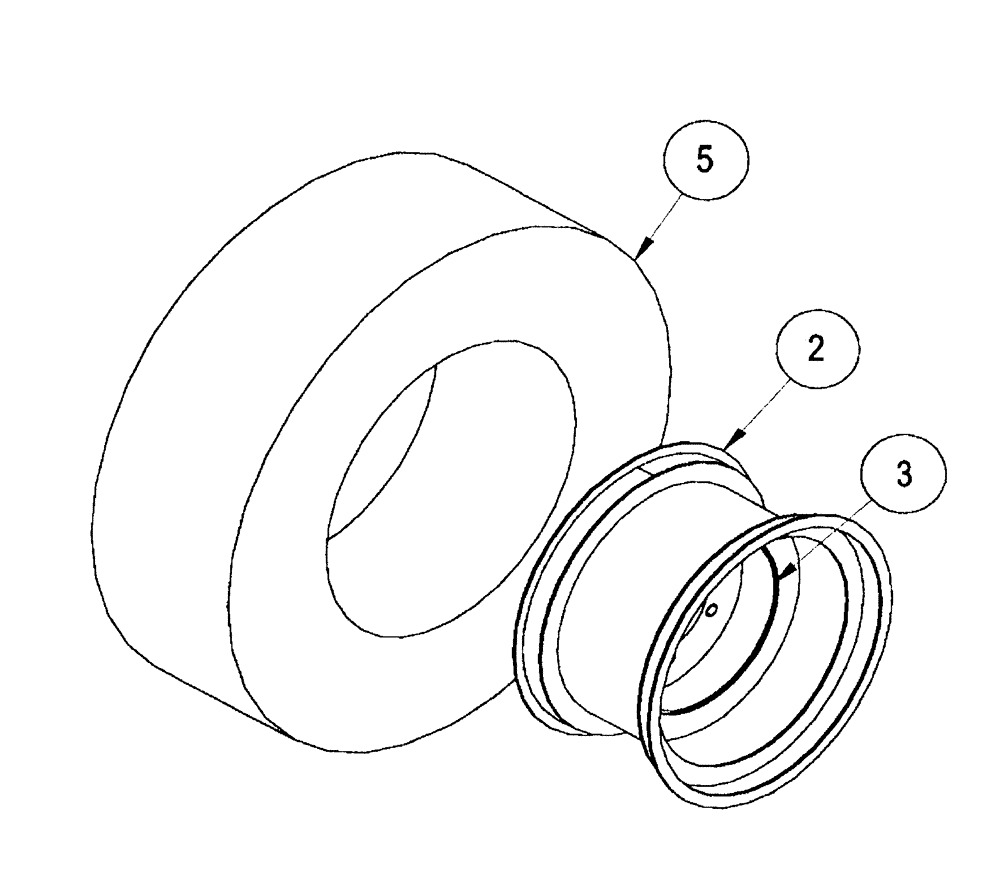

Схема запчастей Case IH NFX - (9-18) - PACKER WHEELS AND TIRES, WHEEL ASSEMBLIES, PACKER TIRES, MOUNTED AND UNMOUNTED (09) - CHASSIS
5
3
2

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

WHEEL ASSY. complete (see Packer tires mounted below for available sizes), Includes Ref: 2-5

1шт.

2

1030857

WHEEL

Packer, 4 hole, with valve protector, 15 x 4-1/2 inch, wheel assembly

1шт.

3

1018564

VALVE

Packer, inflation stem, wheel assembly

1шт.

4

1033093

SEALANT

tire, 1 liter bottle (not shown) (see Packer tires unmounted below for amount required), wheel assembly

1шт.

4

1033092

SEALANT

tire, 55 gallon drum (not shown) (see Packer tires unmounted below for amount required), wheel assembly

1шт.

5

REF

INSTRUCTION

TIRE, Packer (see Packer tires unmounted below for available sizes), wheel assembly

1шт.

1

1032373

TYRE/TIRE

WHEEL ASSY., Packer, P205-15 radial, tires mounted with tube, order from machinery price list

1шт.

1

1032367

TYRE/TIRE

WHEEL ASSY., Packer, 5.00-15 4 ply, tires mounted with tube, order from machinery price list

1шт.

1

1032386

TYRE/TIRE

WHEEL ASSY., Packer, 165S-15 radial, tires mounted with tube, order from machinery price list

1шт.

1

1032385

TYRE/TIRE

WHEEL ASSY., Packer, P205/75R15 recap radial, tires mounted with tube, order from machinery price list

1шт.

1

1032384

TIRE TUBE

WHEEL ASSY., Packer, 6.70-15 4 ply, tires mounted with tube, order from machinery price list

1шт.

1

1032383

TIRE TUBE

WHEEL ASSY., Packer, 5.90-15 4 ply, tires mounted with tube, order from machinery price list

1шт.

1

1030013

WHEEL ASSY., Packer, 7.60-15 4 ply, tires mounted with sealant, order from machinery price list

1шт.

1

1032374

TYRE/TIRE

WHEEL ASSY., Packer, P205-15 radial, tires mounted with sealant, order from machinery price list

1шт.

1

1032368

TYRE/TIRE

WHEEL ASSY., Packer, 5.00-15 4 ply, tires mounted with sealant, order from machinery price list

1шт.

1

1032391

TYRE/TIRE

WHEEL ASSY., Packer, 165S-15 radial, tires mounted with sealant, order from machinery price list

1шт.

1

1032390

TYRE/TIRE

WHEEL ASSY., Packer, P205/75R15 recap radial, tires mounted with sealant, order from machinery price list

1шт.

1

1032389

TYRE/TIRE

WHEEL ASSY., Packer, 6.70-15 4 ply, tires mounted with sealant, order from machinery price list

1шт.

1

1032388

TYRE/TIRE

WHEEL ASSY., Packer, 5.90-15 4 ply, mounted with sealant, order from machinery price list

1шт.

1

290720A1

WHEEL ASSY

WHEEL ASSY., Packer, 6.50-15 4 ply, mounted with sealant, order from machinery price list

1шт.

5

1021377

TYRE/TIRE

Packer, 7.60-15 4 ply (install using 1.4 liter (47 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1032375

TYRE/TIRE

Packer, 205-15 radial (install using 1.2 liter (40 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1013445

TYRE/TIRE

Packer, 5.00-15 4 ply (install using 0.8 liter (27 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1022830

TYRE/TIRE

Packer, 165S-15 radial (install using 0.8 liter (27 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1025920

TYRE/TIRE

Packer, P205/75R15 recap radial (install using 1.2 liter (40 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1013404

TYRE/TIRE

Packer, 6.70-15 4 ply (install using 1.2 liter (40 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

1019890

TYRE/TIRE

Packer, 5.90-15 4 ply (install using 0.8 liter (27 oz.) of sealant), unmounted, order from machinery price list

1шт.

5

290719A1

TYRE/TIRE

Packer, 6.50-15 4 ply (install using 1.2 liter (40 oz.) of sealant), unmounted, order from machinery price list

1шт.
