Запчасти Case IH NFX (9-16) - WALKBEAM ASSEMBLY, PACKER (09) - CHASSIS

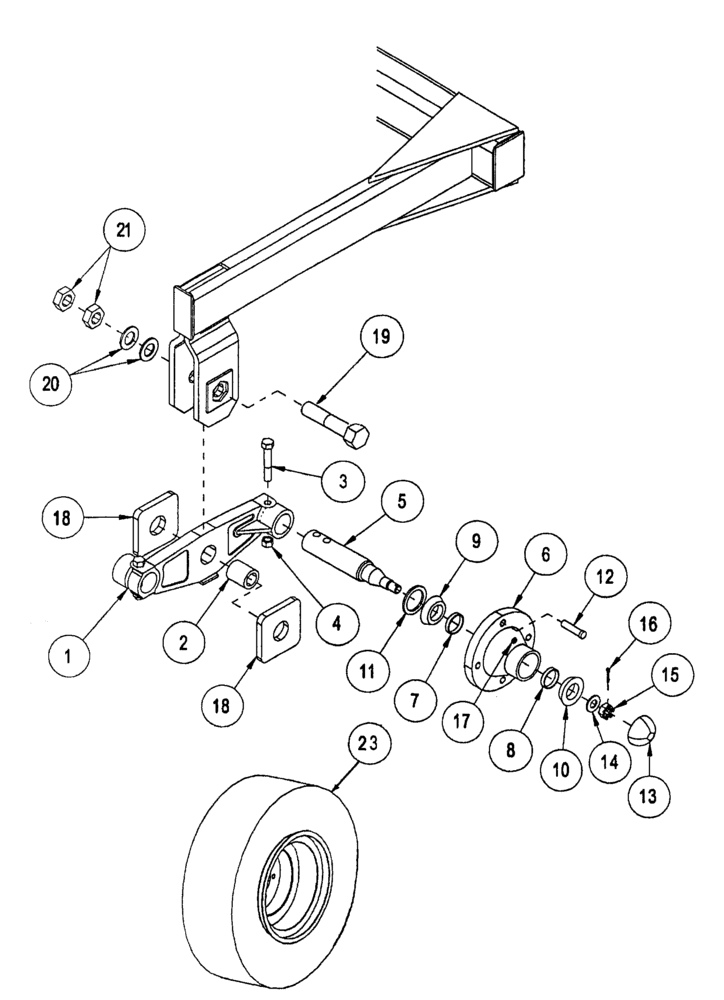

Схема запчастей Case IH NFX - (9-16) - WALKBEAM ASSEMBLY, PACKER (09) - CHASSIS
21
13
5
2
6
23
17
11
12
19
14
3
15
16
18
7
1
10
18
4
8
9
20

Артикул

Название

Примечание

Количество

312600A1

BEAM

WALK ASSY. 10 inch, includes hub, Includes Ref:1-17

1шт.

312601A1

BEAM

WALK ASSY. 12 inch, includes hub, Includes Ref: 1-17

1шт.

1029542

BEAM

WALK ASSY., Includes Ref: 1, 2

1шт.

1

1029541

BEAM

WALK 10 inch and 12 inch drills

1шт.

2

1030050

BUSHING,25.81mm ID x 38.18mm OD x 44.45mm L

tube, 1 x 1-1/2 x 1-3/4 inch

1шт.

3

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

4

231-1448

NUT,1/2"-13, GB

hex, self locking, NC

2шт.

312602A2

AXLE

SPINDLE ASSY. includes hub, Includes Ref: 5-13

2шт.

5

312599A1

SPINDLE

SPINDLE wheel

1шт.

351044A1

HUB

ASSY. complete, Includes Ref: 6-13

1шт.

6

NSS

NOT SOLD SEPARAT

HUB ASSY. order 351044A1 assembly, Includes Ref: 7, 8

1шт.

7

651817R1

BEARING CUP

tapered roller, 2-21/64 inch O.D.

1шт.

8

651814R1

BEARING CUP

tapered roller, 1-25/32 inch O.D.

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4 inch I.D.

1шт.

10

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, 3/4 inch I.D.

1шт.

10

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

11

312598A1

SEAL

wheel bearing, triple lip

1шт.

12

1013597

WHEEL BOLT

lug, wheel, 1/2 NF x 3/4 inch

4шт.

13

1013622

CAP

hub

1шт.

14

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

flat, 21/32 x 1-5/16 x 3/32 inch, hardened

1шт.

15

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

16

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

17

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

18

1026129

PAD

PAD polyethylene, standard

2шт.

18

1026499

SKID/SHOE

PAD, Nylatron, optional

2шт.

19

1026375

BOLT

pivot, special

1шт.

20

1016663

WASHER

flat, 1-1/16 x 2 x 5/32 inch

2шт.

21

425-1416

JAM NUT,Jam, 1"-8, G5

jam, 1 inch NC

2шт.

22

1027081

GREASE

COMPOUND anti-seize (apply to bolt 1026375 item 19)

1шт.

23

REF

INSTRUCTION

WHEEL ASSY. complete (parts list figure 9-18)

1шт.

Выбрано товаров: 30
