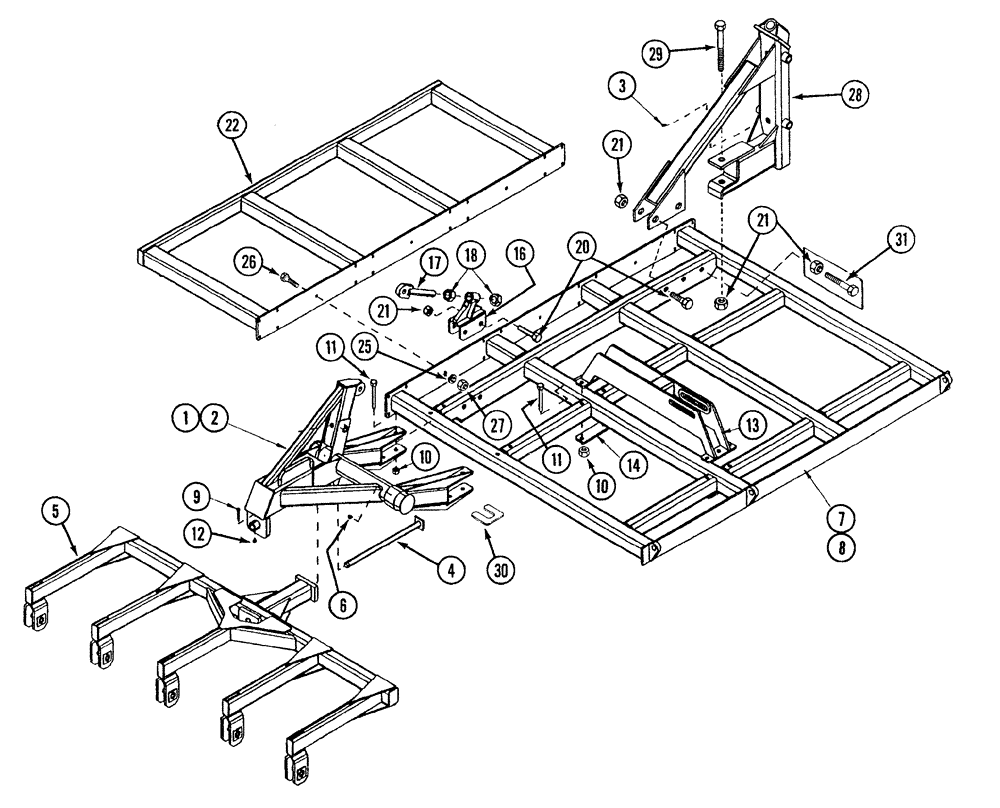

Запчасти Case IH NFX (9-10) - WING FRAME 4 RANK, 2310, 2710, 3010, 2412, AND 2812 DRILLS (09) - CHASSIS

1

1032710

ROCKSHAFT

right hand (3010 drill)

1шт.

1

1032716

ROCKSHAFT

right hand (2310 drill)

1шт.

1

1032714

ROCKSHAFT

right hand (2412 drill)

1шт.

1

1032712

ROCKSHAFT

right hand (2812 and 2710 drills)

1шт.

2

1032709

ROCKSHAFT

left hand (3010 drill) (shown)

1шт.

2

1032715

ROCKSHAFT

left hand (2310 drill)

1шт.

2

1032713

ROCKSHAFT

left hand (2412 drill)

1шт.

2

1032711

ROCKSHAFT

left hand (2812 and 2710 drills)

1шт.

3

219-3

LUBE NIPPLE,1/8" - 27 NPTF

straight, 1/8 PT x 1-1/4 inch

1шт.

4

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90°, 1/4-28 taper x 3/4 inch

2шт.

5

1029695

FRAME

wheel gang (3010 drill) (shown)

1шт.

5

1029697

FRAME

wheel gang (2310 drill)

1шт.

5

1029700

FRAME

FRAME gang (2412 drill)

1шт.

5

1029699

FRAME

wheel gang (2812 drill)

1шт.

5

1029696

FRAME

wheel gang (2710 drill)

1шт.

6

1017002

PIN

pivot

1шт.

7

1032806

SUPPORT

FRAME wing, right-hand

1шт.

8

1032805

SUPPORT

FRAME wing, left hand (shown)

1шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

10

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

8шт.

11

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch, grade 5

8шт.

12

232-1446

NUT,3/8"-16, GC

1шт.

13

1032625

FRAME

wing lift

1шт.

14

1032624

BAR

bolting

2шт.

1032620

CYLINDER ASSY.

ANCHOR, Includes Ref: 16, 17, 18

1шт.

16

1032615

ANCHOR

cylinder

1шт.

17

1032614

ROD, ADJUSTMENT

ROD, ADJUSTING

1шт.

18

425-1024

NUT,1 1/2"-6, G5

hex, 1-1/2 inch NC

2шт.

20

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

hex, 1 NC x 5 inch, grade 5

5шт.

21

232-14416

NUT,1"-8, GC

5шт.

22

1032810

FRAME ASSY

wing extension (3010 drill) (shown)

1шт.

22

1032811

FRAME ASSY

wing extension (2812 drill)

1шт.

22

1032812

FRAME ASSY

wing extension (2710 drill)

1шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

14шт.

26

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2 NC x 1-1/2 inch, grade 5

14шт.

27

231-4248

NUT,1/2"-13, GB

14шт.

28

350900A1

FRAME, HITCH

TOWER caster

1шт.

29

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1 NC x 8 inch

1шт.

30

351549A1

SHIM

module mounting

1шт.

31

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch (if required) .

1шт.
