Запчасти Case IH NFX (9-06) - MAIN FRAME 4 RANK (09) - CHASSIS

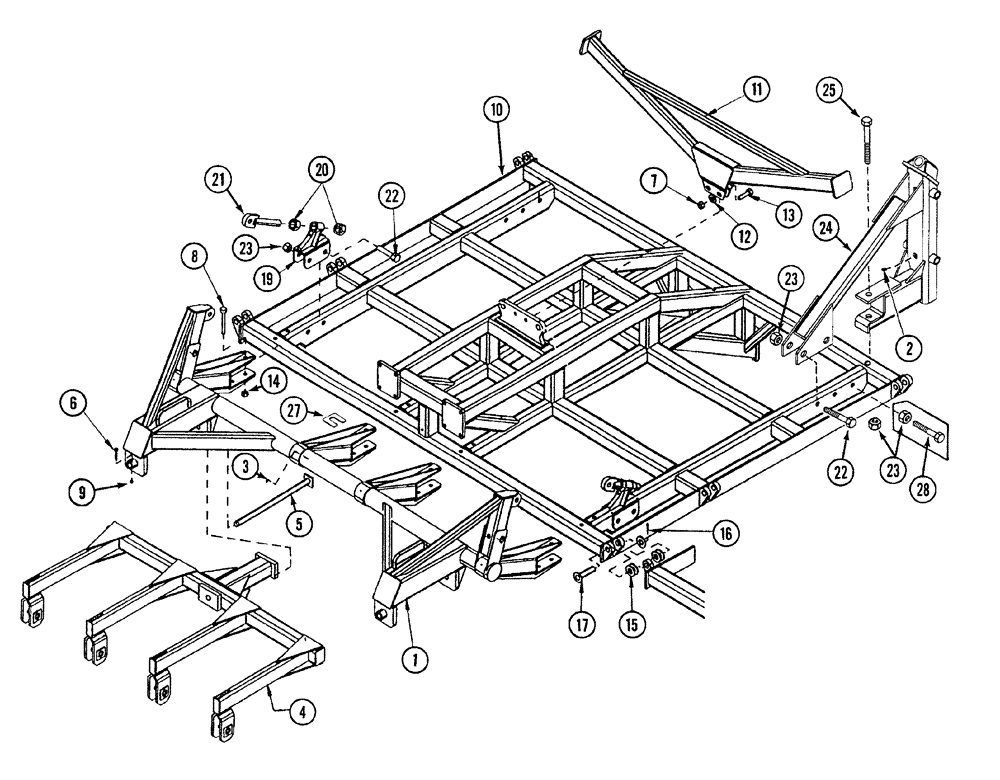

Схема запчастей Case IH NFX - (9-06) - MAIN FRAME 4 RANK (09) - CHASSIS
25
23
11
2
4
10
23
22
9
7
23
14
6
3
12
19
27
28
1
5
21
22
13
17
16
20
15
8
24

Артикул

Название

Примечание

Количество

1

1032700

ROCKSHAFT

(2010, 2310, 2710 and 3010 drills)

1шт.

1

1032705

ROCKSHAFT

(2012, 2412 and 2812 drills)

1шт.

2

219-3

LUBE NIPPLE,1/8" - 27 NPTF

straight, 1/8 PT x 1-1/4 inch

4шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

90°, 1/4-28 taper x 3/4 inch

4шт.

4

1029696

FRAME

wheel gang (2010, 2310, 2710 and 3010 drills)

2шт.

4

1029700

FRAME

FRAME gang (2012, 2412 and 2812 drills)

2шт.

5

1017002

PIN

pivot

2шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

7

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch, grade 5

8шт.

9

232-1446

NUT,3/8"-16, GC

2шт.

10

1032800

SUPPORT

FRAME main, 4 rank

1шт.

11

1032565

FRAME

stop tower .

1шт.

12

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch, grade 5

2шт.

13

495-21081

WASHER,3/4"

flat, 13/16 x 2 x 9/64 inch

4шт.

14

232-14412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

8шт.

15

1016950

WASHER

flat, 1-5/16 x 2-1/2 x 5/32 inch

30шт.

16

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

6шт.

17

1015235

PIN

hinge.

6шт.

1032620

CYLINDER ASSY.

ANCHOR, Includes Ref: 19, 20, 21

2шт.

19

1032615

ANCHOR

cylinder

1шт.

20

425-1024

NUT,1 1/2"-6, G5

hex, 1-1/2 inch NC

2шт.

21

1032614

ROD, ADJUSTMENT

ROD, ADJUSTING

1шт.

22

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

hex, 1 NC x 5 inch, grade 5

1шт.

23

232-14416

NUT,1"-8, GC

10шт.

24

350900A1

FRAME, HITCH

TOWER caster

2шт.

25

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1 NC x 8 inch

2шт.

27

351549A1

SHIM

module mounting

1шт.

28

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch (if required)

1шт.

Выбрано товаров: 29
