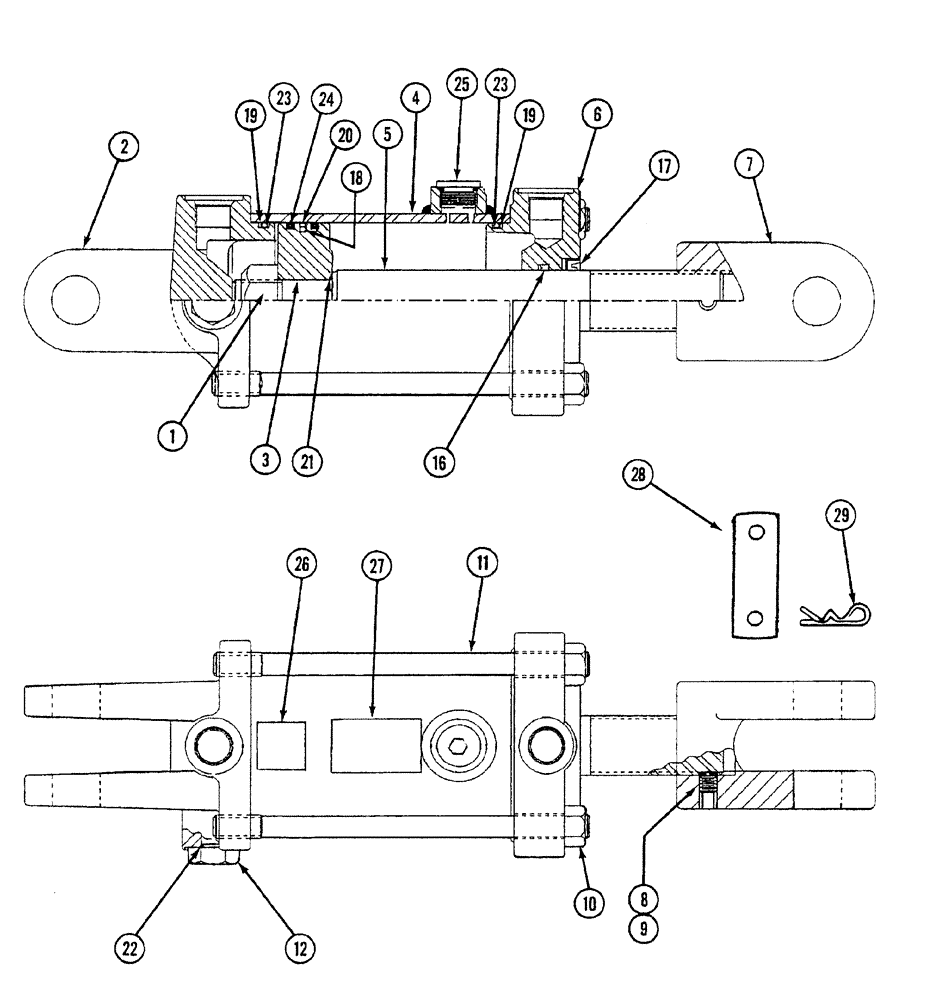

Запчасти Case IH NFX (8-18) - HYDRAULIC DEPTH CONTROL CYLINDER 3-1/2 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

1026896

HYDRAULIC CYLINDER

89 mm (3-1/2) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, Includes Ref: 1-27

2шт.

1

H438714

LOCK NUT,7/8" - 14

hex, self locking

1шт.

2

1272825C1

HEAD

cylinder, two ports

1шт.

3

100433A1

PISTON

cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

6

1030826

ROD ASSY.

piston

1шт.

7

145233C1

CLEVIS,1/4" - 12

rod end

1шт.

8

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

10

NSS

NOT SOLD SEPARAT

NUT hex, 1/2 inch NC

4шт.

11

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD BOLT tie, cylinder

4шт.

12

NSS

NOT SOLD SEPARAT

PLUG

1шт.

16

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Part of Seal Kit P/N 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit P/N 84919C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 84919C2

1шт.

19

NSS

NOT SOLD SEPARAT

BACK-UP

2шт.

Part of Seal Kit P/N 84919C2

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 84919C2

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 84919C2

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 84919C2

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of Seal Kit P/N 84919C2

1шт.

24

NSS

NOT SOLD SEPARAT

RING wear

2шт.

Part of Seal Kit P/N 84919C2

1шт.

25

143204A1

PLUG

hex socket, special, 3/4-16 inch o-ring boss

1шт.

26

NSS

NOT SOLD SEPARAT

DECAL 3-1/2

1шт.

27

NSS

NOT SOLD SEPARAT

DECAL cylinder identification

1шт.

28

1923593C1

PIN

clevis, 1 inch, (if used)

2шт.

28

312950A2

HEADED PIN,25.4mm OD x 89.8mm L

1 x 3-5/32 inch (not shown) (if used)

2шт.

29

1030840

RETAINER

PIN cotter, hairpin (if used)

4шт.

29

38-11224

PIN slotted spring, 3/16 x 1-1/2 inch (not shown) (if used)

4шт.

29

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

(not shown) (if used) 7/32" x 1 1/2", Slotted

2шт.

84919C2

GASKET KIT

seal, includes: REF. 16 - 24

1шт.
