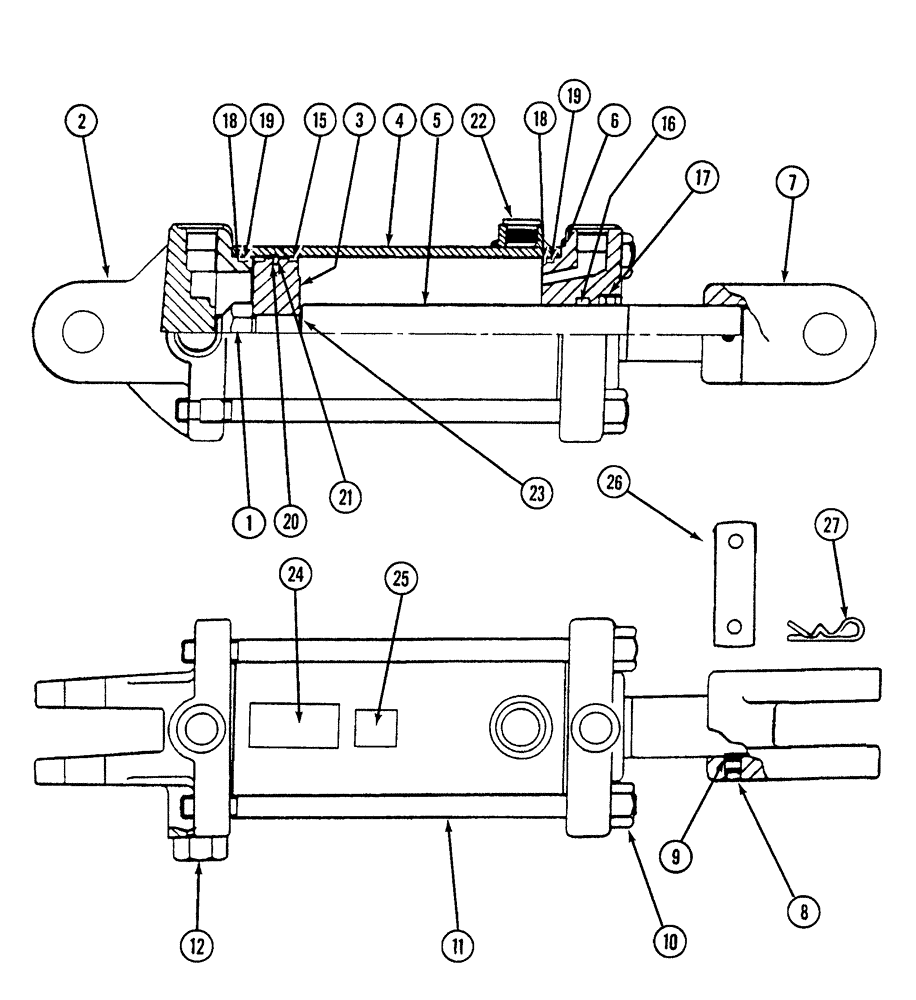

Запчасти Case IH NFX (8-16) - HYDRAULIC DEPTH CONTROL CYLINDER 3-3/4 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1026897
HYDRAULIC CYLINDER
95 mm (3-3/4) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, Includes Ref: 1-25
2шт.
1
H438714
LOCK NUT,7/8" - 14
hex, self-locking
1шт.
2
1285799C1
HEAD
GLAND cylinder
1шт.
3
92520C1
PISTON
cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
TUBE cylinder
1шт.
5
1267056C1
ROD
piston
1шт.
6
1285798C1
END
GLAND cylinder
1шт.
7
1267057C1
CLEVIS,3/8" - 16
rod end
1шт.
8
483-1386
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
set, hex socket headless, 3/8 NC x 3/8 inch, cup point
1шт.
9
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD insert
1шт.
10
NSS
NOT SOLD SEPARAT
NUT
4шт.
11
142461C1
TIE-ROD,Tie, 5/8" - 11 x 335mm
BOLT cylinder tie
4шт.
12
NSS
NOT SOLD SEPARAT
PLUG
1шт.
15
NSS
NOT SOLD SEPARAT
RING wear, piston
2шт.
16
NSS
NOT SOLD SEPARAT
U-CUP
1шт.
Part of Seal Kit P/N 80115C2
1шт.
17
NSS
NOT SOLD SEPARAT
WIPER
1шт.
Part of Seal Kit P/N 80115C2
1шт.
18
NSS
NOT SOLD SEPARAT
O-RING
2шт.
Part of Seal Kit P/N 80115C2
1шт.
19
NSS
NOT SOLD SEPARAT
BACK-UP
2шт.
Part of Seal Kit P/N 80115C2
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL piston
1шт.
Part of Seal Kit P/N 80115C2
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of Seal Kit P/N 80115C2
1шт.
22
143204A1
PLUG
hex socket, special, 3/4-16 inch o-ring boss
1шт.
23
NSS
NOT SOLD SEPARAT
O-RING
1шт.
Part of Seal Kit P/N 80115C2
1шт.
24
NSS
NOT SOLD SEPARAT
DECAL
1шт.
25
NSS
NOT SOLD SEPARAT
DECAL
1шт.
26
1923593C1
PIN
clevis, 1 inch, (if used)
2шт.
26
312950A2
HEADED PIN,25.4mm OD x 89.8mm L
1 x 3-5/32 inch (not shown) (if used)
2шт.
27
1030840
RETAINER
PIN cotter, hairpin (if used)
4шт.
27
38-11224
PIN slotted spring, 3/16 x 1-1/2 inch (not shown) (if used)
4шт.
27
38-11424
LOCK PIN,7/32" x 1 1/2", Slotted
(not shown) (if used) 7/32" x 1 1/2", Slotted
2шт.
80115C2
SEAL KIT
includes: REF. 16 -21 & 23
1шт.
Выбрано товаров: 37
