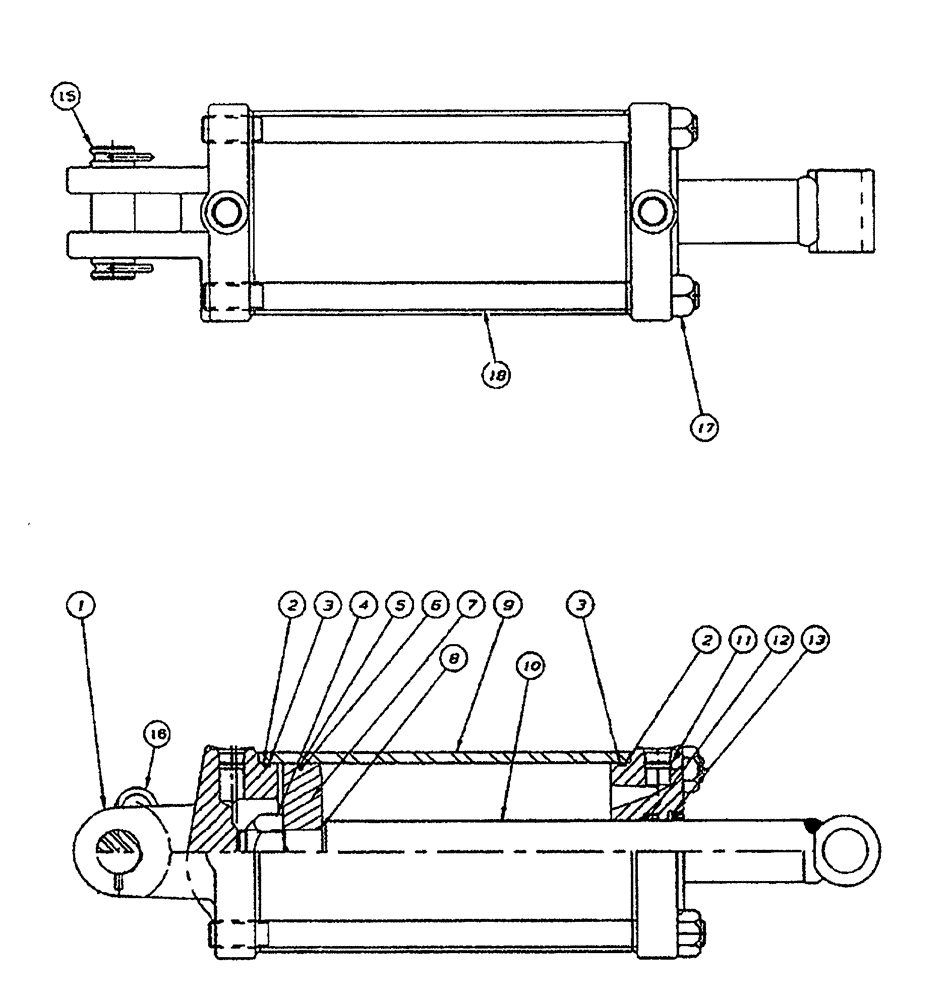

Запчасти Case IH NFX (8-08) - HYDRAULIC LIFT CYLINDER 4 INCH BORE X 30 INCH STROKE (08) - HYDRAULICS

350720A1

HYDRAULIC CYLINDER

102 mm (4) I.D. x 762 mm (30 inch) stroke, Iowa Hydraulics, includes: REF. 19 & 20, (2010, 2012, 2310 and 2412 drills), Includes Ref: 1-18

1шт.

1016796

CYLINDER

ASSY. 102 mm (4) I.D. x 762 mm (30 inch) stroke, not available separately, order 350720A1, cylinder assembly, Includes Ref: 1-18

1шт.

1

1282336C1

HEAD

cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

BACKUP

2шт.

Part of Seal Kit P/N 79979C3

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of Seal Kit P/N 79979C3

1шт.

4

NSS

NOT SOLD SEPARAT

LOCKNUT

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Kit P/N 79979C3

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 79979C3

1шт.

7

149930C2

PISTON

cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit P/N 79979C3

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

10

1030412

SHAFT

cylinder

1шт.

11

1282337C1

GLAND

GLAND cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Part of Seal Kit P/N 79979C3

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit P/N 79979C3

1шт.

15

1030839

PIN

1-1/4 x 3 inch

1шт.

16

1030840

RETAINER

PIN cotter

1шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

NSS

NOT SOLD SEPARAT

ROD tie

4шт.

19

1019844

FITTING

restrictor, 3/4-16 flare, (see figure 8-02)

1шт.

20

1014852

ELBOW,90 Degree, 3/4"-16 O-Ring x 3/4"-16, 37 Degree

elbow, 90° 3/4-16 flare x o-ring boss, (see figure 8-02)

1шт.

79979C3

SEAL KIT

includes: REF. 2, 3, 5, 6, 8, 12 & 13

1шт.
