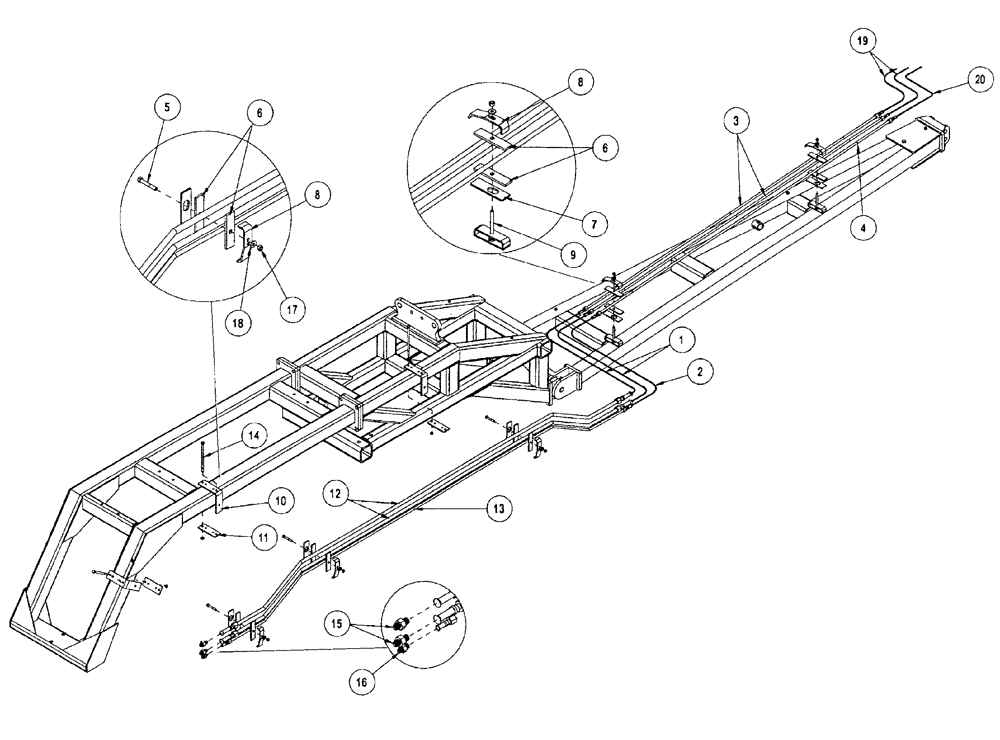

Запчасти Case IH NFX (8-06) - HYDRAULIC TANK TO TRACTOR SYSTEM (08) - HYDRAULICS

1

1033036

HYDRAULIC HOSE,0.75" ID x 36.00"

(Used on all 3 rank drills) - 12JICM both

2шт.

1

1018136

HOSE ASSY.

1524 mm (60 inch) long, 19 mm (3/4 inch) I.D. (used on all 4 rank drills) -12JICM both

2шт.

2

1033035

HYDRAULIC HOSE,0.38" ID x 36.00", SAE 100R1

(Used on all 3 rank drills) -8JICM both

1шт.

2

1018135

HOSE ASSY.

1524 mm (60 inch) long, 9.5 mm (3/8 inch) I.D. (used on all 4 rank drills) -8JICM both

1шт.

3

1026745

TUBE,0.75" Diameter, 108" Length

hydraulic, 3/4 x 108 inch

2шт.

4

1026743

HYD TUBE,0.5" Diameter, 108" Length

hydraulic, 1/2 x 108 inch

1шт.

5

1026715

SELF-TAP SCREW

hex, 3/8 NC x 2-1/2 inch

2шт.

6

1026714

ISOLATOR

5 inch

10шт.

7

1026713

CLAMP

backing

5шт.

8

1026712

CLAMP

5шт.

9

1026677

STUD

3/8 NC x 3-1/4 inch

2шт.

10

1026124

SUPPORT

BRACKET angle

3шт.

11

1026123

BAR

bolting

3шт.

12

1026113

HYD TUBE,3454 mm Length

hydraulic, 3/4 inch

2шт.

13

1026112

HYD TUBE,3454 mm Length

hydraulic, 1/2 inch

1шт.

14

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

6шт.

15

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER straight, 1-1/16-12 flare x 1 inch PT

2шт.

16

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

straight, 3/4-16 flare x 1/2 inch PT

1шт.

17

232-1446

NUT,3/8"-16, GC

11шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

5шт.

19

1018134

HYDRAULIC HOSE

2438 mm (96 inch) long, 19 mm (3/4 inch) I.D.-12JICM/-8NPTM

2шт.

20

1018133

HYDRAULIC HOSE

2438 mm (96 inch) long, 9.5 mm (3/8 inch) I.D.-8JICM/-8NPTM

1шт.
