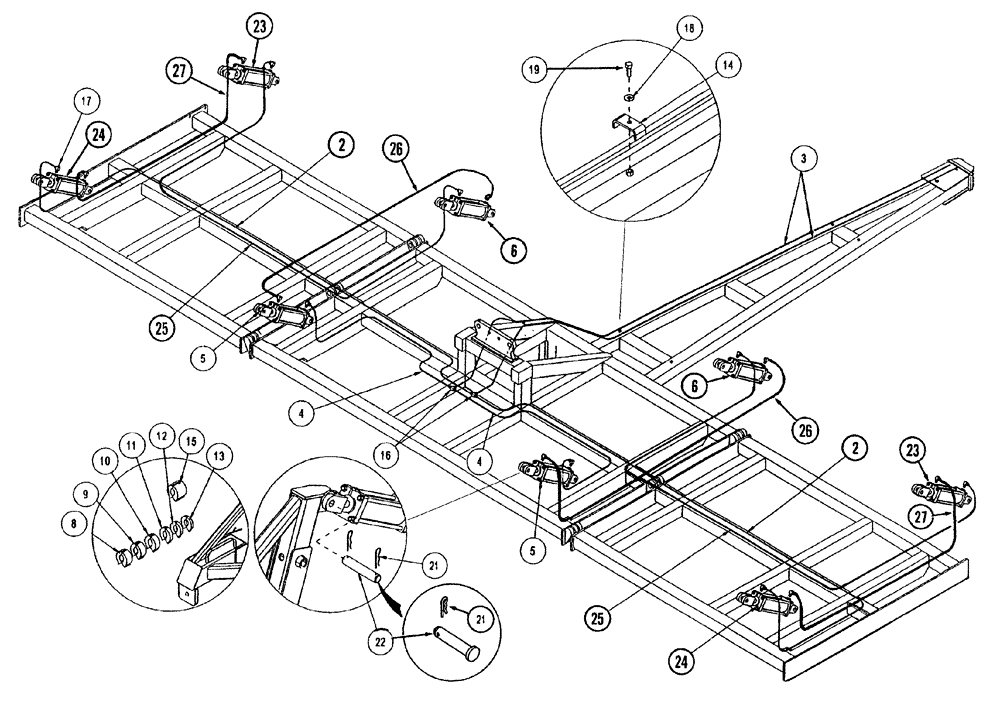

Запчасти Case IH NFX (8-04) - HYDRAULIC DEPTH CONTROL SYSTEM (08) - HYDRAULICS

2

350941A1

HOSE ASSY.

5029 mm (198 inch) long, 9.5 mm (3/8 inch) I.D. (used on all 3 rank drills) -8JICFSW both

2шт.

2

350940A1

HOSE ASSY.

6553 mm (258 inch) long, 9.5 mm (3/8 inch) I.D. (used on all 4 rank drills) -8JICFSW both

2шт.

3

1032440

HYDRAULIC HOSE,0.38" ID x 240.00"

(Used on all 3 rank drills) - 8JICFS / -8NPTM

2шт.

3

1032790

HOSE

6858 mm (270 inch) long, 9.5 mm (3/8 inch) I.D. (used on all 4 rank drills) -8JICFSW / -8NPTM

2шт.

4

1032439

HYDRAULIC HOSE,0.38" ID x 80.00"

(Used on all 3 and 4 rank drills) - 8JICFSW both

2шт.

5

1026898

HYDRAULIC CYLINDER

102 mm (4 inch) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, parts list Fig. 8-14

2шт.

6

1026897

HYDRAULIC CYLINDER

95 mm (3-3/4 inch) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, parts list Fig. 8-16

2шт.

7

1025810

KIT

KIT depth stop, cylinder, Includes Ref: 8-13

8шт.

8

350701A1

STOP

depth, 1-7/16 inch, blue

1шт.

9

350705A1

STOP

depth, 1-1/2 inch, clear

2шт.

10

350702A1

STOP

depth, 1-1/4 inch, green

1шт.

11

350706A1

STOP

depth, 3/4 inch, yellow

2шт.

12

350703A1

STOP

depth, 5/8 inch, orange

1шт.

13

350704A1

STOP

depth, 1/2 inch, red

2шт.

14

1024284

CLAMP

hose

8шт.

15

350845A1

STOP

transport, 4 inch

4шт.

16

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

16шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

21

38-11224

PIN slotted spring, 3/16 x 1-1/2 inch (if used)

32шт.

21

38-11424

LOCK PIN,7/32" x 1 1/2", Slotted

(if used) 7/32" x 1 1/2", Slotted

16шт.

22

1923593C1

PIN

clevis, 1 inch (if used)

16шт.

22

312950A2

HEADED PIN,25.4mm OD x 89.8mm L

1 x 3-5/32 inch (if used)

16шт.

23

1026896

HYDRAULIC CYLINDER

89 mm (3-1/2 inch) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, parts list Fig. 8-18

2шт.

24

1026895

HYDRAULIC CYLINDER

83 mm (3-1/4 inch) I.D. x 203 mm (8 inch) stroke, Iowa Hydraulics, parts list Fig. 8-20

2шт.

25

1032441

HYDRAULIC HOSE,0.38" ID x 154.00"

(Used on all 3 and 4 rank drills) - 8JICFSW both

2шт.

26

350942A1

HOSE ASSY.

2896 mm (114 inch) long (used on 3 rank drills) -8JICFSW both

2шт.

26

350927A1

HOSE ASSY.

3658 mm (144 inch) long (used on 4 rank drills) -8JICFSW both

2шт.

27

350943A1

HOSE ASSY.

2286 mm (90 inch) long (used on 3 rank drills) -8JICFSW both

2шт.

27

350926A1

HOSE ASSY.

3048 mm (120 inch) long (used on 4 rank drills) -8JICFSW both

2шт.
