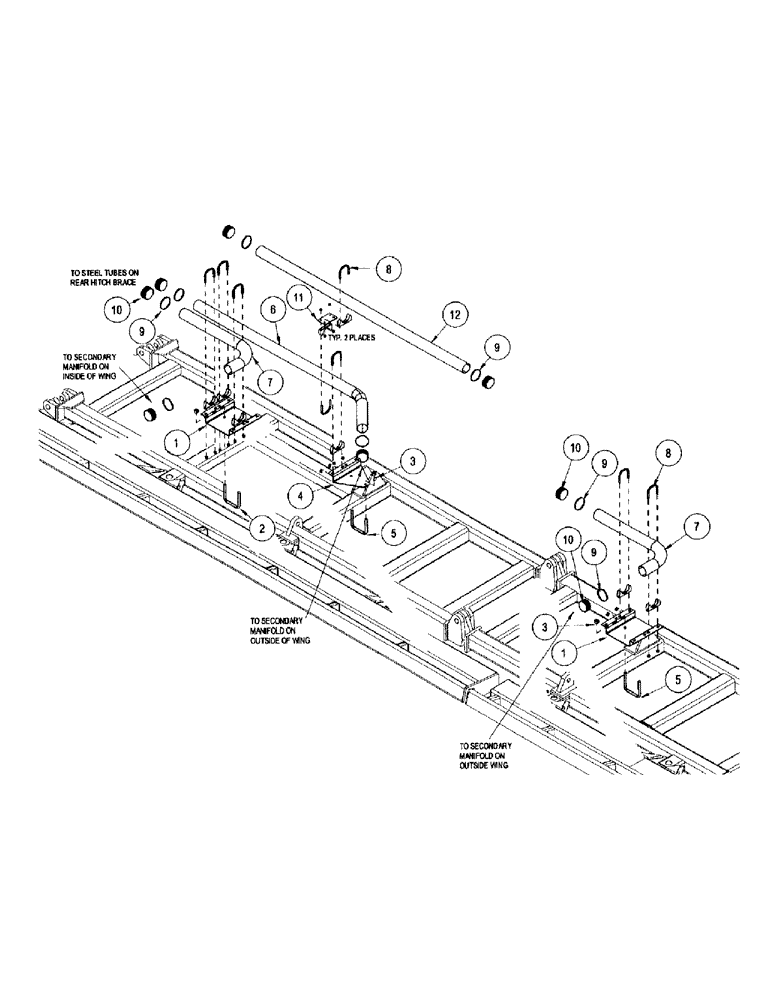

Запчасти Case IH CONCORD (B50) - MANIFOLD PARTS WING FRAME, 50 FOOT

1

306533A1

BRACKET

CLAMP

4шт.

2

1023564

U-BOLT

BOLT-U: .50 x 4.53 X 5.00 ZP

4шт.

3

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

16шт.

4

305990A1

CLAMP BRACKET

BRACKET - 2 clamp

2шт.

5

1032294

U-BOLT

BOLT-U: .50 x 4.53 x 4.00 ZP

4шт.

6

305998A1

TUBE,2.5" OD, 53, 12" Length

AIR 45 DEGREES

2шт.

7

305996A1

TUBE,23.212, 9.078 mm Length

AIR 90 DEGREES

4шт.

8

1013060

CLAMP

- muffler: 2.50O

24шт.

9

1012980

CLAMP

- hose: S.S. #44 2.31-3.25

16шт.

10

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

11

306715A1

PLATE

BOLTING

4шт.

12

305997A1

TUBE,2.5" OD, 67" Length

AIR

2шт.
