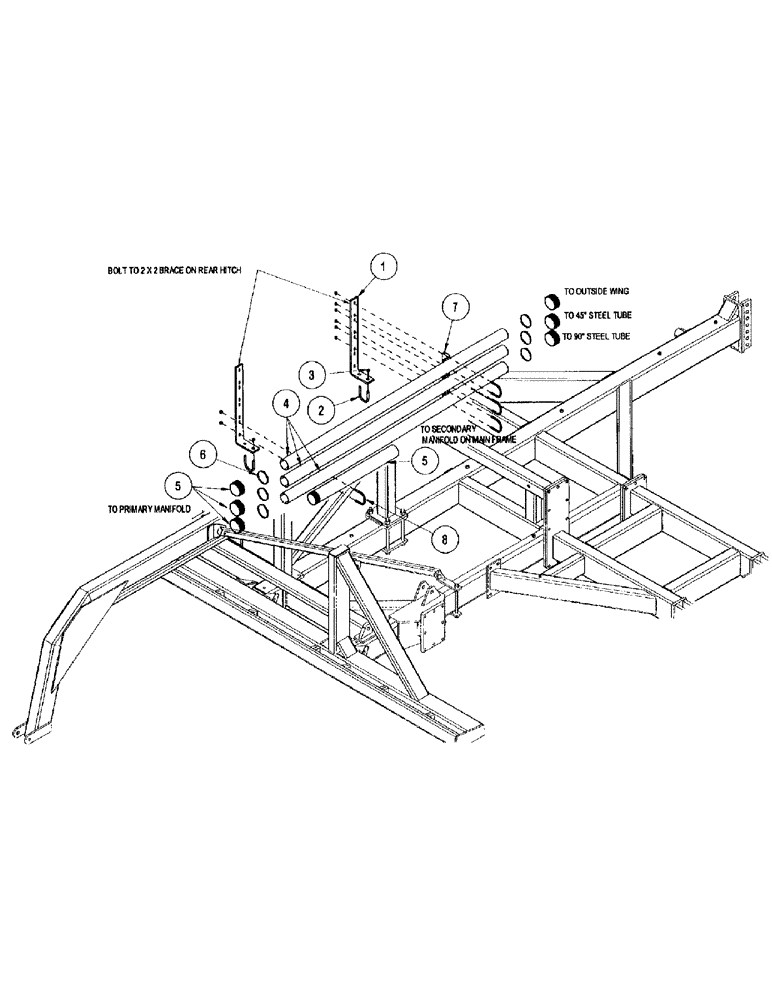

Запчасти Case IH CONCORD (B48) - MANIFOLD PARTS MAIN FRAME, 50 FOOT

1

290823A1

BRACKET

- 4 clamp

4шт.

2

1026189

U-BOLT

BOLT-U: .50 x 2.00 x 3.00 ZP

4шт.

3

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

8шт.

4

305997A1

TUBE,2.5" OD, 67" Length

AIR

6шт.

5

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

6

1012980

CLAMP

- hose: S.S. #44 2.31-3.25

8шт.

7

1013060

CLAMP

- muffler: 2.50O

12шт.

8

290824A1

U-BOLT,3/8" - 16 x 4.25", Gr 5

BOLT-U: .375 round

2шт.
