Запчасти Case IH CONCORD (B46) - SECONDARY TUBES AND STANDS, 40 FOOT

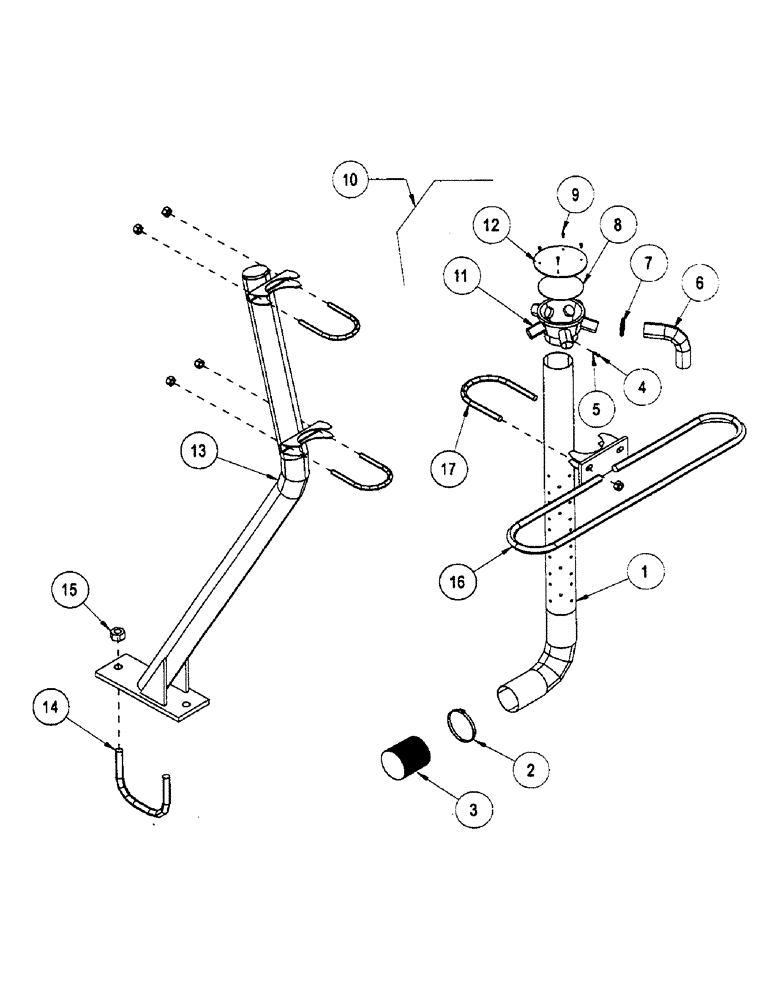

Схема запчастей Case IH CONCORD - (B46) - SECONDARY TUBES AND STANDS, 40 FOOT
3
11
10
9
1
5
14
6
12
16
4
13
17
15
7
8
2

Артикул

Название

Примечание

Количество

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

SECONDARY - tube dimpled short

1шт.

2

1012980

CLAMP

- hose: S.S. #44 2.31-3.25

1шт.

3

1032279

HOSE,2.50" ID

PVC-B 2.50" ID

1шт.

4

1013208

SET SCREW

SCREW - set: C-P .25 X 1.00 NC GR8

2шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

- jam: .25 NC GR2 ZP

4шт.

6

86993485

HOSE,1.00" ID

This is Used from the Header to the Boot. Must be Ordered in Multiples of 100 1.00" ID

1шт.

7

1026358

CLAMP

- hose: #16 0.81-1.50

1шт.

8

1022775

GASKET

CUSHION - manifold: .25 x 5.00

1шт.

9

1018047

BOLT

BOLT - hex: .25 x .63 NC GR5 ZP

4шт.

10

1012425

TUBE ASSY.

MANIFLD - cover: SCND 10PRT 1.00 , 80 RUN 6 PORT - 40'

4шт.

10

1013197

MANIFOLD

MANIFLD - cover: SCND 12PRT 1.00 , 80 RUN 6 PORT - 40'

2шт.

11

1012426

TUBE ASSY.

MANIFLD - tubes: SCND 10PRT 1.00 , 80 RUN 6 PORT - 40'

4шт.

11

1013201

TUBE ASSY.

MANIFLD - tubes: SCND 12 PRT 1.00 , 80 RUN 6 PORT - 40'

2шт.

12

1013038

COVER

- manifld: SCND 10 port , 80 RUN 6 PORT - 40'

4шт.

12

1013193

COVER

- manifld: SCND - 12 port , 80 RUN 6 PORT - 40'

2шт.

10

1013195

MANIFOLD

MANIFLD - cover: SCND 9PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

10

1014483

MANIFOLD VALVE

MANIFLD - cover: SCND 8PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

10

1015039

TUBE ASSY.

MANIFLD - cover: SCND 7PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

11

1013199

TUBE ASSY.

MANIFLD - tubes: SCND 9PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

11

1014485

TUBE ASSY.

MANIFLD - tubes: SCND 8PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

11

1015042

TUBE ASSY.

MANIFLD - tubes: SCND 7 PRT 1.00 , 48 RUN 6 PORT - 40'

2шт.

12

1013191

COVER

- manifld: SCND 9 port , 48 RUN 6 PORT - 40'

2шт.

12

1013193

COVER

- manifld: SCND 8 port , 48 RUN 6 PORT - 40'

2шт.

12

1013192

COVER

- manifld: SCND 7 port , 48 RUN 6 PORT - 40'

6шт.

10

1017148

MANIFOLD

MANIFLD - cover: SCND 6PRT 1.00 , 32 RUN 6 PORT - 40'

2шт.

10

1026323

TUBE ASSY.

MANIFLD - cover: SCND 5PRT 1.00 , 32 RUN 6 PORT - 40'

4шт.

11

1017916

TUBE ASSY.

MANIFLD - tubes: SCND 6PRT 1.00 , 32 RUN 6 PORT - 40'

2шт.

11

1023746

TUBE ASSY.

MANIFLD - tubes: SCND 5PRT 1.00 , 32 RUN 6 PORT - 40'

4шт.

12

1014419

COVER

- manifld: SCND 6 port , 32 RUN 6 PORT - 40'

2шт.

12

1014419

COVER

- manifld: SCND 5 port , 32 RUN 6 PORT - 40'

4шт.

13

290802A1

STAND

/W MANIFOLD , 32 RUN 6 PORT - 40'

1шт.

14

1030623

U-BOLT

BOLT-U .50X6.06X5.00 ID , 32 RUN 6 PORT - 40'

1шт.

15

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP , 32 RUN 6 PORT - 40'

2шт.

16

290815A1

RETAINER

/W , 32 RUN 6 PORT - 40'

1шт.

17

1013060

CLAMP

MUFFLER: 2.50 , 32 RUN 6 PORT - 40'

1шт.

Выбрано товаров: 35
