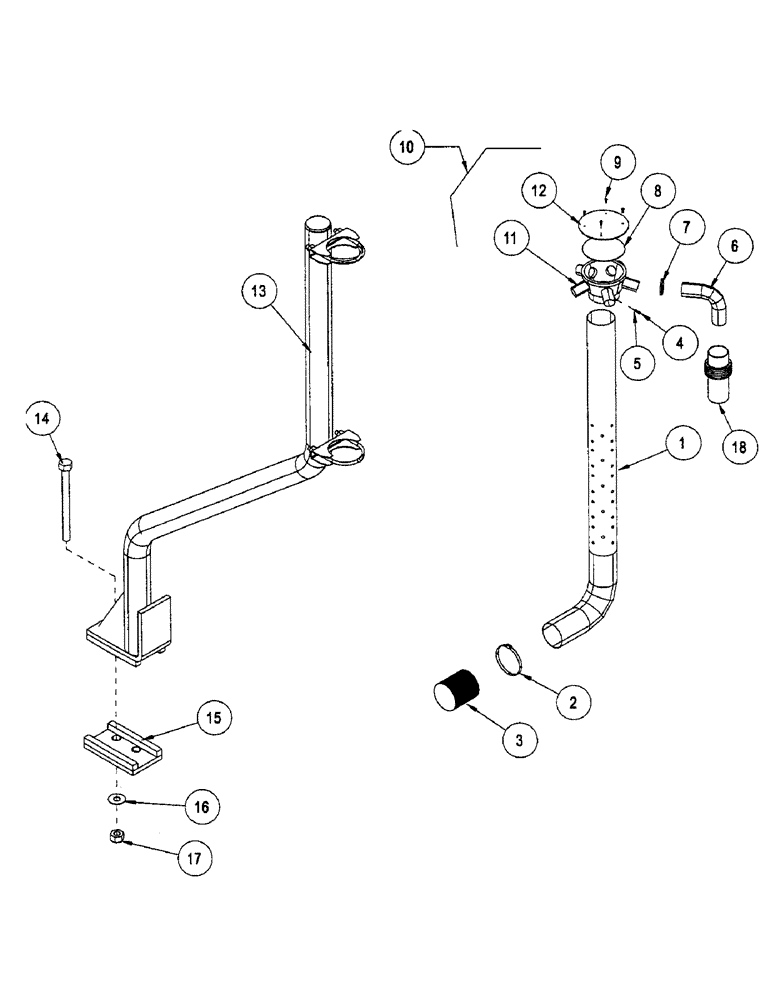

Запчасти Case IH CONCORD (B42) - SECONDARY MANIFOLD TUBES AND STANDS, 40 FOOT, SERIAL NUMBER CBK0015002 - CBK0015028

1

1026067

TUBE,63.5 mm Diameter, 590.55 mm Length

SECONDARY - tube dimpled short

1шт.

2

1013236

CLAMP

- hose: bundle

1шт.

3

1012984

HOSE,2.50" ID

- bulk: PVC-W 2.50" ID

1шт.

4

0103208

SCREW - set: C-P .25 x 1.00 NC GR8

2шт.

5

1013518

LOCK NUT

NUT - jam: .25 NC GR2 ZP

2шт.

6

1029296

HOSE,25.70 mm ID BULK

- EVA-B 25.70 mm ID BULK

1шт.

7

1026358

CLAMP

- hose: #16 0.81-1.50

7шт.

8

1022775

GASKET

CUSHION - manifold .25 x 6.50

1шт.

9

1018047

BOLT

BOLT - hex: .25 x .63 NC GR5 ZP

4шт.

10

1013198

COVER

MANIFOLD - cover: SCND 13 port 1.00 (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 80 RUN 6

4шт.

1014523

COVER

MANIFOLD - cover: SCND 14 port 1.00 (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 80 RUN 6

2шт.

11

1013202

COVER

MANIFOLD - tubes: SCND 13 port , FRONT AND REAR TOW SINGLE 80 RUN 6

1шт.

1015044

COVER

MANIFOLD - tubes: SCND 14 port , FRONT AND REAR TOW SINGLE 80 RUN 6

1шт.

12

1013194

COVER

- 13 port , FRONT AND REAR TOW SINGLE 80 RUN 6

1шт.

1014419

COVER

- 14 port , FRONT AND REAR TOW SINGLE 80 RUN 6

1шт.

10

1013196

TUBE ASSY.

MANIFOLD - cover: SCND 11 port (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 64 RUN 6

4шт.

1012425

TUBE ASSY.

MANIFOLD - cover: SCND 10 port (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 64 RUN 6

2шт.

11

1013200

TUBE ASSY.

MANIFOLD - tubes: SCND 11 port , FRONT AND REAR TOW SINGLE 64 RUN 6

1шт.

1012426

TUBE ASSY.

MANIFOLD - tubes: SCND 10 port , FRONT AND REAR TOW SINGLE 64 RUN 6

1шт.

12

1013192

COVER

- 11 port , FRONT AND REAR TOW SINGLE 64 RUN 6

1шт.

1013038

COVER

- 10 port , FRONT AND REAR TOW SINGLE 64 RUN 6

1шт.

10

1013197

MANIFOLD

- cover: SCND 12 port (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 48 RUN 6

1шт.

11

1013201

TUBE ASSY.

MANIFOLD - tubes: SCND 12 port , FRONT AND REAR TOW SINGLE 48 RUN 6

1шт.

12

1013193

COVER

12 port , FRONT AND REAR TOW SINGLE 48 RUN 6

1шт.

10

1014483

MANIFOLD VALVE

MANIFOLD - cover: SCND 8 port (Incl. 4, 5, 11, 12) , FRONT AND REAR TOW SINGLE 32 RUN 6

1шт.

11

1014485

TUBE ASSY.

MANIFOLD - tubes: SCND 8 port , FRONT AND REAR TOW SINGLE 32 RUN 6

1шт.

12

1013193

COVER

- 12 port , FRONT AND REAR TOW SINGLE 32 RUN 6

1шт.

13

1033240

STAND

WLMDT - manifold stand , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

1шт.

14

1020074

BOLT

BOLT - hex: .50 x 6.50 NC GR5 ZP , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

2шт.

15

1033189

PLATE

WLDMT - bolting plate , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

1шт.

16

1011584

WASHER

- flat: SAE .50 ZP , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

2шт.

17

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

2шт.

18

1033400

TUBE

- seed #1402055-0 , FRONT AND REAR TOW SINGLE 32 RUN 6-PORT

1шт.
