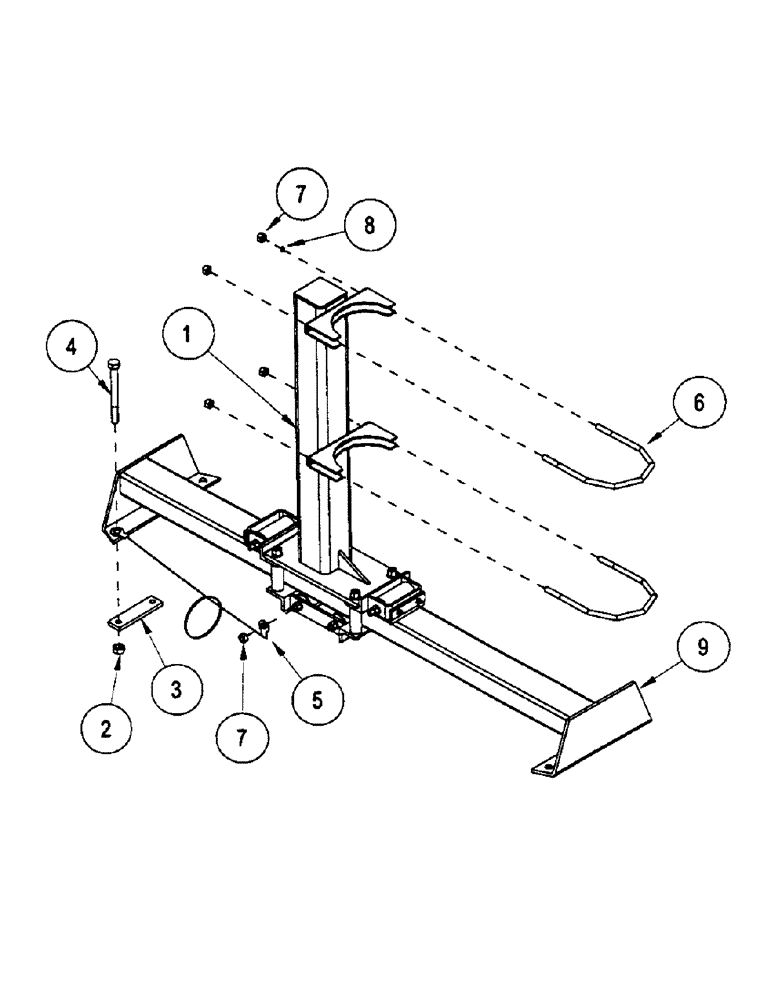

Запчасти Case IH CONCORD (B39) - PRIMARY MANIFOLD STAND REAR TOW

1

1027644

RAIL

ASSY - manifold stand & rail: LH (use 209107A1)

1шт.

2

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

4шт.

3

1021679

LARGE PLATE

PLATE - backup

2шт.

4

1027720

BOLT

- hex: .50 x 7.50 NC GR5 ZP

4шт.

5

1030788

CABLE

- ground

1шт.

6

1033298

U-BOLT

BOLT UR .375 5.188W 3.657D

2шт.

7

280136

NUT,3/8"-16, G8

4шт.

8

1011586

LOCK WASHER

- lock: .38 ZP

4шт.

9

1027631

MOUNTING PARTS

WLDMT MANIFOLD RAIL MOUNT

1шт.
