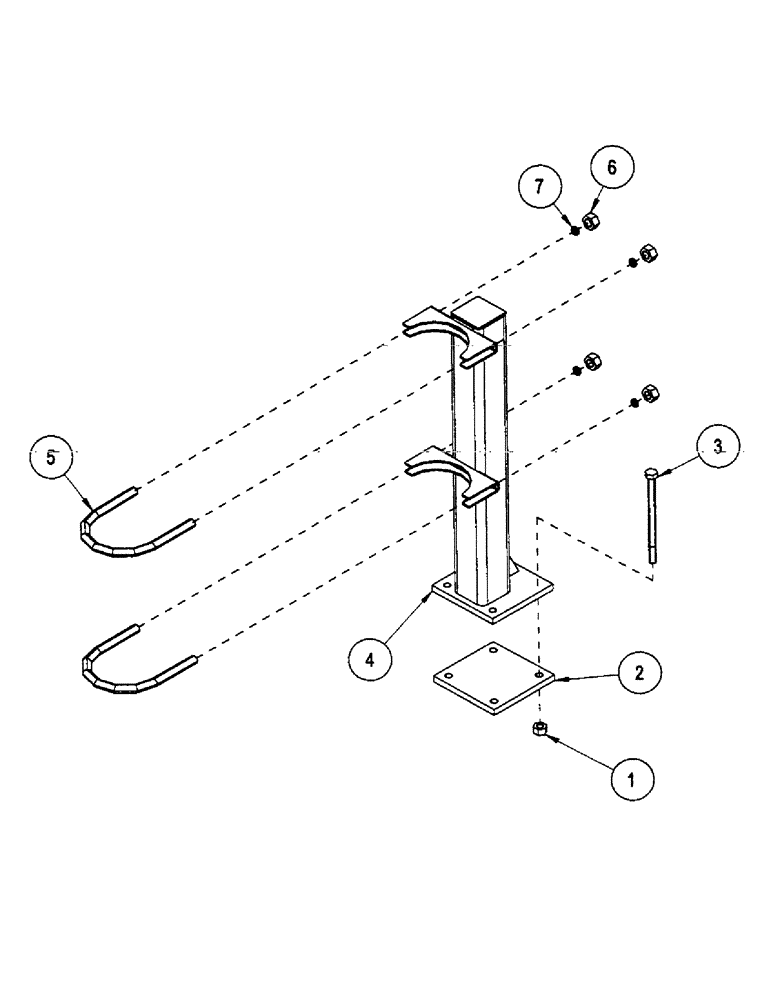

Запчасти Case IH CONCORD (B38) - PRIMARY MANIFOLD STAND FRONT TOW

1

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

4шт.

2

1026854

LARGE PLATE

PLATE - bolting

1шт.

3

1011669

BOLT

- hex: .50 x 6.00 NC GR5 ZP

4шт.

4

290087A1

MANIFOLD

WLDMT - manifold stand

1шт.

5

1033298

U-BOLT

BOLT UR .375 5.188W 3.657D

2шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

1011586

LOCK WASHER

- lock .38 ZP

4шт.
