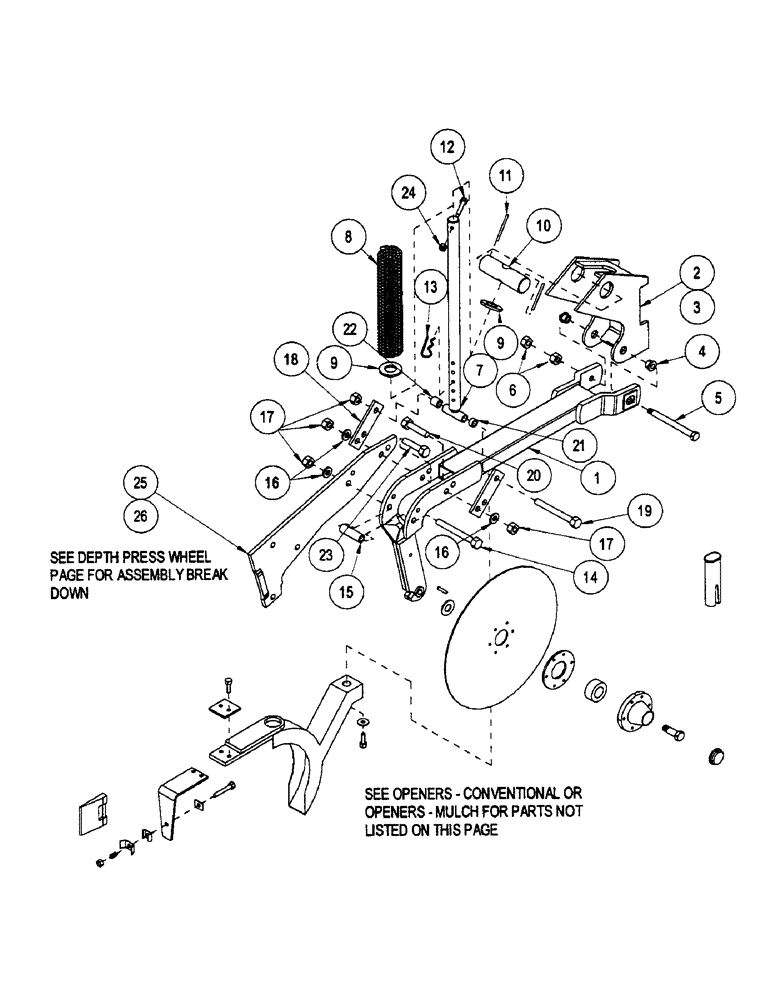

Запчасти Case IH CONCORD (B36) - OPENERS, LOW PROFILE

1

1033327

DRAWBAR

/W MULCH SHORT (not shown)

1шт.

1

1033329

BAR

DRAWBAR/W CONV SHORT (shown)

1шт.

2

306686A1

MOUNTING PARTS

ASSEMBLY MOUNT, low profile

1шт.

3

306685A1

MOUNT LOW PROFILE/W

1шт.

4

1025881

BRONZE BUSHING,12.72mm ID x 23.8mm OD x 12.7mm L

BUSHING, flange

2шт.

5

1033335

BOLT

BOLT, special

1шт.

6

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

7

1033314

ROD

WLDMT - rod

1шт.

8

1026500

SPRING

1шт.

9

495-211106

WASHER, 1.062

2шт.

10

1029528

BAR

PIVOT BAR

1шт.

11

438-11240

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

2шт.

12

1016828

BOLT - hex: .25 x 1.50

1шт.

13

1970738C1

PIN QA COTTER

1шт.

14

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex: .50 x 4.5 NC

1шт.

15

1263794C1

SPACER

- pipe

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

18

306682A1

BRACKET

PIVOT

2шт.

19

1011618

BOLT

- hex: .50 x 5.0 NC

1шт.

20

1011606

BOLT

- hex: .50 x 1.25

2шт.

21

306725A1

SPACER

1шт.

22

306726A1

SPACER

LONG

1шт.

23

1011607

BOLT

BOLT - hex: .50 x 1.50

2шт.

24

1013240

LOCK NUT,1/4"-20, GB

NUT - nylock: .25

1шт.

25

306738A1

PLATE

SUPPORT, LP opener

1шт.

26

306739A1

LAND WHEEL

P/WHL & ADJ ASSY, LP opener

1шт.
